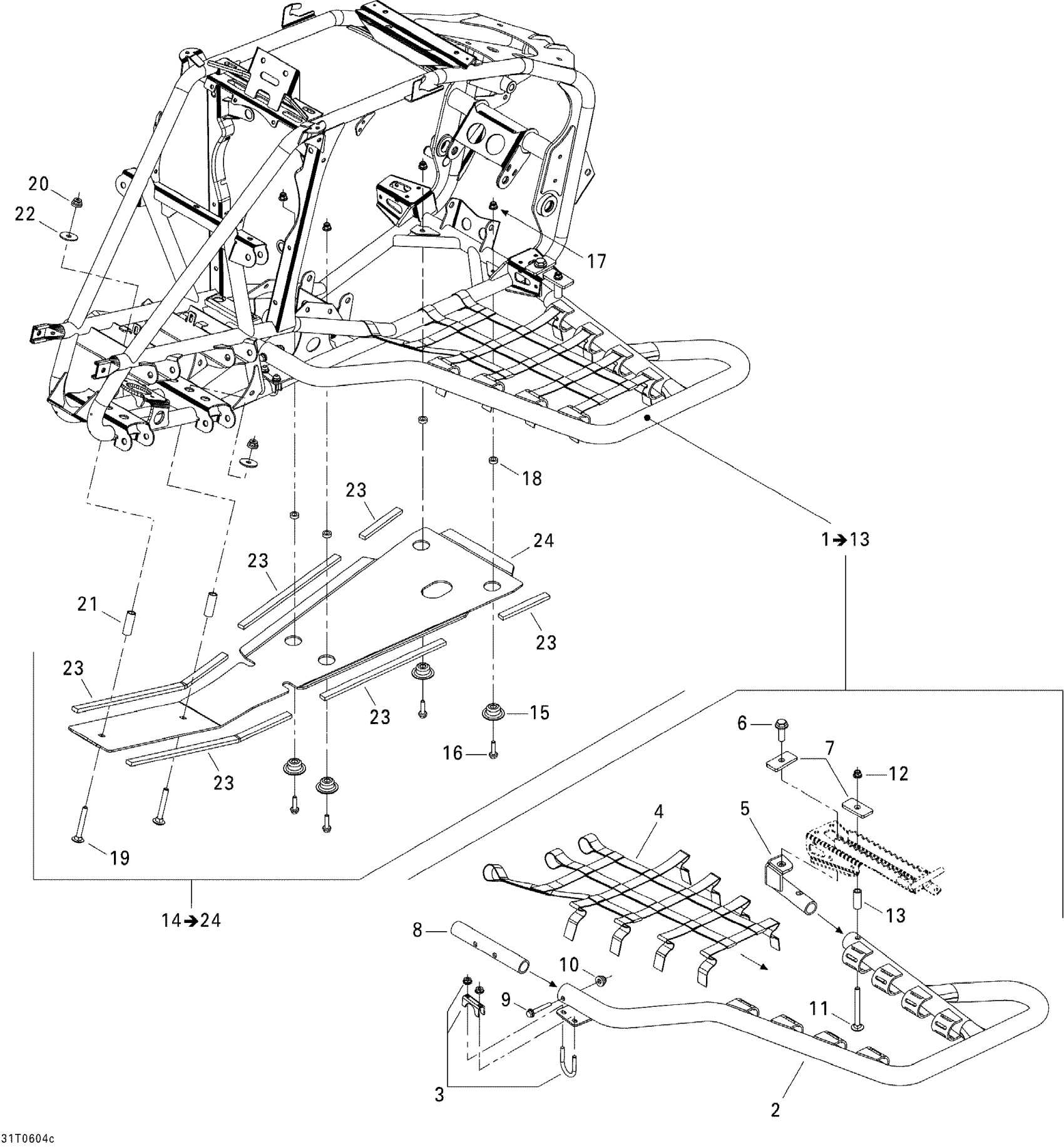

Can-Am DS 650 X, 2006 09- Body And Accessories Diagram

#

Description
Price

1

Nerf Bar Kit | Includes 14 to 26

705001165

Unavailable

2

LH Nerf Bar

705001135

Unavailable

2

RH NERF BAR - Call your local BRP dealership

705001134

Unavailable

3

U-bolt Ass'y

705001136

Unavailable

4

RH NET - Call your local BRP dealership

705001137

Unavailable

4

LH NET - Call your local BRP dealership

705001138

Unavailable

5

RH Support

705001139

Unavailable

5

LH SUPPORT - Call your local BRP dealership

705001140

Unavailable

6

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

7

PLATE - Call your local BRP dealership

705001141

Unavailable

8

SUPPORT - Call your local BRP dealership

705001142

Unavailable

9

Hex. Flange Screw M6 X 45

207664544

$1.46

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

M8 X 80 CARRIAGE BOLT - Call your local BRP dealership

207788044

Unavailable

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

BUSHING - Call your local BRP dealership

503189064

Unavailable

14

Protector Kit | Includes 27 to 36

705001166

Unavailable

15

CUP - Call your local BRP dealership

705200533

Unavailable

16

Hex. Flange Screw M6 X 25

207662544

$0.64

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Bushing

293900028

$12.71

19

Carriage Bolt M8 X 60

207786044

$14.21

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Bushing

293900051

Unavailable

22

Flat Washer

224081301

$0.88

23

Neoprene Seal (1PAC=3M)

219704364

$27.49

24

Motor Skid

705001133

Unavailable
