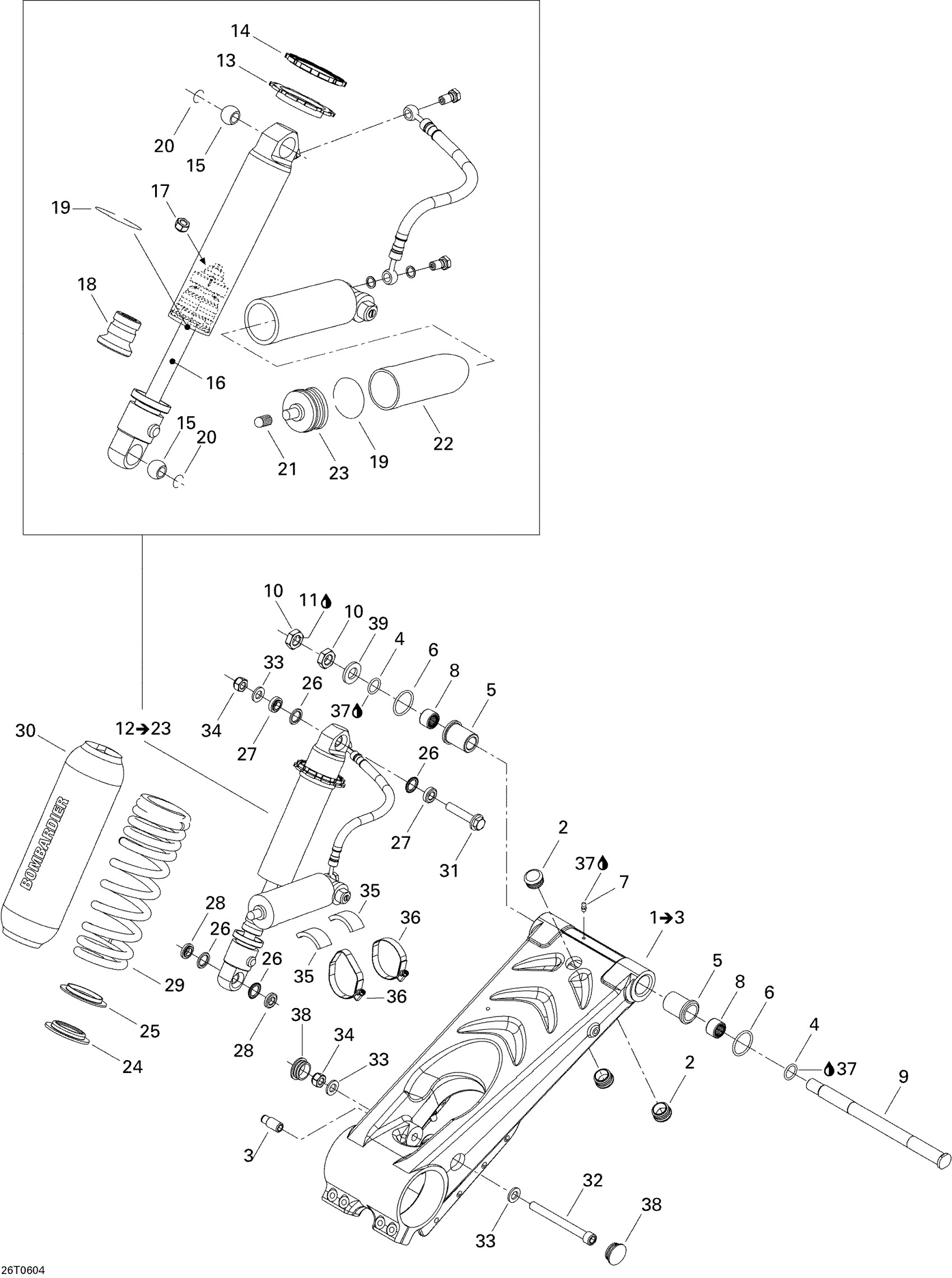

Can-Am DS 650 X, 2006 08- Rear Suspension Diagram

#

Description
Price

1

SWING ARM ASS'Y - Call your local BRP dealership | Includes 1 to 3

706000252

Unavailable

2

PLUG 1-1/8 - Call your local BRP dealership

706200309

Unavailable

3

GUIDE SUPPORT - Call your local BRP dealership

706000253

Unavailable

4

O-RING - Call your local BRP dealership

293300074

Unavailable

5

Cushion

706000284

Unavailable

6

O-Ring

293300068

$7.65

7

Grease Fitting

408200700

$3.49

8

NEEDLE BEARING - Call your local BRP dealership

293350050

Unavailable

9

PIVOT AXLE - Call your local BRP dealership

706000286

Unavailable

10

HEX. JAM NUT M18 - Call your local BRP dealership

232180411

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

Rear Shock Ass'y | Includes 12 to 23

706000231

Unavailable

13

SHOCK SPRING STOPPER - Call your local BRP dealership

706000062

Unavailable

14

STOPPER RING - Call your local BRP dealership

706000082

Unavailable

15

Ball Joint

706000105

Unavailable

16

Piston Rod

706000230

Unavailable

17

U-NUT - Call your local BRP dealership

706000188

Unavailable

18

BUMPER PAD - Call your local BRP dealership

706000189

Unavailable

19

CIRCLIP 46 MM - Call your local BRP dealership

706000190

Unavailable

20

CIRCLIP 25.3 MM - Call your local BRP dealership

706000191

Unavailable

21

Valve Cap

706000192

Unavailable

22

Reservoir

706000193

Unavailable

23

Guide

706000194

Unavailable

24

SPRING STOPPER - Call your local BRP dealership

706000061

Unavailable

25

SPRING GUIDE - Call your local BRP dealership

706000060

Unavailable

26

SEAL - Call your local BRP dealership

293250111

Unavailable

27

CUSHION - Call your local BRP dealership

706000103

Unavailable

28

INFERIOR CUSHION - Call your local BRP dealership

706000247

Unavailable

29

Spring, Red | DS 650 X

706000292

Unavailable

30

PROTECTOR - Call your local BRP dealership | DS 650 X

706000166

Unavailable

31

SHOCK SCREW - Call your local BRP dealership

250000095

Unavailable

32

SOCKET HEAD SCREW M12 X 120 - Call your local BRP dealership

231022087

Unavailable

33

Flat Washer 12 mm

234021410

$0.72

34

Elastic Stop Nut M12

232521416

$1.69

35

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

36

Norma Clamp

293650079

$11.60

37

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

38

Plug 1-1/4"

706200308

$8.59

39

WASHER - Call your local BRP dealership

250200019

Unavailable
