Description

Price

1

RH Upper Arm

706200152

Unavailable

RH UPPER ARM - Call your local BRP dealership

706200187

Unavailable

2

Ball Joint

706200653

$44.99

3

Circlip 32 mm

293370009

$1.39

4

Bushing

706200181

$3.14

5

LH Upper Arm

706200155

Unavailable

LH upper arm

706200193

Unavailable

6

Ball Joint

706200653

$44.99

7

Circlip 32 mm

293370009

$1.39

8

Bushing

706200181

$3.14

9

Hex. Flange Screw M10 X 70

207607046

$2.96

10

Hex. Flange Elastic Nut M10

233201436

$2.11

11

RH Lower Arm (7431 @ 7434)

706200159

Unavailable

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200196

Unavailable

12

Bushing

706200181

$3.14

13

LH Lower Arm (7431 @ 7434)

706200161

Unavailable

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200200

Unavailable

14

Bushing

706200181

$3.14

15

Front Shock | Includes 10 - 12.

706200137

Unavailable

16

FRONT SPRING - Call your local BRP dealership

706200006

Unavailable

17

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

18

Spring Stopper

706200881

$12.99

19

Spring seat

706000007

Unavailable

20

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

21

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

22

Hex. Flange Elastic Nut M10

233201414

$1.58

23

Arm Protector R.H

706200007

Unavailable

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

24

Hex. Flange Screw M6 X 16

207661644

$0.74

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Arm Protector L.H

706200009

Unavailable

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

27

Hex. Castellated Nut M12

232221414

$3.17

28

Cotter Pin

211400017

$0.33

29

Ball Joint

706200653

$44.99

30

Circlip 32 mm

293370009

$1.39

31

Hardened Washer

503175400

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

33

CUSHION - Call your local BRP dealership

706200185

Unavailable

34

BUSHING - Call your local BRP dealership

706200186

Unavailable

35

Grease Fitting

408200700

$3.49

36

Sleeve

706201587

$3.79

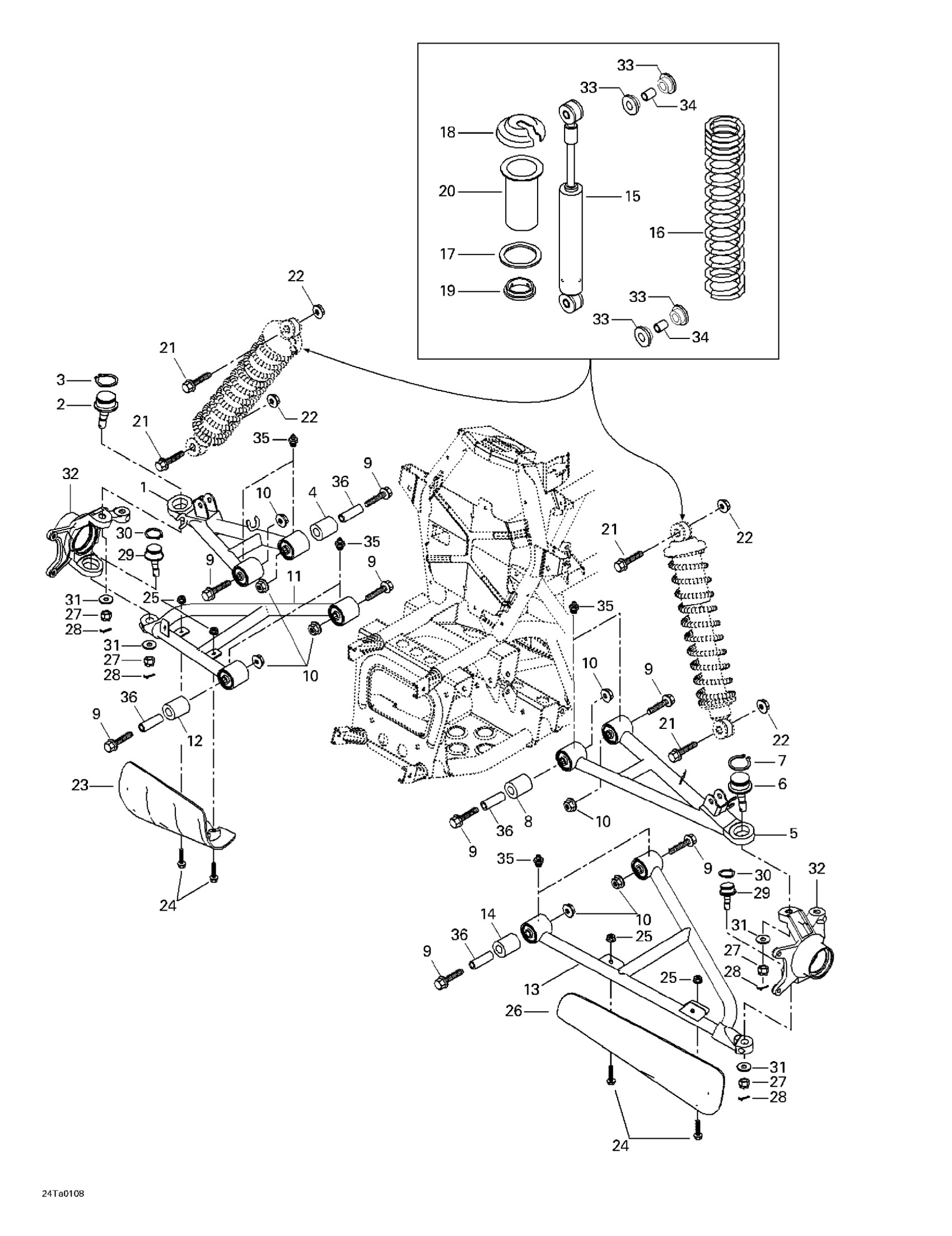

Can-Am Traxter XL, 7448/7489, 2001 07- Front Suspension Diagram

RH Upper Arm

RH UPPER ARM - Call your local BRP dealership

Ball Joint

Circlip 32 mm

Bushing

LH Upper Arm

LH upper arm

Ball Joint

Circlip 32 mm

Bushing

Hex. Flange Screw M10 X 70

Hex. Flange Elastic Nut M10

RH Lower Arm (7431 @ 7434)

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

Bushing

LH Lower Arm (7431 @ 7434)

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

Bushing

Front Shock | Includes 10 - 12.

FRONT SPRING - Call your local BRP dealership

SPRING SEAT - Call your local BRP dealership

Spring Stopper

Spring seat

PROTECTOR - Call your local BRP dealership

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

Hex. Flange Elastic Nut M10

Arm Protector R.H

RH ARM PROTECTOR - Call your local BRP dealership

Hex. Flange Screw M6 X 16

Hex. Flange Elastic Nut M6 x 1.0

Arm Protector L.H

LH ARM PROTECTOR - Call your local BRP dealership

Hex. Castellated Nut M12

Cotter Pin

Ball Joint

Circlip 32 mm

Hardened Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

CUSHION - Call your local BRP dealership

BUSHING - Call your local BRP dealership

Grease Fitting

Sleeve
