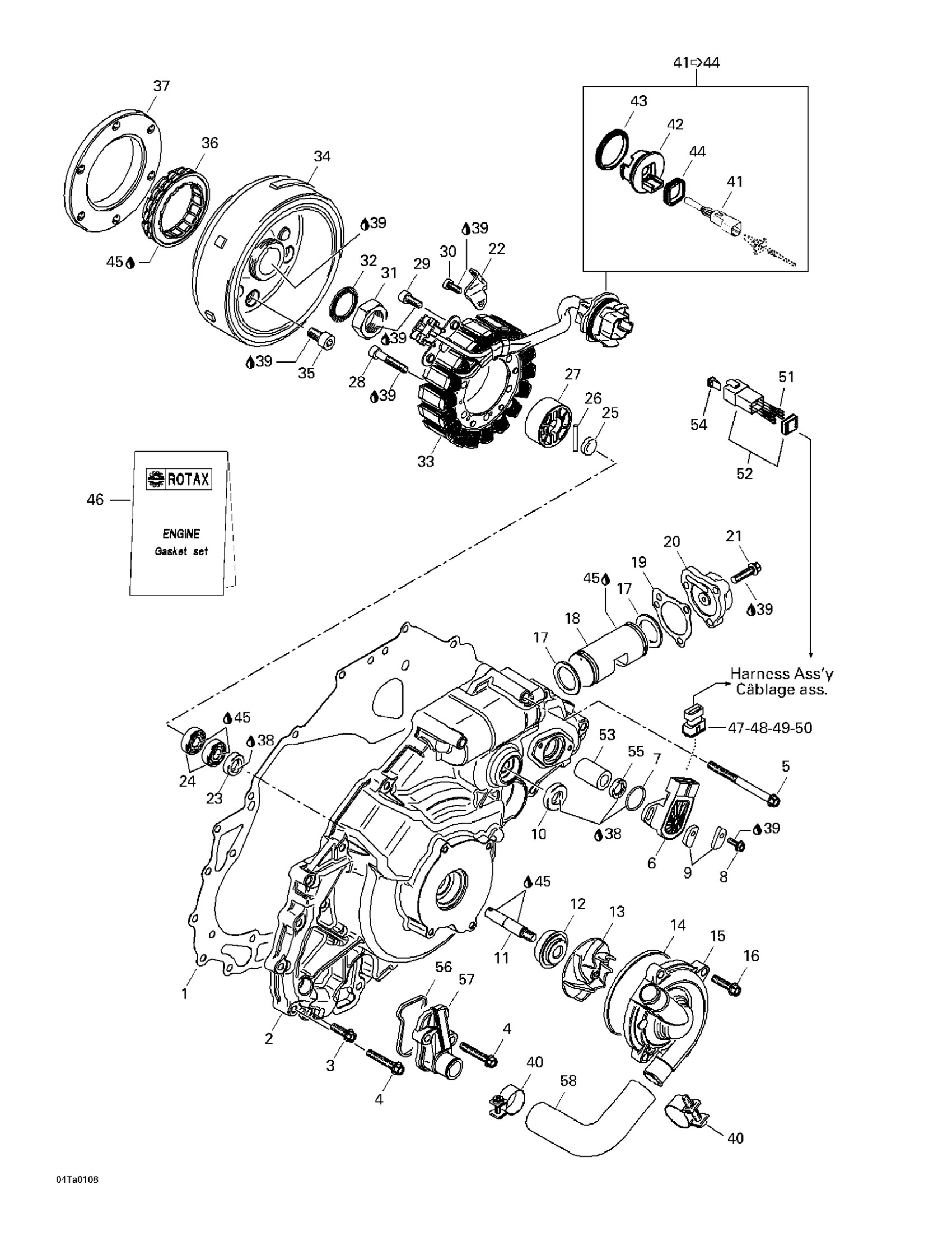

Can-Am Traxter XL, 7448/7489, 2001 03- Ignition And Water Pump Diagram

#

Description
Price

1

Ignition Cover Gasket

711650603

Unavailable

2

Ignition Cover

711211821

Unavailable

3

Hex. Flange Screw M6 x 20

711241861

Unavailable

4

Hex. Flange Screw M6 x 35

711941126

Unavailable

5

Hex. Flange Screw M6 x 70

711940576

Unavailable

6

POTENTIOMETER, TRANSMISSION - Call your local BRP dealership | Item 7 Not included

420265611

$134.99

7

O Ring

711931390

Unavailable

8

SOCKET HEAD SCREW M4 X 12 - Call your local BRP dealership

420440291

Unavailable

9

Reinforcement

711224630

Unavailable

10

OIL SEAL - Call your local BRP dealership

420950400

Unavailable

11

Water Pump Shaft

711220560

Unavailable

12

Rotary Seal

420650370

$43.49

13

Water Impeller

711222540

Unavailable

14

Rubber Ring

711650570

Unavailable

15

Water Pump Housing

711222550

Unavailable

16

Hex. Screw M6 x 25

711241911

Unavailable

17

K Grooved Ring

711650660

Unavailable

18

Hydraulic Piston

711257140

Unavailable

19

Hydraulic Cover Gasket

711650640

Unavailable

20

Hydraulic Cover

711211950

Unavailable

21

Hex. Screw M6 x 25

711241911

Unavailable

22

Cable Clamp

711251180

Unavailable

23

Oil Seal

711250080

Unavailable

24

Ball Bearing

711632170

Unavailable

25

Distance Sleeve

711247030

Unavailable

26

Needle Pin

711932885

Unavailable

27

Pawl

711659190

Unavailable

28

Hex. Flange Screw M6 x 35

711941126

Unavailable

29

Hex. Flange Screw M6 x 16

711241751

Unavailable

30

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

31

Nut M22

711242875

Unavailable

32

Washer 22 mm

711245875

Unavailable

33

Magneto Ass'y | Includes 38 - 42.

711296107

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

SOCKET HEAD SCREW M8 X 16 - Call your local BRP dealership

205081644

Unavailable

36

Sprag Clutch

420659117

$349.99

37

Clutch Sprag Housing

420659129

$144.99

38

Dow Corning 111, 150 g

413707000

$59.99

39

Loctite 243, 10 ml

293800060

$21.49

40

Gear Clamp

711251222

Unavailable

41

Adaptor Ass'y | Includes 3 to 7

707000031

Unavailable

41

Male Terminal Housing, 6 Circuits

710001539

$19.99

42

Adaptor

270000138

Unavailable

43

Gasket

293300033

Unavailable

44

Gasket

293200055`

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Gasket Set Engine

711296372

Unavailable

47

Female Terminal

710000051

Unavailable

48

WIRE SEAL - Call your local BRP dealership

710000050

Unavailable

49

Cap

710000049

Unavailable

50

Female Terminal Housing, 4 Circ.

710000032

Unavailable

51

Female Terminal

278000632

$2.09

52

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

53

Spacer

711847485

Unavailable

54

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

55

Oil Seal

711230870

Unavailable

56

Sealing Ring

711650940

Unavailable

57

Inlet Fitting

711222620

Unavailable

58

Profile Tube

711222630

Unavailable
