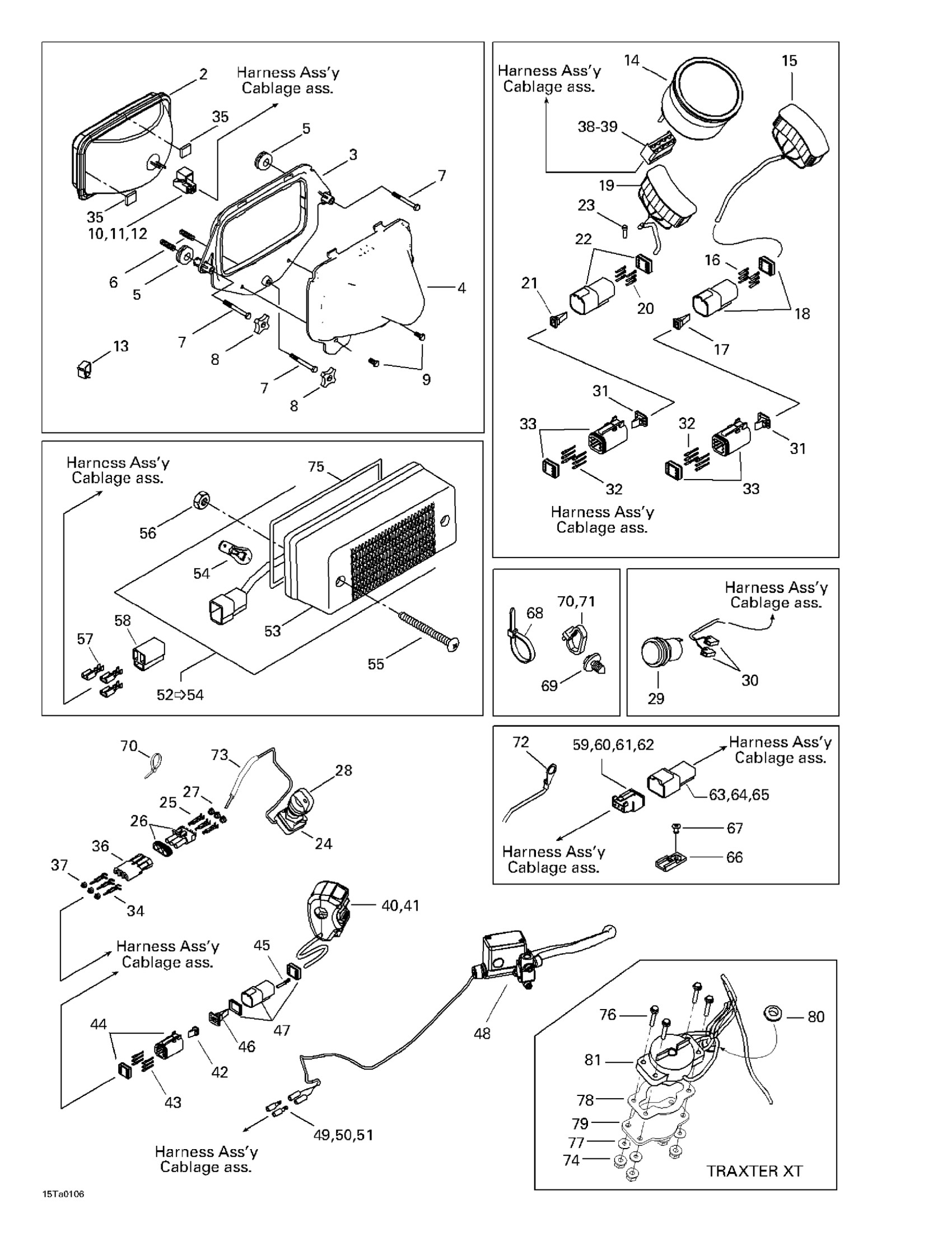

Can-Am Traxter XT, 7467/7468/7472/7481, 2001 10- Main Harness And Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y (Not Shown) | (7459-7460-7467-7468-7472-7481)

710000199

Unavailable

1

Harness Ass'y (Not Shown)

710000105

Unavailable

2

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

3

Headlamp Support

705000182

Unavailable

4

Protector

705000023

Unavailable

5

Grommet

709000582

$4.69

6

Spring

517168600

$7.39

7

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

8

Handle

572106600

$10.33

9

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

10

Female Terminal

710000027

Unavailable

11

Female Lock, 2 Circuits

710000028

Unavailable

12

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

Unavailable

13

Clip

414227300

$1.67

14

Speedometer (MPH) (US)

710000021

Unavailable

14

Speedometer

710000198

Unavailable

15

RH Warning Lamp

710000007

Unavailable

16

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

17

Male Lock, 6 Circuits

409014600

Unavailable

18

Male Terminal Housing, 6 Circuits

409015200

Unavailable

19

LH Warning Lamp

710000008

Unavailable

20

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

21

Male Lock, 6 Circuits

409014600

Unavailable

22

Male Terminal Housing, 6 Circuits

409015200

Unavailable

23

PLUG - Call your local BRP dealership

515175303

Unavailable

24

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

25

Female Terminal

278000223

$3.19

26

Male Housing, 3 Circuits

278000273

$9.59

27

Wire Seal

278000218

$4.39

28

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

28

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

29

Outlet Power Kit, 12 Volts

861507200

$36.99

30

Female Terminal

710000038

$4.55

31

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

32

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

33

Female Terminal Housing (6 Circuits)

409015500

Unavailable

34

Male Terminal

409004300

$5.61

35

Rubber Pad

293830088

Unavailable

36

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

37

Wire Seal

278000218

$4.39

38

Female Terminal

710000036

Unavailable

39

Female Housing (8 Circuits)

710000035

Unavailable

40

Multi-Fonction Switch | Includes 25 to 29

710000015

Unavailable

41

BACK COVER - Call your local BRP dealership

710000173

Unavailable

42

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

43

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

44

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

45

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

46

Male Lock, 6 Circuits

409014600

Unavailable

47

Male Terminal Housing, 6 Circuits

409015200

Unavailable

48

FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600120

Unavailable

49

Insulated Sheath

278001007

$3.58

50

Insulated Sheath

278000770

$7.90

51

Female Terminal

710000082

$7.69

52

Tail Light Housing

710000102

Unavailable

53

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

54

Bulb

520000758

$9.10

55

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

56

Hex. Flange Elastic Nut M5

233251414

$1.04

57

Female Terminal

561503100

$2.41

58

Female Housing

409204300

Unavailable

59

PLUG - Call your local BRP dealership

515175303

Unavailable

60

Female Lock, 3 Circuits

515175248

Unavailable

61

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

62

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

63

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

64

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

65

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

66

Clip

270000141

$11.49

67

Pop Rivet 3/16"

390402400

$0.35

68

Tie Wrap 368 mm

293750008

$1.04

69

Mount Dart

293730040

$1.04

70

Tie Wrap 142 mm

293750002

$1.25

71

Tie-Rap 180 mm

414115200

$0.11

72

Open Barrel Terminal

278001392

$4.79

73

Protector Tube

710000171

Unavailable

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

75

GASKET - Call your local BRP dealership

710000129

Unavailable

76

Hex. Flange Screw M6 X 40

207664044

$2.22

77

Flat Washer

224061201

$1.37

78

Winch support | 7423/7424 (XT-Yellow/Jaune).

710000118

Unavailable

79

Rubber spacer | 7423/7424 (XT-Yellow/Jaune).

710000120

Unavailable

80

GROMMET - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

293720066

Unavailable

81

Winch Switch | 7423/7424 (XT-Yellow/Jaune).

710000116

Unavailable
