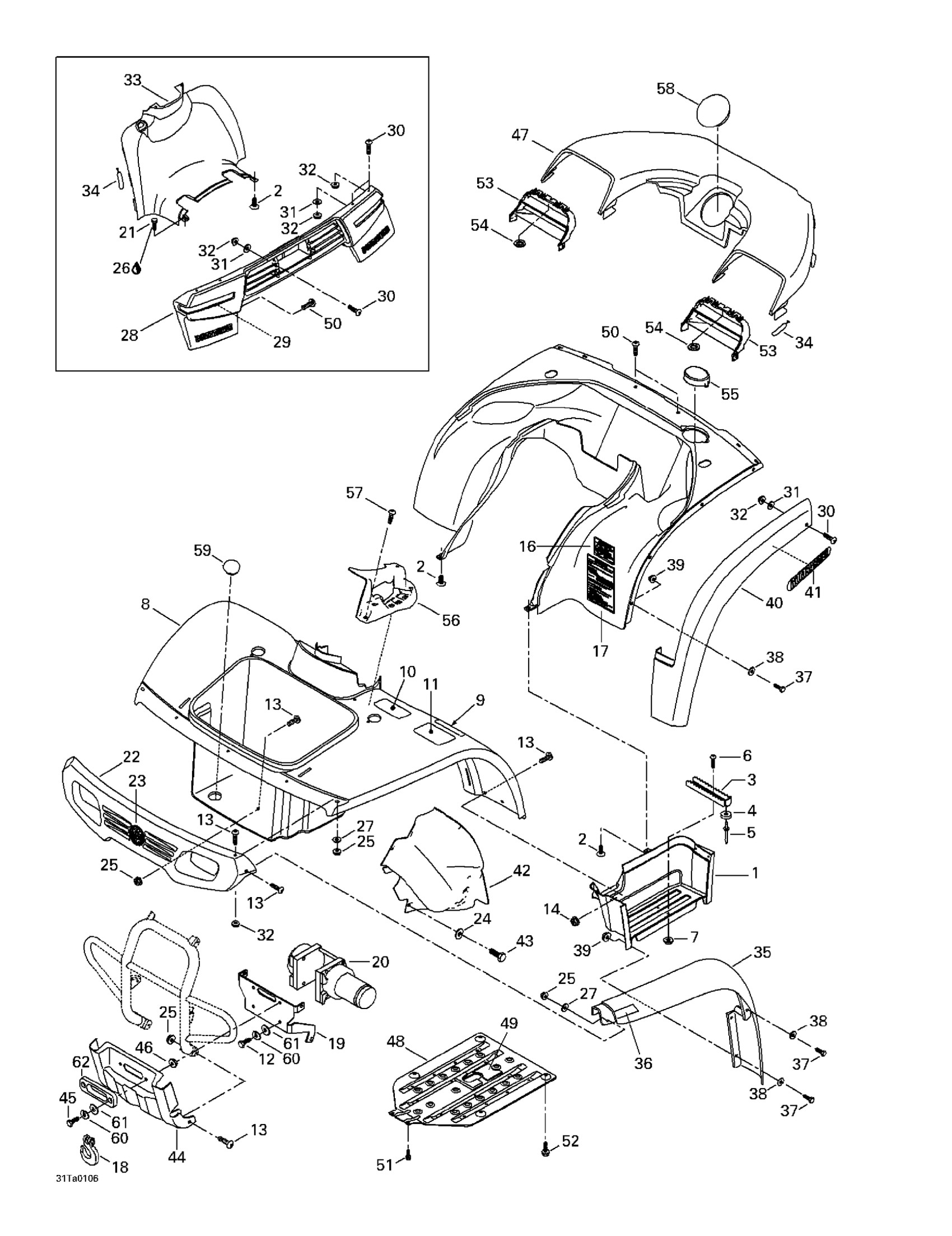

Can-Am Traxter XT, 7467/7468/7472/7481, 2001 09- Body And Accessories Diagram

#

Description
Price

1

RH Footboard, Black

705000017

Unavailable

LH FOOTBOARD, BLACK - Call your local BRP dealership

705000018

Unavailable

2

Black, Dart

293730011

$0.99

3

Foot Pegs | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705000279

Unavailable

Foot Peg (7431 @ 7434)

705000228

Unavailable

4

Rubber Stopper

415018100

$2.49

5

Pop Rivet 1/8", Black

293150189

$0.27

6

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Front Fender Kit (Red) | Includes 8 - 11. (Red 7459 - 7465) Traxter.

703500136

Unavailable

Front Fender Kit | (Green 7460 - 7466) Traxter.

703500138

Unavailable

Front Fender Kit (Green) | (XT Green 7467 - 7481) Traxter XT.

703500142

Unavailable

Front Fender Kit (Yellow) | (XT Yellow 7468 - 7472) Traxter XT.

703500140

Unavailable

9

Warning Label | Includes 9 - 10.

704900034

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

12

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

13

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

15

Rear Fender Kit (Red) (English)

703500113

Unavailable

Rear Fender Kit (Green) (English)

703500114

Unavailable

Rear Fender Kit (Yellow) (English) | (XT Yellow 7468 - 7472) Traxter XT.

703500139

Unavailable

Rear Fender Kit (Green) (English) | (XT Yellow 7467 - 7481) Traxter XT.

703500141

Unavailable

16

Warning Label Ass'y | (Rear Left Fender)

704900116

Unavailable

Warning Label (Passenger) (English) | (Rear Left Fender) 7423/7424 (XT-Yellow/Jaune).

704900119

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Winch Hook Kit

705014949

$24.99

19

Mouting plate | 7423/7424 (XT-Yellow/Jaune).

705000184

Unavailable

20

WINCH - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).

705000185

Unavailable

21

Hex. Flange Screw M6 X 12

207661244

$2.11

22

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

23

BRP Logo 68mm

516008739

$16.99

24

Flat Washer

224060201

$1.26

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

26

Loctite 243, 10 ml

293800060

$21.49

27

Flat Washer

224060201

$1.26

28

REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14

703500012

Unavailable

29

RH Rear Reflector

704900085

Unavailable

LH Rear Reflector

704900086

Unavailable

30

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

31

Flat Washer

224060201

$1.26

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

33

Tank Cover

705000010

Unavailable

34

Windshield Latch

570023800

$4.49

35

LH Front Mudguard Kit | Includes 35 - 36.

703500014

Unavailable

RH Front Mudguard Kit

703500015

Unavailable

36

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

Unavailable

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

37

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

38

Flat Washer

224060201

$1.26

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

LH Rear Mudguard | Includes 40 - 41.

703500016

Unavailable

RH Rear Mudguard

703500017

Unavailable

41

Bombardier label | 7400/7401. 7413/7414.

704900026

Unavailable

42

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

43

Hex. Self-threaded Screw 1/4"-20 X 3/4"

250000061

Unavailable

44

Front Protection Plate, black

705000135

Unavailable

45

Hex. Flange Screw M10 X 25

207602544

$1.69

Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT

250000042

Unavailable

46

Hex. Flange Elastic Nut M10

233201414

$1.58

47

Fender Cover (Red) | 7405/7406.

705000192

Unavailable

Fender cover | 7407/7408.

705000193

Unavailable

Fender Cover, Yellow | Yellow

705000179

Unavailable

48

Plate Ass'y | Includes 48 - 49.

705000196

Unavailable

49

Rubber Protector

293830084

Unavailable

50

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

52

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

53

LH Grill, Black

705000180

Unavailable

RH Grill, Black

705000181

Unavailable

54

PUSH NUT - Call your local BRP dealership

250100000

Unavailable

55

COVER, BLACK - Call your local BRP dealership

705000132

Unavailable

56

Lever Indicator

705000081

Unavailable

57

Tuflock Phillips Plastic Screw

414745900

$1.69

58

CAP - Call your local BRP dealership

705000207

Unavailable

59

Rubber Cover

570041600

Unavailable

60

Lock Washer 8 mm

234181401

$0.92

61

Flat Washer 8 mm

234081410

$0.83

62

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable
