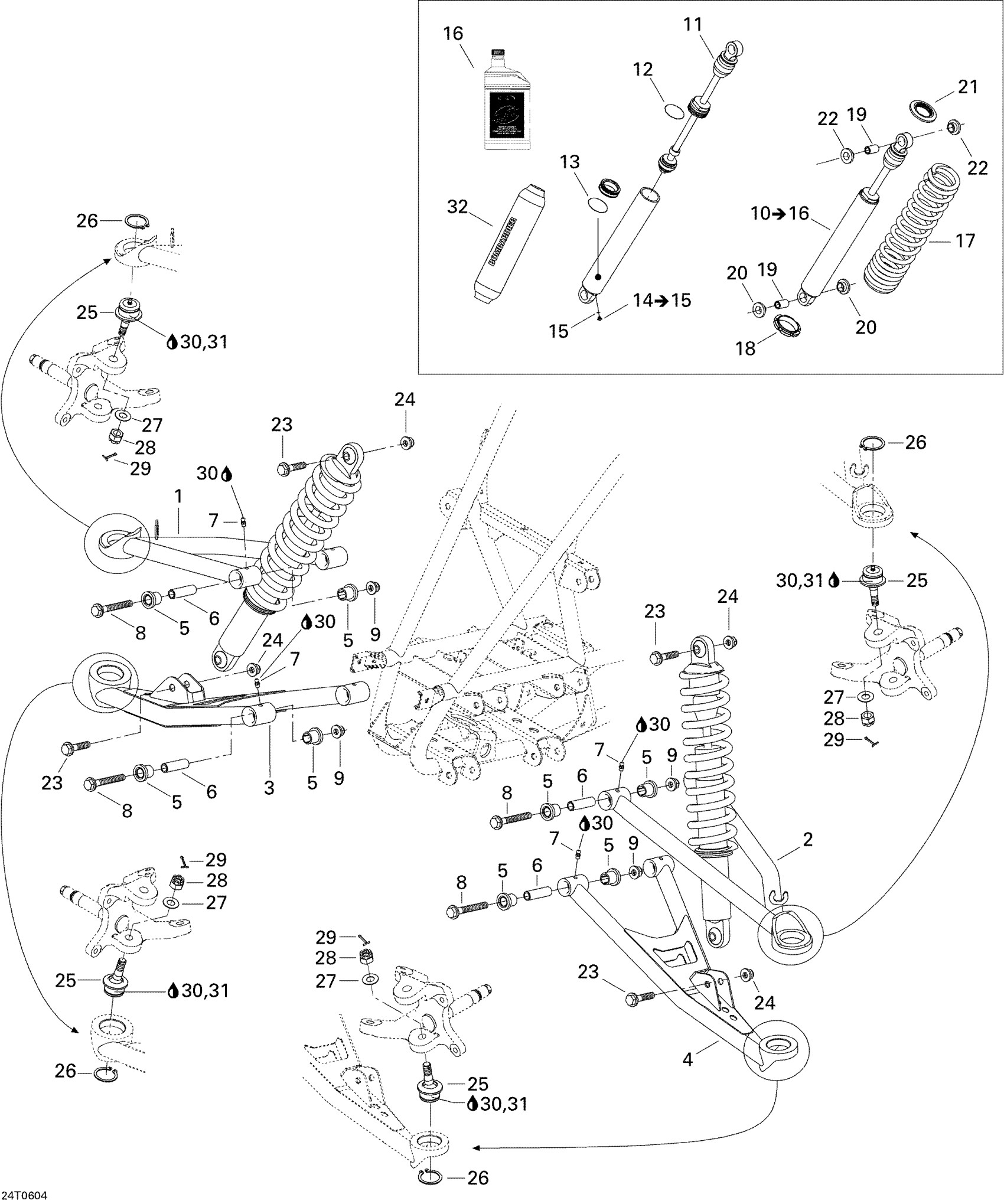

Can-Am DS 650 X, 2006 07- Front Suspension Diagram

#

Description
Price

1

RH Upper Arm

706200382

Unavailable

2

LH UPPER ARM - Call your local BRP dealership

706200381

Unavailable

3

RH LOWER ARM - Call your local BRP dealership

706200376

Unavailable

4

LH LOWER ARM - Call your local BRP dealership

706200374

Unavailable

5

Cushion

706200063

Unavailable

6

Internal Bushing

706200061

Unavailable

7

Grease Fitting

408200700

$3.49

8

Hex. Flange Screw M10 X 75

207607546

$6.59

9

Hex. Flange Elastic Nut M10

233201436

$2.11

10

Front Shock | DS 650 X / Includes 18 to 23

706200347

Unavailable

11

PISTON ASS'Y - Call your local BRP dealership | DS 650 X

706200391

Unavailable

12

O-ring | DS 650 X

706200392

Unavailable

13

O-RING - Call your local BRP dealership | DS 650 X

706200393

Unavailable

14

PRESSURE VALVE ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 23

706200413

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Shock | DS 650 X

503190103

Unavailable

17

SPRING - Call your local BRP dealership | DS 650 X

706200348

Unavailable

18

SPRING SEAT - Call your local BRP dealership | DS 650 X

706200349

Unavailable

19

Bushing | DS 650

706200097

Unavailable

20

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

21

SPRING RETAINER - Call your local BRP dealership | DS 650 X

706200351

Unavailable

22

Bushing | DS 650

706200412

Unavailable

23

Hex. Flange Screw M10 X 50

207605044

$5.29

24

Hex. Flange Elastic Nut M10

233201414

$1.58

25

Ball Joint

703500082

Unavailable

26

Circlip

293370017

$4.44

27

Hardened Washer

706200281

$2.85

28

Hex. Castellated Nut M12

232221414

$3.17

29

Cotter Pin

211400017

$0.33

30

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

31

Loctite 609, 10 ml

413703100

$26.99

32

Protector

706200276

Unavailable
