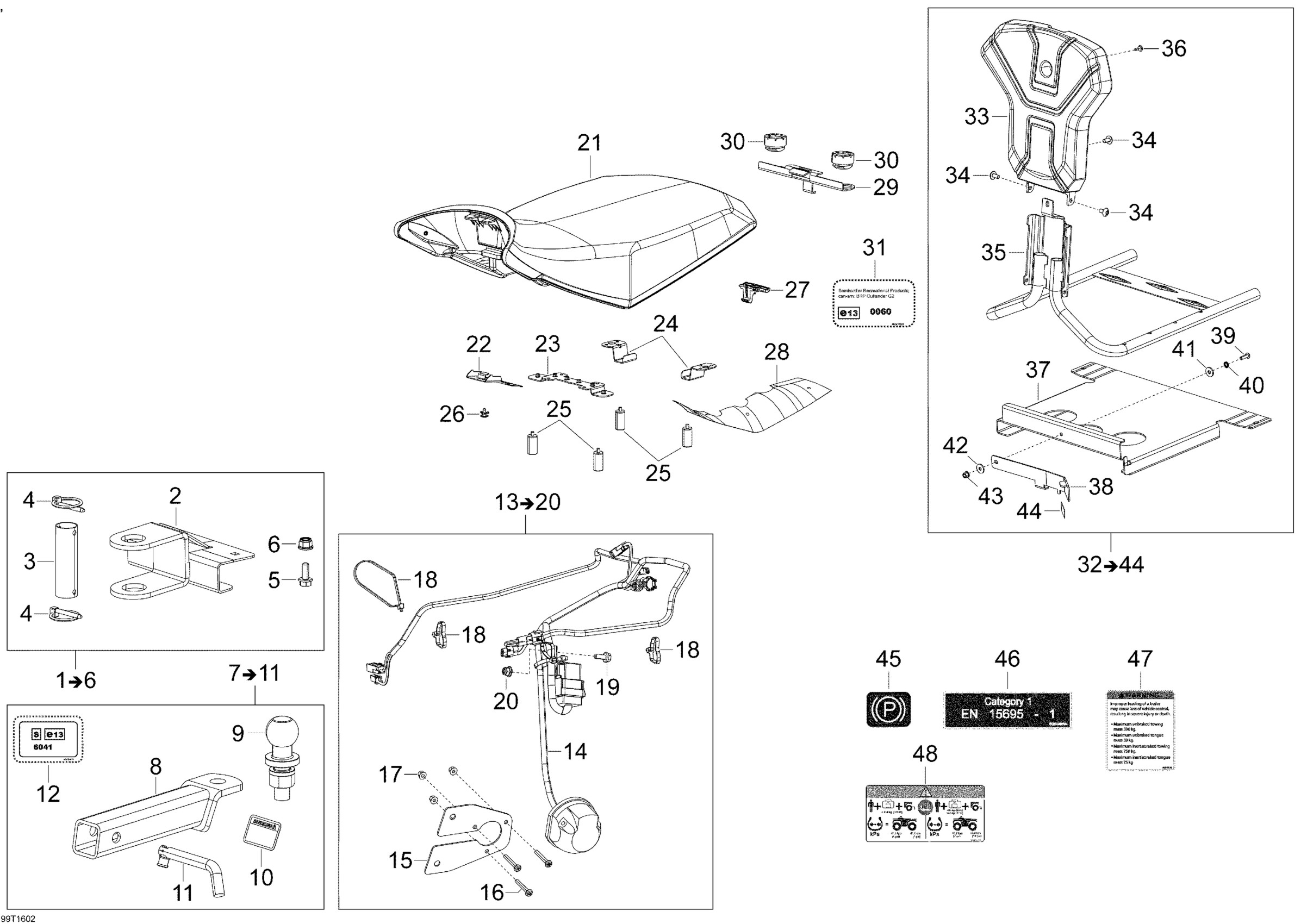

Can-Am 002 - Outlander - 570 EFI - PRO Package 0003RGA00 0003RGB00 0003RGD00 0003VGA00 11- T3 Parts (Pro Models) Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Coupling Device

705204452

Unavailable

3

Pin

605456511

Unavailable

4

Pin

605456518

Unavailable

5

Carriage Bolt, M8 X 20

207782044

$1.90

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Trailer Hitch Kit | Includes 7 To 11

705210320

$122.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Hitch Pin

705204490

$52.99

12

Hitch Decal

605456545

Unavailable

13

Trailer Plug Ass'y | Includes 13 To 19

860200927

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Plug Support Plate

605356523

Unavailable

16

Socket Head Screw M5 X 35

205053588

$1.90

17

Hex. Flange Elastic Nut M5

233251414

$1.04

18

Tie-Rap 180 mm

414115200

$0.11

19

Hex. Flange Screw M6 X 16

207661644

$0.74

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Seat Ass'y | Model-T3

708002208

Unavailable

22

Front Bottom Support | Model-T3

605456520

Unavailable

23

Support Central Cushion

510005986

Unavailable

24

Support Rear Cushion

510005988

Unavailable

25

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

26

Rivet | Model-T3

293150067

$2.89

27

Latch

708000909

$6.29

28

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

29

Support Rear Seat

705204621

Unavailable

30

Bumper Rubber

708000760

$10.49

31

Decal

605456593

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Backrest | Model-T3

708001794

Unavailable

34

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.98

35

Backrest Weld

708001992

Unavailable

36

Rubber

605454799

Unavailable

37

Rails

708001991

$29.99

38

Lock

708001820

Unavailable

39

Socket Screw M5 X .80 X 16

250000652

$1.01

40

Serrated Lock Washer

20018

Unavailable

41

Rubber Washer 5 mm

250200024

$2.19

42

Washer M5

250200025

$0.74

43

Elastic Flange Nut M5

233251494

$2.11

44

Decal

605456560

Unavailable

45

P-Decal, T3 | Package-XTT3

605356244

Unavailable

46

Cabin Decal, T3 | Package-XTT3

605456594

Unavailable

47

Warning Decal

605356505

Unavailable

48

LABEL-WARNING TIRE PRESSURE - Call your local BRP dealership

704905689

Unavailable
