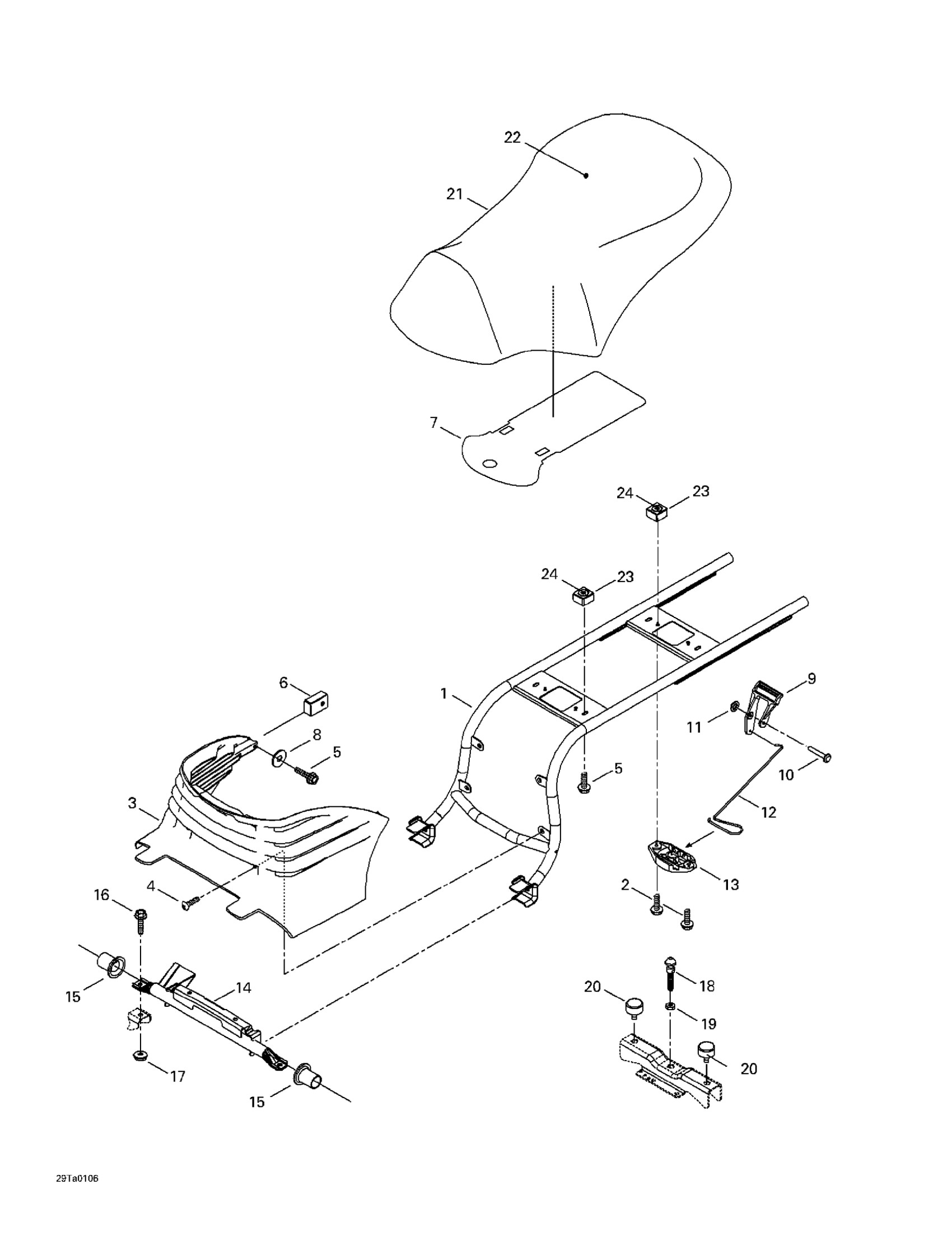

Can-Am Traxter, 7459/7460/7465/7466, 2001 09- Seat Diagram

#

Description
Price

1

Seat Support, Black

708000003

Unavailable

2

Hex. Flange Screw M6 X 25

207662544

$0.64

3

Engine Cover

705000187

Unavailable

4

Hex. Forming Screw M6 X 10

210261050

$1.69

5

Hex. Flange Screw M6 X 16

207661644

$0.74

6

Nut Housing M6

708000042

Unavailable

7

Reflective Sheet

708000029

Unavailable

8

Flat Washer

224061201

$1.37

9

Lever Latch

708000010

Unavailable

10

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

11

Push Nut

389804300

$0.53

12

SPRING - Call your local BRP dealership

708000015

Unavailable

13

Latch Base

708000034

Unavailable

14

Seat Pivot, Black

708000044

Unavailable

15

SEAT BUSHING - Call your local BRP dealership

708000019

Unavailable

16

Hex. Flange Screw M8 X 20

207682044

$1.15

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

19

Hex. Jam Nut M10

232100600

$2.22

20

Rubber Stopper

708000758

$12.99

21

Seat Ass'y

708000093

Unavailable

Seat Ass'y | Includes 21 - 24.

708000048

Unavailable

Seat Ass'y | Traxter XT.

708000090

Unavailable

22

Seat cover

708000095

Unavailable

Seat Cover

708000024

Unavailable

Seat cover | (7467 - 7468 - 7472 - 7481) Traxter XT.

708000092

Unavailable

23

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

24

Elastic Stop Nut M6

232561414

$0.55
