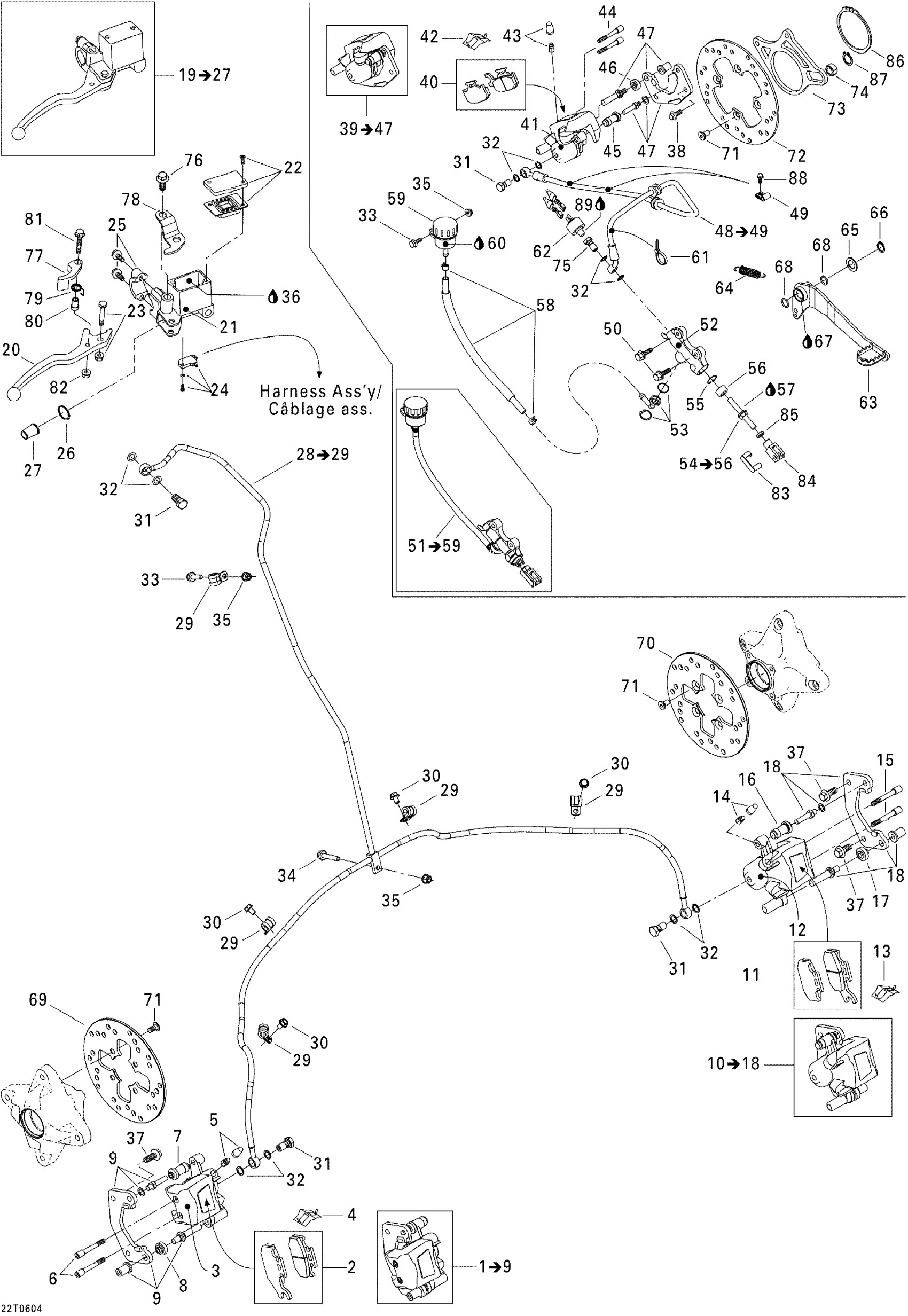

Can-Am DS 650 X, 2006 06- Brakes Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 To 9

705600043

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Spring

705600079

$15.81

5

Bleeding Screw

705600080

$16.87

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

RH BRAKE SUPPORT - Call your local BRP dealership

705600062

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 To 18

705600044

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

LH BRAKE SUPPORT - Call your local BRP dealership

705600061

Unavailable

19

MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600045

Unavailable

20

ARM LEVER - Call your local BRP dealership

705600057

Unavailable

21

Piston Kit

705600058

Unavailable

22

Cap Set

705600084

$24.99

23

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

24

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

28

Front Brake Hose | Includes 28 To 29

705600303

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Hex. Forming Screw M6 X 10

210261050

$1.69

31

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

32

Copper Washer

705601628

$4.44

33

Hex. Flange Screw M6 X 20

207662044

$2.00

34

Hex. Flange Screw M6 X 20

207662044

$2.00

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

36

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

36

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

38

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

39

Rear Caliper | Includes 39 To 47

705600599

$301.99

40

Brake Pad Kit

705600014

$51.99

41

Piston Set

705600078

$38.99

42

Spring

705600079

$15.81

43

Bleeding Screw

705600080

$16.87

44

Pin Set (2)

705600081

$20.49

45

Compression Boot

705600082

$10.06

46

Compression Boot

705600083

$10.06

47

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

48

Rear Brake Hose | Includes 48 To 49

705600304

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

51

Master Cylinder Ass'y | Includes 51 To 59

705600300

Unavailable

52

Piston Set

705600063

Unavailable

53

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

54

ROD ASSY - Call your local BRP dealership | Includes 54 To 57

705600301

Unavailable

55

Circlip

705600068

Unavailable

56

Compression Boot

705600090

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

HOSE ASS'Y - Call your local BRP dealership

705600190

Unavailable

59

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

60

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

60

HYDRAULIC OIL - Call your local BRP dealership

293600131

$9.99

61

Tie-Rap 180 mm

414115200

$0.11

62

Interrupteur *Brake Switch

710001345

$36.99

63

Brake Pedal

705600094

Unavailable

64

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

65

WASHER - Call your local BRP dealership

503107800

Unavailable

66

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

67

Synthetic Grease, 400 G

293550010

Unavailable

68

O-RING - Call your local BRP dealership

293300053

Unavailable

69

RH BRAKE DISC - Call your local BRP dealership

705600042

Unavailable

70

LH BRAKE DISC - Call your local BRP dealership

705600093

Unavailable

71

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

72

Brake Disc

705500059

Unavailable

73

REAR CALIPER SUPPORT - Call your local BRP dealership

705600305

Unavailable

74

Caliper Guide

705500068

Unavailable

75

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

76

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

77

LEVER ARM - Call your local BRP dealership

705600095

Unavailable

78

LEVER STOPPER - Call your local BRP dealership

705600389

Unavailable

79

SPRING - Call your local BRP dealership

705600055

Unavailable

80

SNAP RING - Call your local BRP dealership

705600097

Unavailable

81

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

83

Pin Kit

219702305

$34.99

84

Yoke

705600100

Unavailable

85

Hex. Jam Nut M8

232180600

$0.67

86

CIRCLIP - Call your local BRP dealership

293370014

Unavailable

87

CIRCLIP - Call your local BRP dealership

293370015

Unavailable

88

Hex. Flange Screw M6 X 16

210261650

$1.67

89

Was 293800013 Loctite 56765

219704454

$65.99
