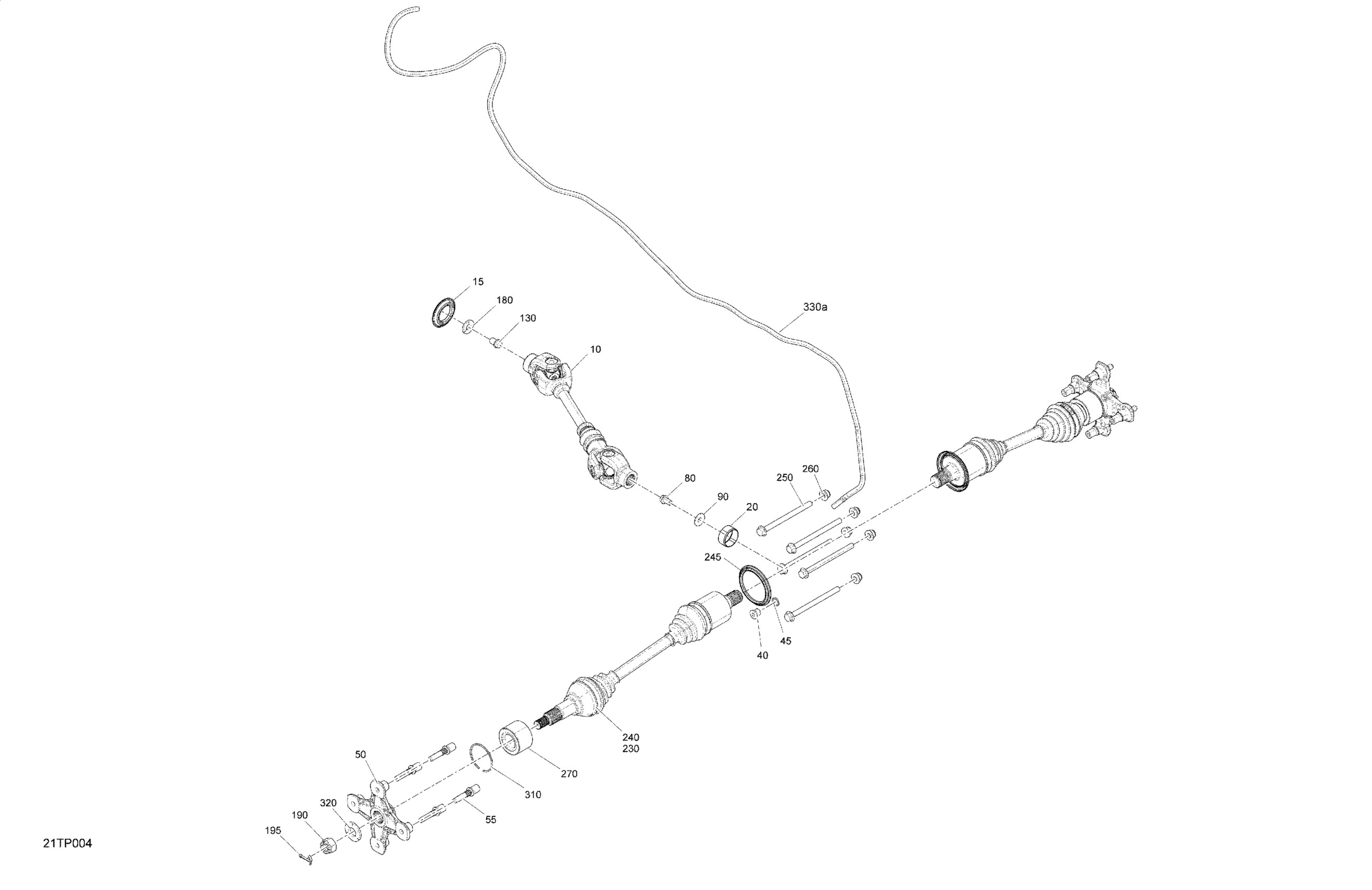

Can-Am 002 - Outlander - 570 EFI - PRO Package 0003RGA00 0003RGB00 0003RGD00 0003VGA00 04- Drive - Rear - Common Parts - MAX Diagram

Shaft Ass'y Kit | T3

703500992

$412.99

Protector

705501123

$7.55

Wear Ring | 4X4

705400036

$26.49

Fill Level Plug | 4X4

705500504

$10.01

Copper Washer | 4X4

705500506

$0.45

Wheel Hub

705501900

$132.49

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

Flat Washer M10 | 4X4

250200014

$1.49

Hex Flange Screw M12 X 16

250001039

$2.11

Flat Washer M12

250200102

$2.11

Hex. Flange Castellated Nut M18

232291413

$7.98

Cotter Pin

250400071

$2.11

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

Wear Ring

705501124

$7.90

Hex. Flange Screw M10 X 135

250001041

$5.59

Hex. Flange Elastic Nut M10

233201436

$2.11

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

Conical Spring Washer M18

250200171

$7.65

Polyurethane Hose 10000Mm Long

219704410

$56.99
