Description

Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 25

207662534

$2.11

4

Hex. Flange Screw M8 X 35

207683544

$1.69

7

Flat Washer

224060201

$1.26

8

Hex. Flange Nut M8

233081416

$1.15

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Flat Washer 6 mm

234062410

$0.77

12

Stainless Steel Flat Washer

234062670

$2.11

14

Panel Nut M6 X 1.0

250100198

$2.11

15

Torx Screw M6 X 35

250000541

$2.11

16

Hex. Flange Screw M6 X 12

250000574

$2.11

17

Torx Head Screw M6 X 16

250000717

$2.11

19

Gear Clamp

293650231

$16.99

20

Grommet

709000582

$4.69

21

Rubber Bumper

293830005

$8.09

22

Bushing

293900105

$7.65

24

Spacer Bushing

293900116

$3.24

25

Flat Washer

250200082

$0.42

26

Spring

415107100

$6.35

27

Gasket

707600317

$11.60

28

Rubber

707600448

$7.90

29

Bushing

293900106

$4.55

31

Exhaust Muffler | Includes 19a to 19f

703501071

$572.49

31

MUFFLER_EXHAUST - Call your local BRP dealership | Europe Model

707601723

$837.49

31a

Spark Arrestor

707601803

$49.99

31b

Gasket

707601799

$5.99

31c

Muffler End Piece

715900143

$35.99

31d

Support

715900147

$3.29

32

Vibration Damper

707603323

$11.65

34

Heat Deflector

707600710

$42.99

38

Front Head Pipe

707600627

$142.99

38

Front Head Pipe

707600764

$142.99

39

Pipe Protector

707600932

$15.81

41

Heat Shield

707602604

$19.99

42

Heat Shield

707600995

$18.99

43

Heat Shield End Cap

707601255

$45.99

50

Protector

707601425

$19.49

53

Rear Head Pipe

707601446

$206.49

53

Rear Head Pipe

707601447

$206.49

53

Rear Head Pipe

707601455

$206.49

53

Rear Head Pipe

707601456

$206.49

56

Protector

707601484

$12.71

57

Protector

707601485

$12.71

58

Heat Shield

707603724

$13.99

59

Pipe Gasket

707601544

$19.49

60

Heat Shield

707600996

$24.49

60a

Carriage Bolt M6 X 12

207761244

$1.90

60b

Elastic Stop Nut M6

232561414

$0.55

60c

Flat Washer 6 mm

234061410

$1.36

61

Rubber Stopper

708000506

$7.55

62

Flat Washer M8

250200158

$2.11

64

Torx Truss Screw M6 X 12

250000767

$2.00

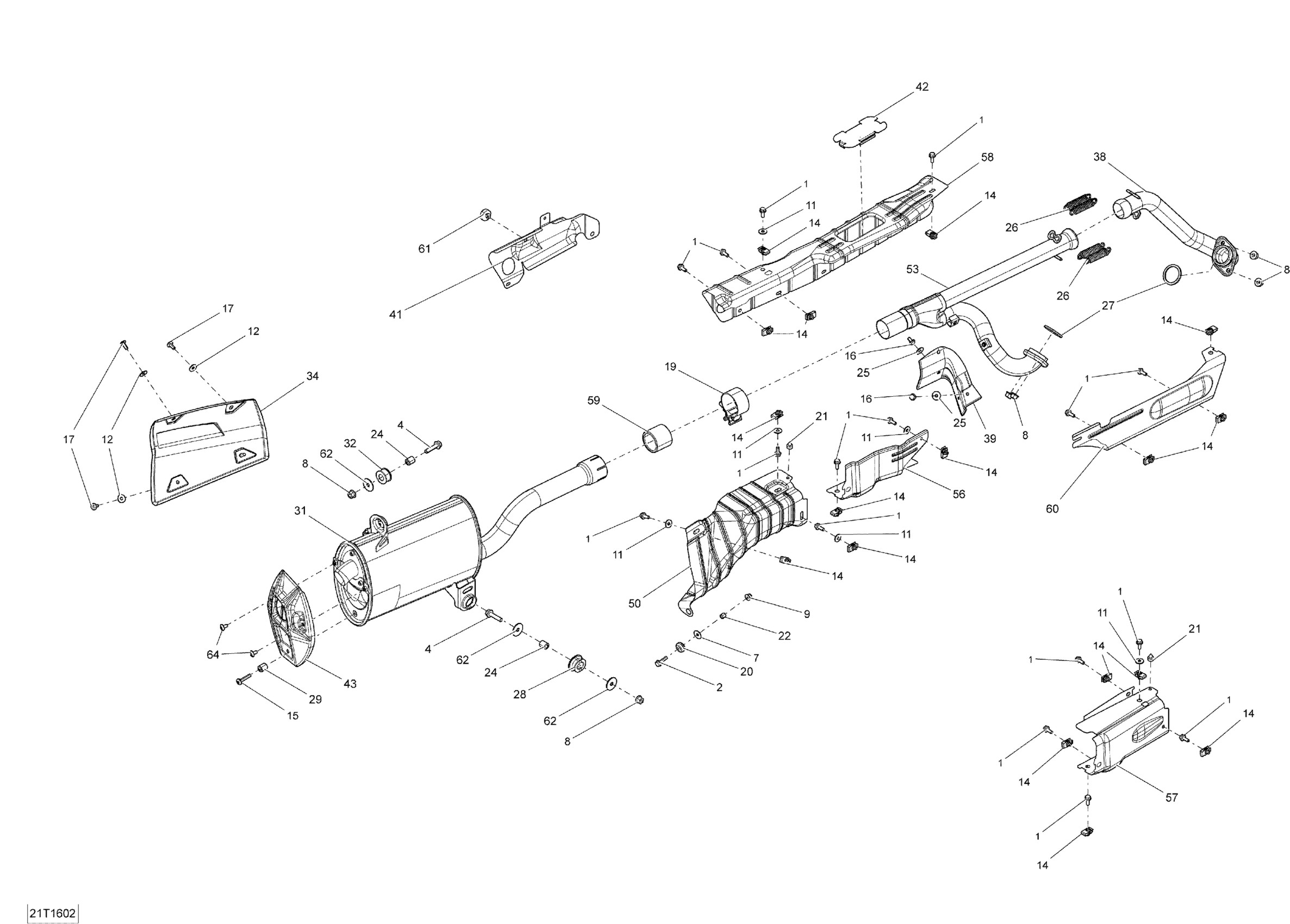

Can-Am 002 - Outlander - 570 EFI - PRO Package 0003RGA00 0003RGB00 0003RGD00 0003VGA00 01- Exhaust System - All Models Diagram

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Screw M8 X 35

Flat Washer

Hex. Flange Nut M8

Hex. Flange Elastic Nut M6 x 1.0

Flat Washer 6 mm

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Torx Screw M6 X 35

Hex. Flange Screw M6 X 12

Torx Head Screw M6 X 16

Gear Clamp

Grommet

Rubber Bumper

Bushing

Spacer Bushing

Flat Washer

Spring

Gasket

Rubber

Bushing

Exhaust Muffler | Includes 19a to 19f

MUFFLER_EXHAUST - Call your local BRP dealership | Europe Model

Spark Arrestor

Gasket

Muffler End Piece

Support

Vibration Damper

Heat Deflector

Front Head Pipe

Front Head Pipe

Pipe Protector

Heat Shield

Heat Shield

Heat Shield End Cap

Protector

Rear Head Pipe

Rear Head Pipe

Rear Head Pipe

Rear Head Pipe

Protector

Protector

Heat Shield

Pipe Gasket

Heat Shield

Carriage Bolt M6 X 12

Elastic Stop Nut M6

Flat Washer 6 mm

Rubber Stopper

Flat Washer M8

Torx Truss Screw M6 X 12
