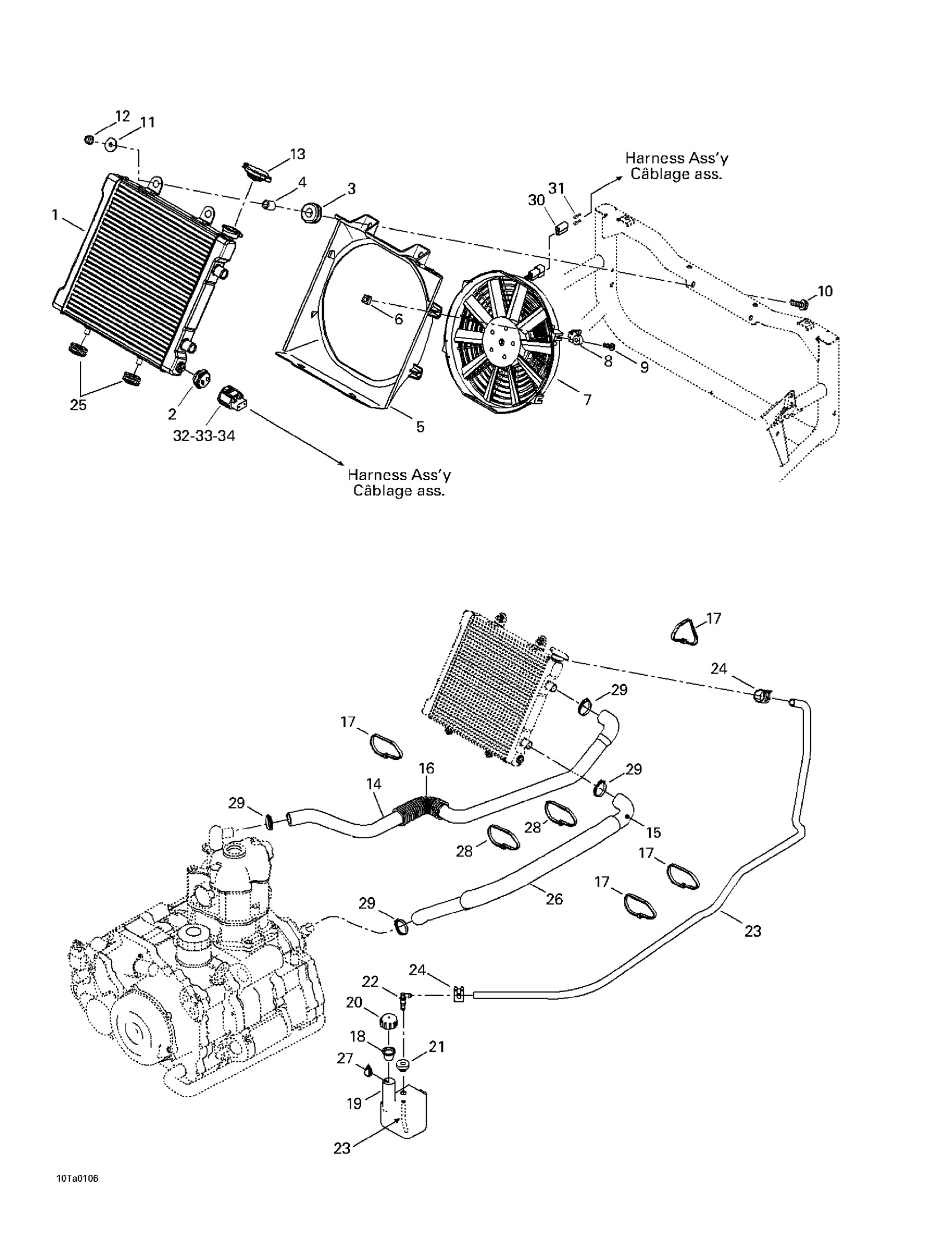

Can-Am Traxter, 7459/7460/7465/7466, 2001 01- Cooling System Diagram

Radiator Ass'y | Includes 1 - 2.

709200056

Unavailable

Temperature Sensor

715900095

$70.99

Grommet

709000582

$4.69

Bushing

293900019

$7.73

Outlet shroud

709200013

Unavailable

Square Nut M6

232862412

$1.49

Fan ass'y

709200004

Unavailable

Fan Support

709200017

Unavailable

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

250200082

$0.42

Flat Washer

224060201

$1.26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Radiator Pressure Cap

709200207

$25.49

Pressure Cap

509000187

$29.49

RADIATOR INLET HOSE - Call your local BRP dealership

709200060

Unavailable

OUTLET HOSE - Call your local BRP dealership

709200043

Unavailable

PROTECTION SHIELD - Call your local BRP dealership

709200031

Unavailable

Tie-Rap 180 mm

414115200

$0.11

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

TANK CAP - Call your local BRP dealership

709200009

Unavailable

Grommet

709200285

$9.69

Elbow Male Connector

414580600

$4.23

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

Spring Clamp

414554800

$0.88

Grommet

709000582

$4.69

PROTECTION SHIELD - Call your local BRP dealership

709200032

Unavailable

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

Tie Wrap 368 mm

293750008

$1.04

Norma Spring Clamp

293650109

$4.12

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

Female Terminal

561503100

$2.41

Female Terminal

409012100

$4.55

Seal

409012300

$4.54

HOUSING-TAB - Call your local BRP dealership

710000078

Unavailable
