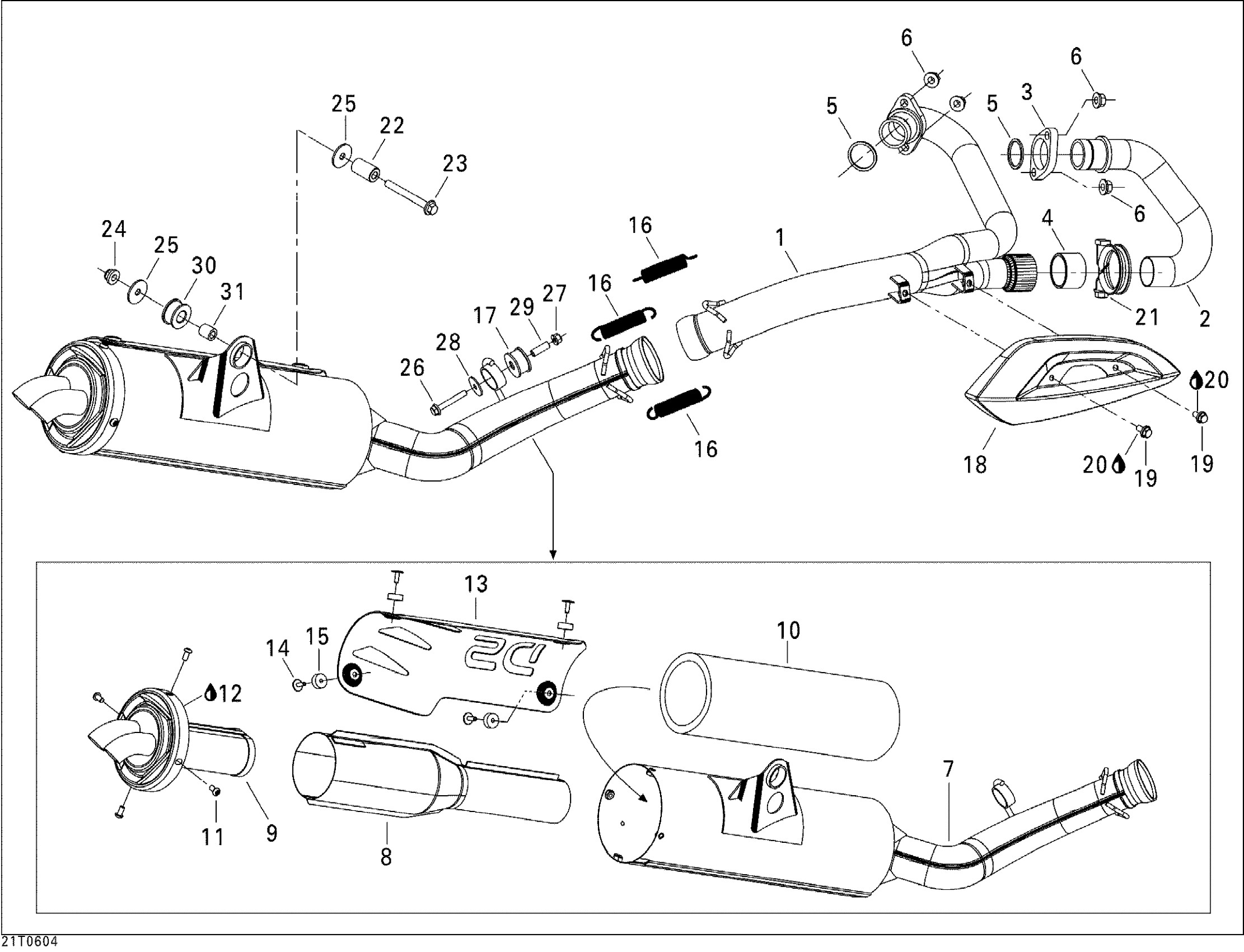

Can-Am DS 650 X, 2006 01- Exhaust System Diagram

#

Description
Price

1

LH TUNED PIPE - Call your local BRP dealership

707600019

Unavailable

2

RH TUNED PIPE - Call your local BRP dealership

707600196

Unavailable

3

EXHAUST CLAMP - Call your local BRP dealership

707600024

Unavailable

4

PIPE GASKET - Call your local BRP dealership

707600020

Unavailable

5

PIPE GASKET - Call your local BRP dealership

707600069

Unavailable

6

Hex. Flange Nut M8

233081416

$1.15

7

TUNED PIPE - Call your local BRP dealership | DS 650 X

707600188

Unavailable

8

Perforated Tube | DS 650

707600053

Unavailable

9

END PIECE - Call your local BRP dealership | DS 650

707600066

Unavailable

10

Insulator | DS 650

707600089

Unavailable

11

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11

12

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

13

Heat Shield | DS 650 X

707600179

Unavailable

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

15

Rubber Washer | DS 650 X

250200034

Unavailable

16

Spring

415107100

$6.35

17

Anti-Vibration Rubber

707600702

$8.57

18

HEAT SHIELD, SLATE GRAY - Call your local BRP dealership | DS 650 X

707600241

Unavailable

19

Hex. Flange Screw M6 X 12

207661244

$2.11

20

Loctite 271, 10 ml

293800005

$26.99

21

GEAR CLAMP - Call your local BRP dealership

293650093

Unavailable

22

SPACER - Call your local BRP dealership

707600049

Unavailable

23

Hex. Flange Screw M8 X 70

207687044

$7.41

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Flat Washer

224081301

$0.88

26

Hex. Flange Screw M6 X 40

207664044

$2.22

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Washer

224060251

$0.58

29

Spacer

707600070

$12.16

30

Vibration Damper

707603323

$11.65

31

Bushing

293900106

$4.55
