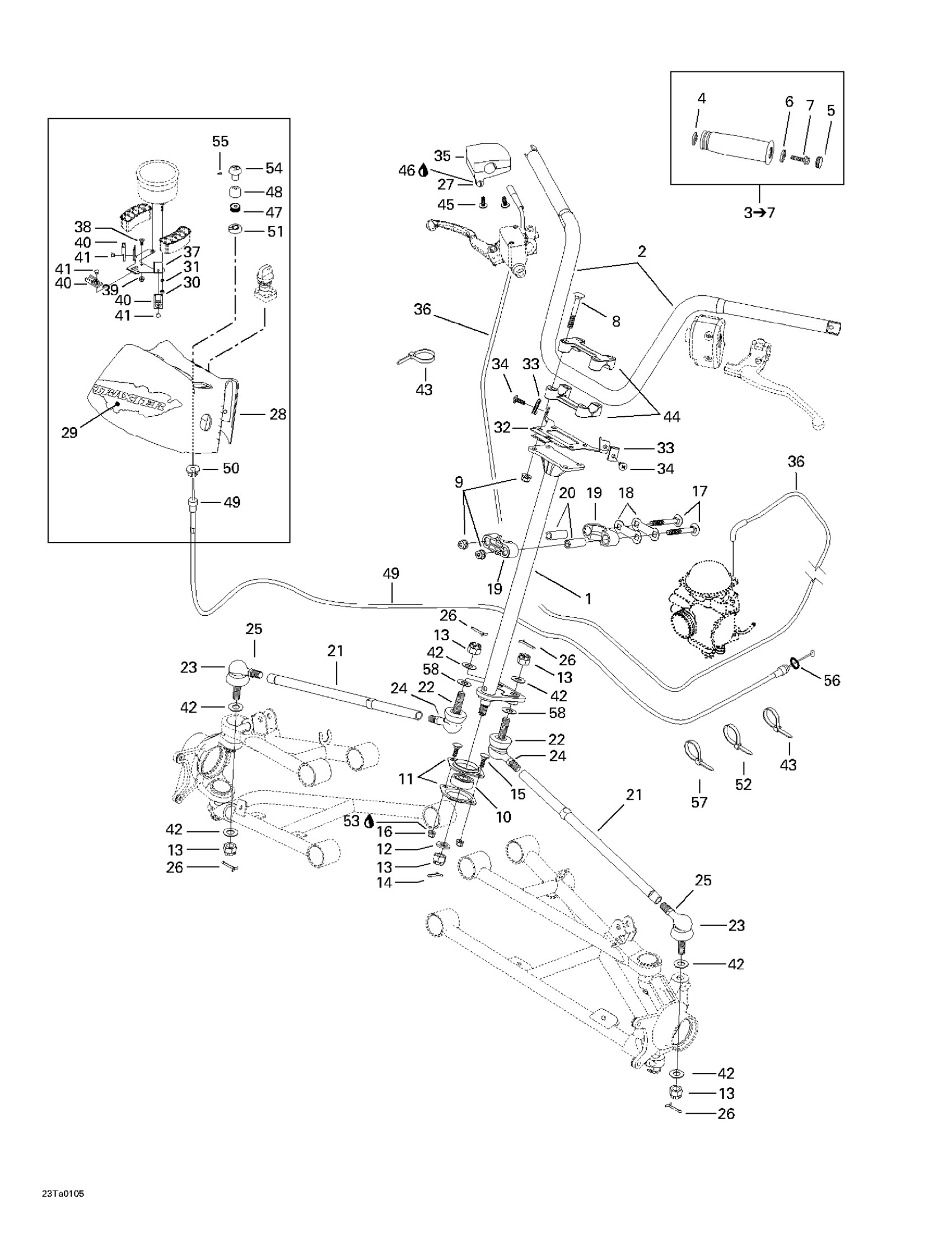

Can-Am Traxter Footshift, Red/rouge, 2001 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400089

Unavailable

2

Handlebar

709400005

Unavailable

3

HANDLE GRIP KIT, BLACK - Call your local BRP dealership

295500691

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Black, Cap

277000203

$9.39

6

Flat Washer M6, Stainless

234062600

$0.77

7

Hex. Screw M6 X 30, Scotch Grip

250000002

$0.92

8

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Ball Bearing

709400439

$19.49

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.72

13

Hex. Castellated Nut M12

232221414

$3.17

14

Cotter Pin

211400017

$0.33

15

Carriage Bolt M6 X 25

207762544

$1.69

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Carriage Bolt M8 X 70

207787044

$1.37

18

Stopper Plate

506150600

$4.39

19

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

20

Housing Bushing

506150500

$7.99

21

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

$174.99

22

RH Ball Joint

709402302

$36.99

23

LH Ball Joint

709402303

$36.99

24

Nut Hexagonal RH.

232026414

$1.48

25

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

26

Cotter Pin

211400013

$0.37

27

SCREW-SET SOCKET DIN.913 - Call your local BRP dealership

250000017

Unavailable

28

Steering cover (black) | Includes 28 - 9.

703500019

Unavailable

29

Steering Cover Label

704900024

Unavailable

30

Nut

414303600

Unavailable

31

Lock Washer 4 mm

234141601

$1.15

32

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

33

Speednut M6

211100050

Unavailable

34

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

35

THROTTLE HANDLE - Call your local BRP dealership

709400016

Unavailable

36

THROTTLE CABLE - Call your local BRP dealership

707000097

Unavailable

37

Housing Support, Black

710000159

Unavailable

38

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

39

Elastic Stop Nut M5

232551414

$0.87

40

Clip

270000141

$11.49

41

Pop Rivet 3/16"

390402400

$0.35

42

Hardened Washer

503175400

Unavailable

43

Tie-Rap 180 mm

414115200

$0.11

44

Steering Clamp

709400028

Unavailable

45

Screw M5 x 30

205353046

Unavailable

46

Loctite BLACK/MAX Gel Tube, 20 g

293800061

Unavailable

47

HOLDER CAP - Call your local BRP dealership

707000087

Unavailable

48

Rubber Cap

707000088

Unavailable

49

CHOKE CABLE - Call your local BRP dealership

707000357

Unavailable

50

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

51

D SHAPE WASHER - Call your local BRP dealership

707000067

Unavailable

52

Tie-Rap 173 mm

293750009

$1.04

53

Loctite 243, 10 ml

293800060

$21.49

54

BUTTON - Call your local BRP dealership

707000089

Unavailable

55

Socket Head Screw M3x0.5

205030487

Unavailable

56

O-RING - Call your local BRP dealership

293300075

Unavailable

57

Tie Wrap 368 mm

293750008

$1.04

58

Washer

503189276

$3.28
