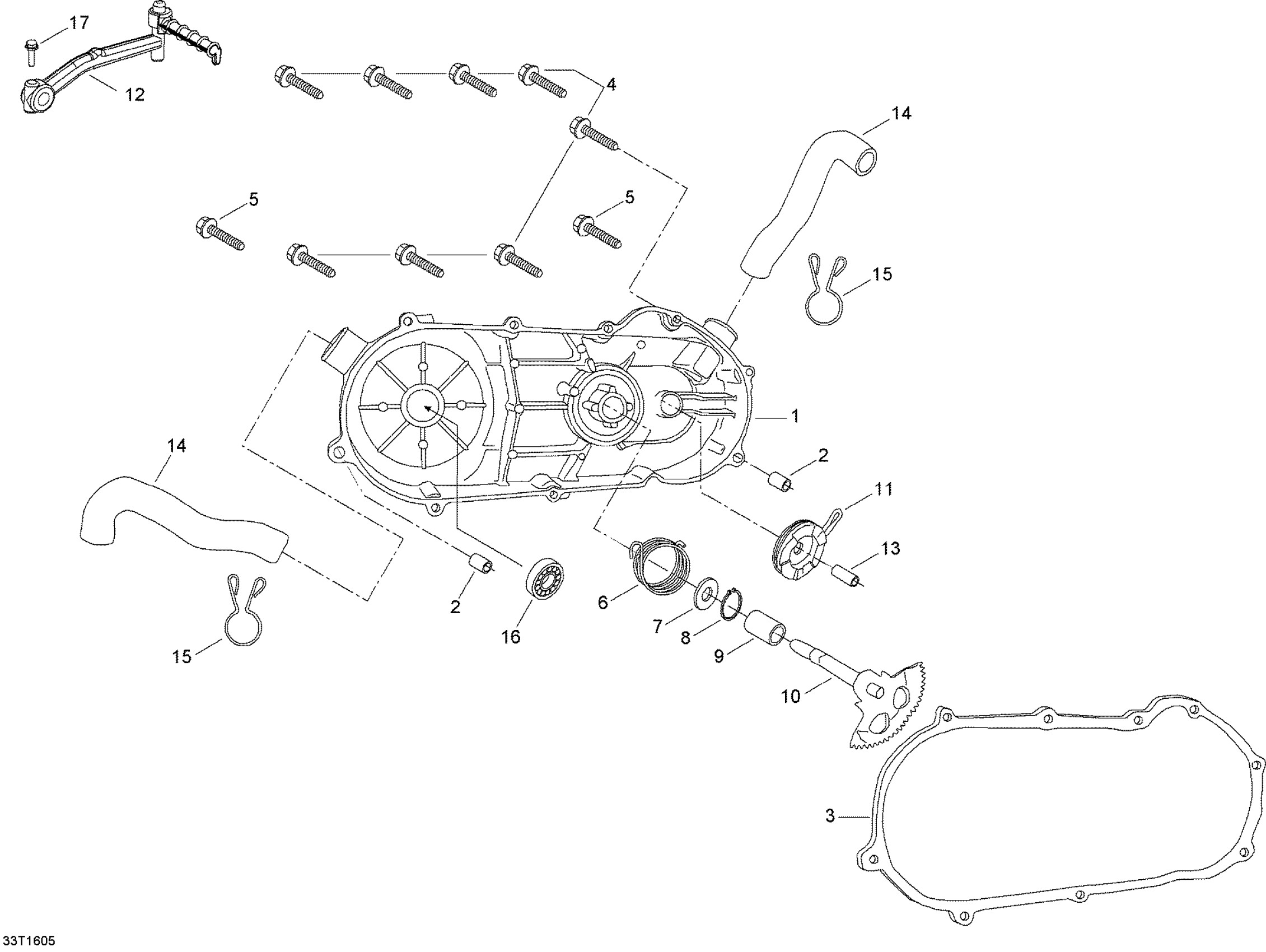

Can-Am DS 90, 2016 05- CVT Cover And Kick Starter Diagram

#

Description
Price

1

CVT Cover

V13341CJF020LL

$137.49

2

Dowel Pin

A9430110140

$4.23

3

Cvt Cover Gasket

V11359CJF010

$17.04

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

6

Spring Torsion

V282814DM00

$15.34

7

Washer

V9410415010LL

$7.51

8

Circlip

V9451015000

$2.57

9

Rubber Bushing

V282544DM00

$18.49

10

Kick Shaft

V282504DM02LL

$73.99

11

Pinion Ass'y, Kick

V2823A4DM02

$61.49

12

Kick Starter

V28301DGF020LL

$11.11

13

Shaft Idle Gear

V281024DM02

$23.99

14

CVT Duct

V11345DGF030LL

$22.49

15

Clip

V95002025030010LL

$12.71

16

Bearing

V96100638ZZ

$47.49

17

Hex. Flange Screw M6 X 25

207662544

$0.64
