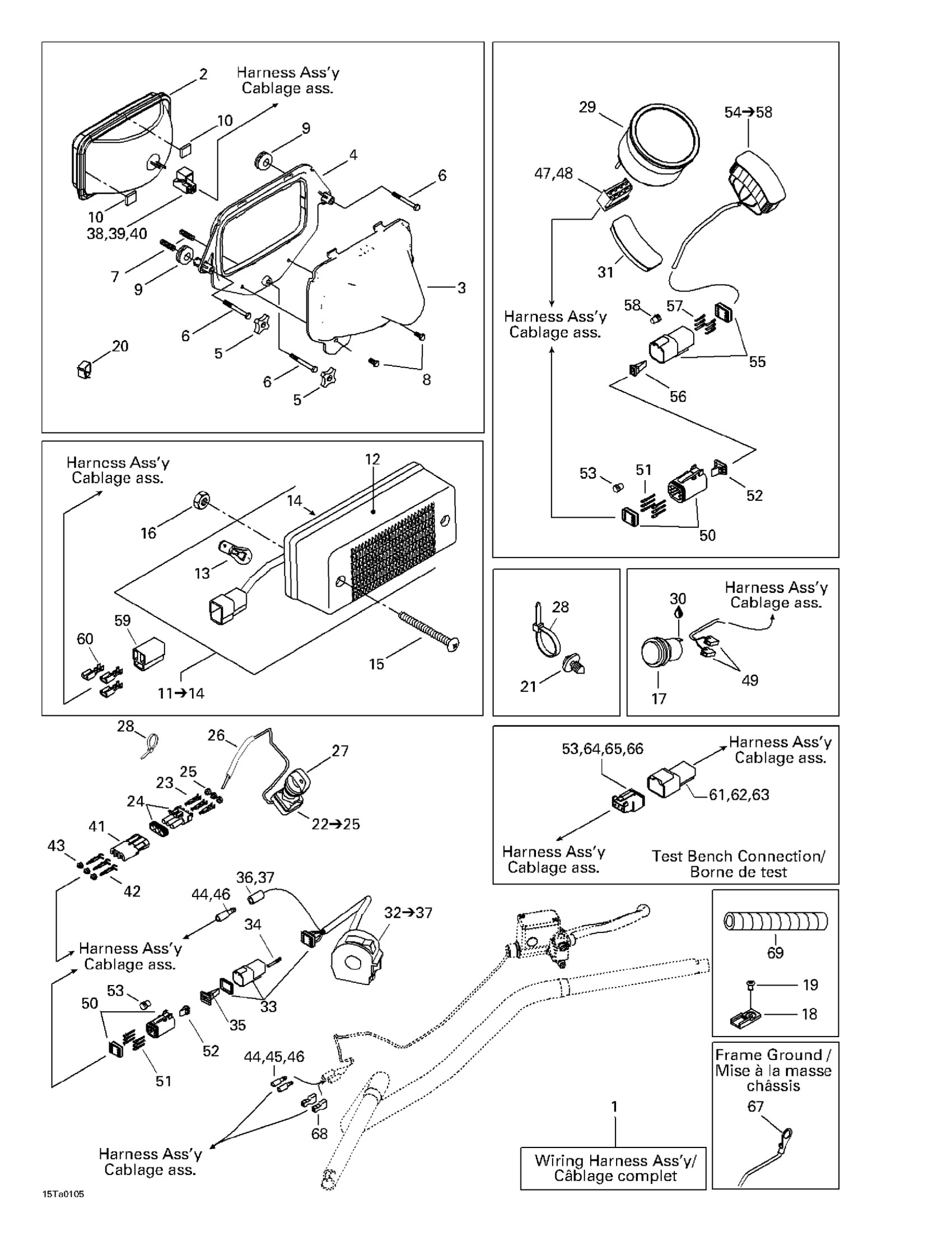

Can-Am Traxter Footshift, Green/vert, 2001 10- Main Harness And Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y (Not Shown)

710000165

Unavailable

2

HEADLAMP - Call your local BRP dealership

710000001

Unavailable

3

Protector

705000023

Unavailable

4

Headlamp Support

705000182

Unavailable

5

Handle

572106600

$10.33

6

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

7

Spring

517168600

$7.39

8

PHILLIPS SCREW K40 X 10 - Call your local BRP dealership

241641040

Unavailable

9

Grommet

709000582

$4.69

10

Rubber Pad

293830088

Unavailable

11

Tail Light Housing

710000102

Unavailable

12

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

13

Bulb

520000758

$9.10

14

GASKET - Call your local BRP dealership

710000129

Unavailable

15

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Outlet Power Kit, 12 Volts

861507200

$36.99

18

Clip

270000141

$11.49

19

Pop Rivet 3/16"

390402400

$0.35

20

Clip

414227300

$1.67

21

Mount Dart

293730040

$1.04

22

Ignition Switch Ass'y | Includes 24 - 27.

710000042

Unavailable

23

Female Terminal

278000223

$3.19

24

Male Housing, 3 Circuits

278000273

$9.59

25

Wire Seal

278000218

$4.39

26

Protector Tube

710000171

Unavailable

27

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

27

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

28

Tie-Rap 180 mm

414115200

$0.11

28

Tie Wrap 142 mm

293750002

$1.25

28

Tie Wrap 368 mm

293750008

$1.04

29

Speedometer (MPH) (US)

710000021

Unavailable

29

Speedometer (KM/H)

710000037

Unavailable

29

Speedometer

710000198

Unavailable

30

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

31

LIGHT COVER - Call your local BRP dealership

709400102

Unavailable

32

Multi-function Switch | Includes 32 - 37. 7439/7440/7473 (Red/Rouge). .

710000196

Unavailable

33

Male Terminal Housing, 6 Circuits

409015200

Unavailable

34

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

35

Male Lock, 6 Circuits

409014600

Unavailable

36

Male Terminal

278000230

$4.39

37

Insulated Sheath

278001008

$3.28

38

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710000026

Unavailable

39

Female Terminal

710000027

Unavailable

40

Female Lock, 2 Circuits

710000028

Unavailable

41

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

42

Male Terminal

409004300

$5.61

43

Wire Seal

278000218

$4.39

44

Female Terminal | DS 650 X

278001009

$3.19

45

Insulated Sheath

278000770

$7.90

46

Insulated Sheath

278001007

$3.58

47

Female Terminal

710000036

Unavailable

48

Female Housing (8 Circuits)

710000035

Unavailable

49

Female Terminal

710000038

$4.55

50

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

51

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

52

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

53

PLUG - Call your local BRP dealership

515175303

Unavailable

54

RH Warning Lamp

710000007

Unavailable

55

Male Terminal Housing, 6 Circuits

409015200

Unavailable

56

Male Lock, 6 Circuits

409014600

Unavailable

57

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

58

PLUG - Call your local BRP dealership

515175303

Unavailable

59

Female Housing

409204300

Unavailable

60

Female Terminal

561503100

$2.41

61

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

Unavailable

62

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

63

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

Unavailable

64

FEMALE TERMINAL HOUSING, 3 CIRC. - Call your local BRP dealership

515175249

Unavailable

65

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

66

Female Lock, 3 Circuits

515175248

Unavailable

67

Open Barrel Terminal

278001392

$4.79

68

Female Terminal

710000082

$7.69

69

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

69

Tubing 6 Mm 3000Mm Long

219704425

$13.75

69

Was 409901800 Tubing (13 mm)

219704400

$14.49

69

Was 409901600 Tubing 19mm

219704398

$95.99

69

Tubing 16 Mm 1000Mm Long

219704408

$7.49
