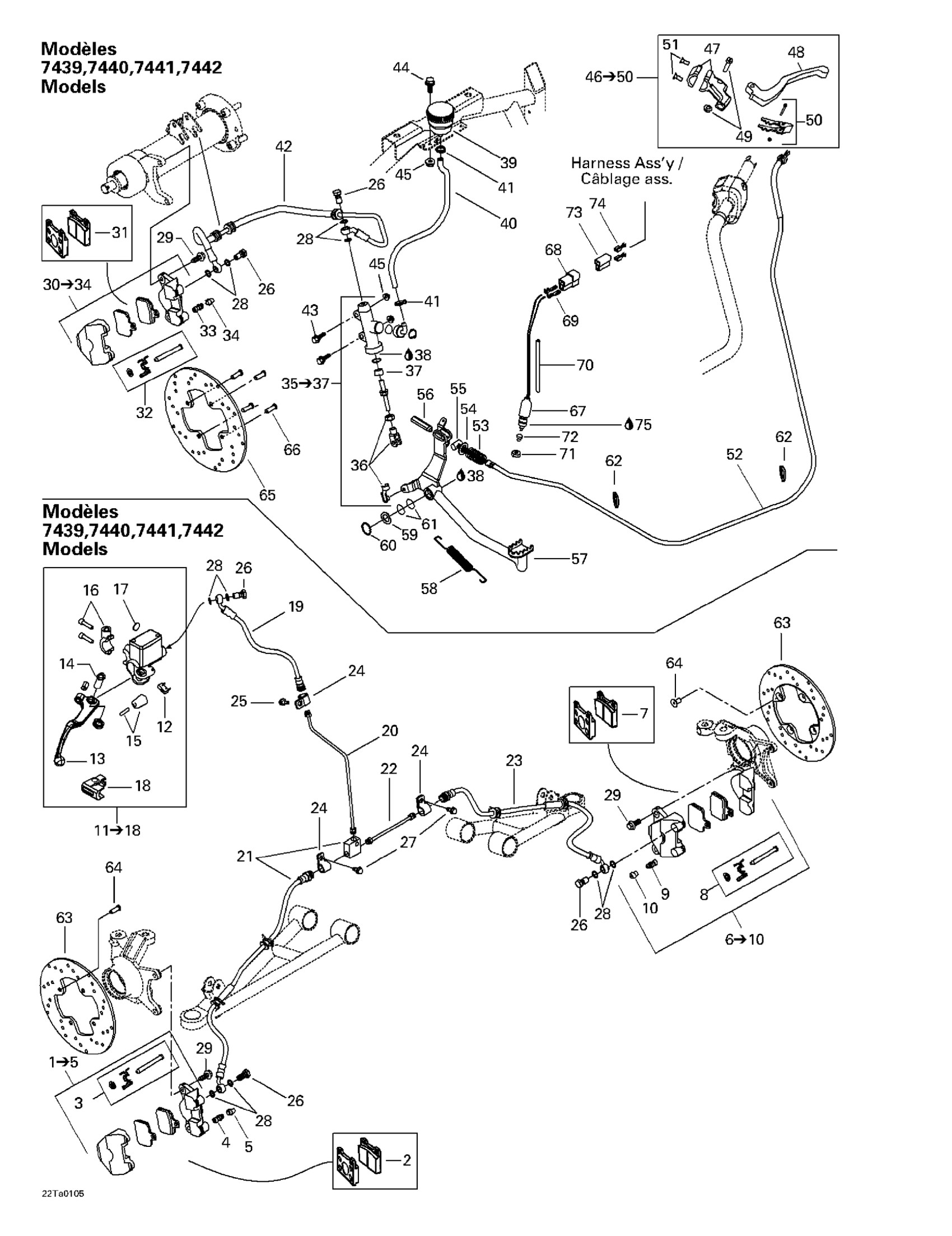

Can-Am Traxter Footshift, Green/vert, 2001 06- Hydraulic Brake (7439 7440 Diagram

#

Description
Price

1

RH CALIPER ASS'Y - Call your local BRP dealership

705600028

Unavailable

2

PAD_BRAKE KIT - Call your local BRP dealership

705600041

Unavailable

3

Retainer Kit

705600110

Unavailable

4

Bleeder Screw

705600111

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

LH Caliper Ass'y

705600029

Unavailable

7

PAD_BRAKE KIT - Call your local BRP dealership

705600041

Unavailable

8

Retainer Kit

705600110

Unavailable

9

Bleeder Screw

705600111

Unavailable

10

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

11

Master Cylinder Ass'y

705600005

Unavailable

12

Microswitch

705600112

Unavailable

13

ARM LEVER - Call your local BRP dealership

705600113

Unavailable

14

Pin Lever

414990200

Unavailable

15

Cap

414990300

Unavailable

16

Clamp

414990400

Unavailable

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

BOOT RUBBER - Call your local BRP dealership

705600114

Unavailable

19

Brake Handle Hose

705600007

Unavailable

20

Vertical tube

705600036

Unavailable

21

Flexible Hose R.H

705600020

Unavailable

22

Horizontal tube

705600038

Unavailable

23

Flexible Hose L.H

705600059

Unavailable

24

Open Clamp

705600040

$13.24

25

Hex. Flange Screw M6 X 16

210261650

$1.67

26

Banjo Bolt

414920500

$8.68

27

Screw Hex. M6.3 x 19

210661940

Unavailable

28

Washer

414920600

$1.90

29

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

30

RH Rear Caliper | Includes 16 - 17.

705600031

Unavailable

31

PAD_BRAKE KIT - Call your local BRP dealership

705600041

Unavailable

32

Retainer Kit

705600110

Unavailable

33

Bleeder Screw

705600111

Unavailable

34

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

35

Master Cylinder | Includes 18 - 0.

705600006

Unavailable

36

Pusher

705600021

Unavailable

37

Boot Bellow

705600075

Unavailable

38

Synthetic Grease, 400 G

293550010

Unavailable

39

OIL HOUSING - Call your local BRP dealership

705600009

Unavailable

40

Oil Housing Hose | 7415/7416. 7417/7418.

705600102

Unavailable

41

Oetiker Clamp

293650042

$3.09

42

Rear Brake Hose

705600159

Unavailable

43

Hex. Flange Screw M6 X 25

207662544

$0.64

44

Hex. Flange Screw M6 X 16

207661644

$0.74

45

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

46

Brake Handle Ass'y | Includes 46 - 50.

705600129

Unavailable

47

CLAMP KIT - Call your local BRP dealership

705600184

Unavailable

48

Lever

705600130

Unavailable

49

Pivot Kit

705600187

Unavailable

50

Lever Lock Kit

705600188

Unavailable

51

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

52

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

53

SPRING - Call your local BRP dealership

705600144

Unavailable

54

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

55

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

56

NUT - Call your local BRP dealership

705600147

Unavailable

57

Brake Pedal (Black)

705600131

Unavailable

58

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

59

WASHER - Call your local BRP dealership

503107800

Unavailable

60

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

61

O-RING - Call your local BRP dealership

293300053

Unavailable

62

Tie-Rap 180 mm

414115200

$0.11

63

Brake Disk (Front) (7431 @ 7434)

705600003

Unavailable

64

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

65

Brake Disk 220 mm (Rear)

705600033

Unavailable

66

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

67

Brake Switch

515175653

$19.49

68

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

69

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

70

Tubing 6 Mm 3000Mm Long

219704425

$13.75

71

Switch Nut

250100002

Unavailable

72

Plunger Cap

570151100

$9.85

73

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

74

Female Terminal

561503100

$2.41

75

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
