Description

Price

1

Thrust Washer

711227390

Unavailable

2

Needle Bearing

420632070

$25.99

3

Needle Cage

711232655

Unavailable

4

Clutch Drum

711659203

Unavailable

5

O-RING - Call your local BRP dealership

293300018

Unavailable

6

THRUST WASHER - Call your local BRP dealership

420227600

Unavailable

7

Inner Plate

711659230

Unavailable

8

Plate 1.5 mm

711259915

Unavailable

9

Lamella 3 mm

711259907

Unavailable

10

Clutch Hub

711259876

Unavailable

11

Clutch Spring

711239741

Unavailable

12

Tab Washer

711245320

Unavailable

13

Nut M18

711242605

Unavailable

14

Retaining Plate

420259131

$70.99

15

Hub Thrust ass'y with Ball Bearing

711259143

Unavailable

16

Loctite 243, 10 ml

293800060

$21.49

17

Lock Washer

420945750

Unavailable

18

Hex. Screw M5 x 25

711241770

Unavailable

19

Thrust Washer

711427130

Unavailable

20

Clutch Ass'y | Includes 20 - 23.

711296093

Unavailable

20

Clutch | Includes 20 - 21.

711659170

Unavailable

21

Clutch Bushing

711233765

Unavailable

22

Sprag Clutch

711659240

Unavailable

23

Clutch Hub

711659180

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Hex. Nut, M22 X 1.5

420842239

$17.53

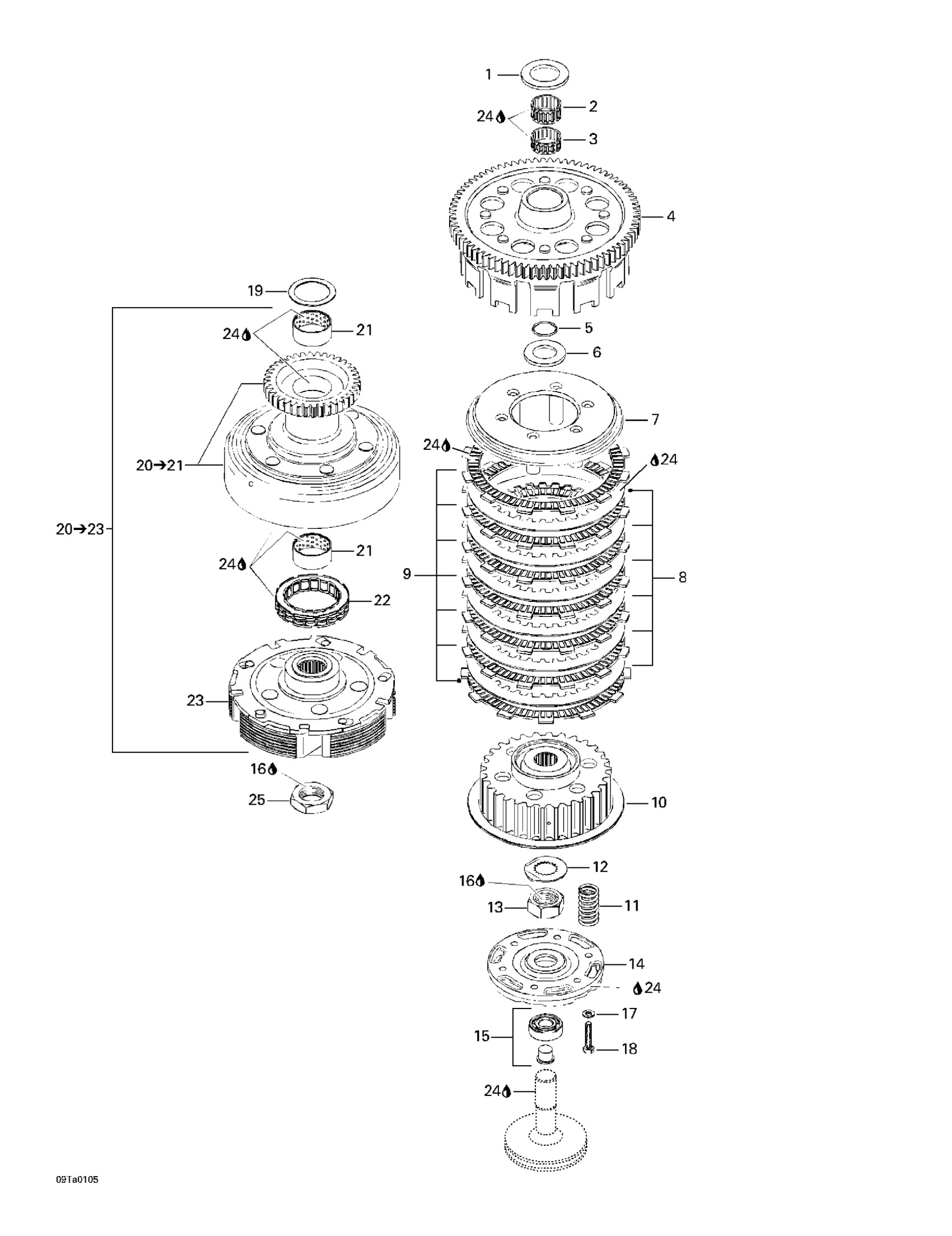

Can-Am Traxter Footshift, Green/vert, 2001 05- Clutch Diagram

Thrust Washer

Needle Bearing

Needle Cage

Clutch Drum

O-RING - Call your local BRP dealership

THRUST WASHER - Call your local BRP dealership

Inner Plate

Plate 1.5 mm

Lamella 3 mm

Clutch Hub

Clutch Spring

Tab Washer

Nut M18

Retaining Plate

Hub Thrust ass'y with Ball Bearing

Loctite 243, 10 ml

Lock Washer

Hex. Screw M5 x 25

Thrust Washer

Clutch Ass'y | Includes 20 - 23.

Clutch | Includes 20 - 21.

Clutch Bushing

Sprag Clutch

Clutch Hub

Not Available As Spare Part - Friction Washer

Hex. Nut, M22 X 1.5
