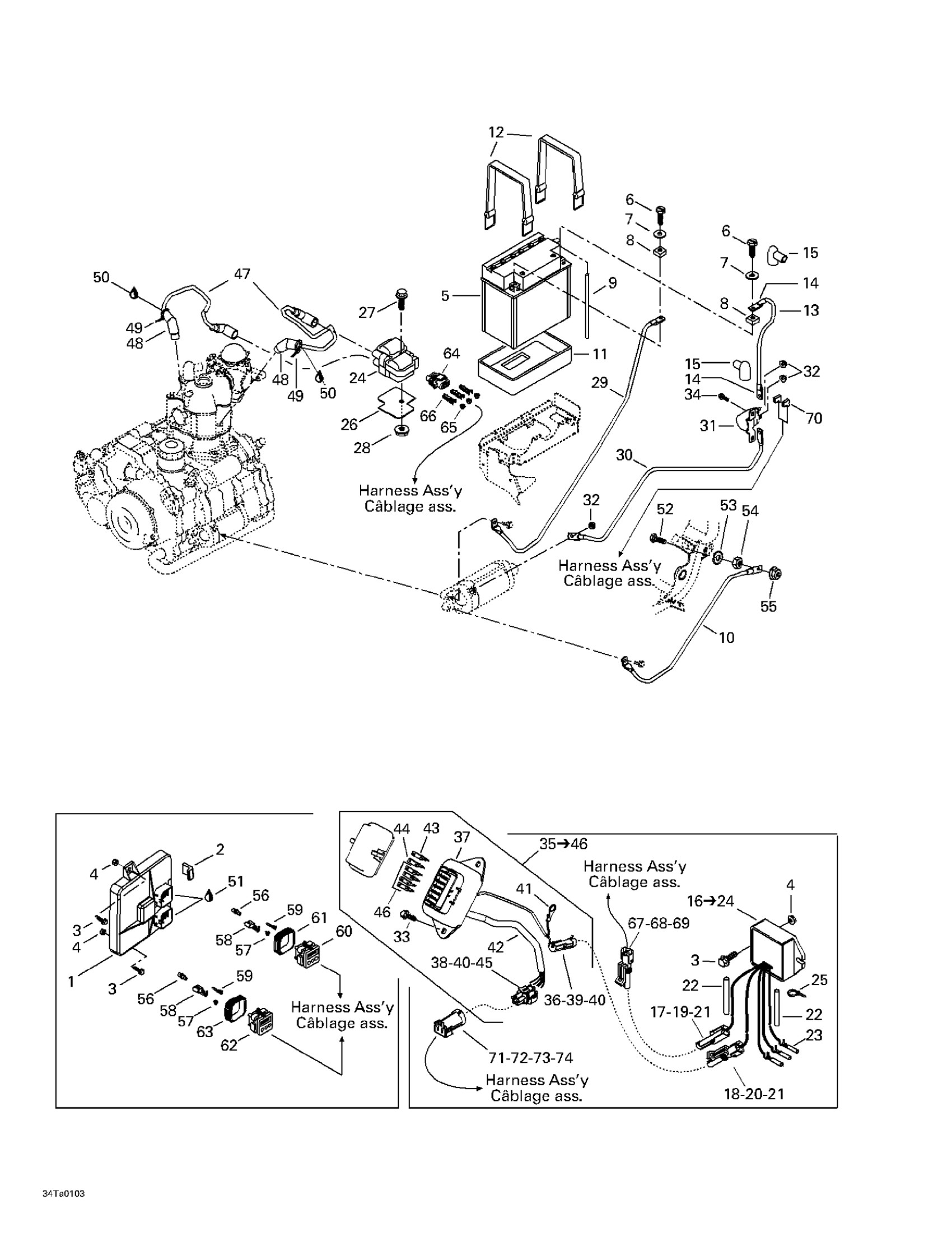

Can-Am Traxter Autoshift, 2001 10- Battery And Electrical Accessories Diagram

ELECTRONIC MODULE - Call your local BRP dealership

710000147

Unavailable

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Battery 19A | Includes 5 to 8

278001756

$153.36

Hex. Screw M6 X 16

207161644

$0.74

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

Hex. Nut M6

232061414

$0.53

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

Battery Ground Cable

710000022

Unavailable

Battery Lower Pad

278001234

Unavailable

Retainer Strap

293850097

$11.64

Cable Battery, no 6, meter)

278001690

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

VOLT REGULATOR ASS'Y - Call your local BRP dealership | Includes 18 to 26

710000100

Unavailable

Male Terminal | XT Models

278000222

$3.19

Female Terminal

278000223

$3.19

Female Housing, 1 Circuit

278000161

$9.59

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

Wire Seal

278000218

$4.39

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

Ignition Coil

278001546

$158.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Insulator Pad

710000073

$11.12

Hex. Flange Screw M6 X 50

207665044

$4.12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Ground Cable

710000023

Unavailable

STARTER POSITIVE CABLE - Call your local BRP dealership

710000136

Unavailable

Starter Relay

515176011

$62.49

Hex. Elastic Stop Nut M6

232561600

$1.15

Hex. Flange Screw M6 X 16

210261650

$1.67

Screw Hex. M6.3 x 19

210661940

Unavailable

Fuse Holder | Includes 27 - 38.

710000092

Unavailable

Male Terminal

409004300

$5.61

Fuse Box

710000029

Unavailable

Female Terminal

409007300

$0.45

Female Housing, 1 Circuit

278000161

$9.59

Wire Seal

278000218

$4.39

Wire Seal

710000048

$7.69

Open Barrel Terminal

278001392

$4.79

Tubing 6 Mm 3000Mm Long

219704425

$13.75

Fuse, 30 Amperes

410917200

$3.28

Fuse, 20 Amperes

409003900

$3.28

Female Housing, 5 Circuit

710000106

Unavailable

Fuse, 15 Amperes

278000343

$3.28

Ens Fil Bougie *Wire-Spark Kit | Includes 54 to 57

703500744

$64.49

Spark Plug Connector

420265248

$31.99

Tie Wrap 94 mm | 4X4

293750001

$1.03

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

*(Ormd) *Deoxit Aerosol *

293550034

$38.99

Hex. Screw M6 X 25

207162544

$1.15

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Nut M6

232061414

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

Male Terminal Housing, 26 Circuits

278001062

Unavailable

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

MALE TERMINAL HOUSING, 26 CIRCUITS - Call your local BRP dealership

278001063

Unavailable

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

Male Housing, 3 Circuits

278000997

$19.49

Wire Seal

278000999

$3.19

Female Terminal

278000998

$4.39

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

Female Terminal

409007300

$0.45

Wire Seal

710000048

$7.69

Female Terminal

409010300

$4.39

MALE HOUSING, 5 CIRCUITS - Call your local BRP dealership

710000107

Unavailable

Male Terminal

409004300

$5.61

Wire Seal

278000218

$4.39

Wire Seal

710000048

$7.69
