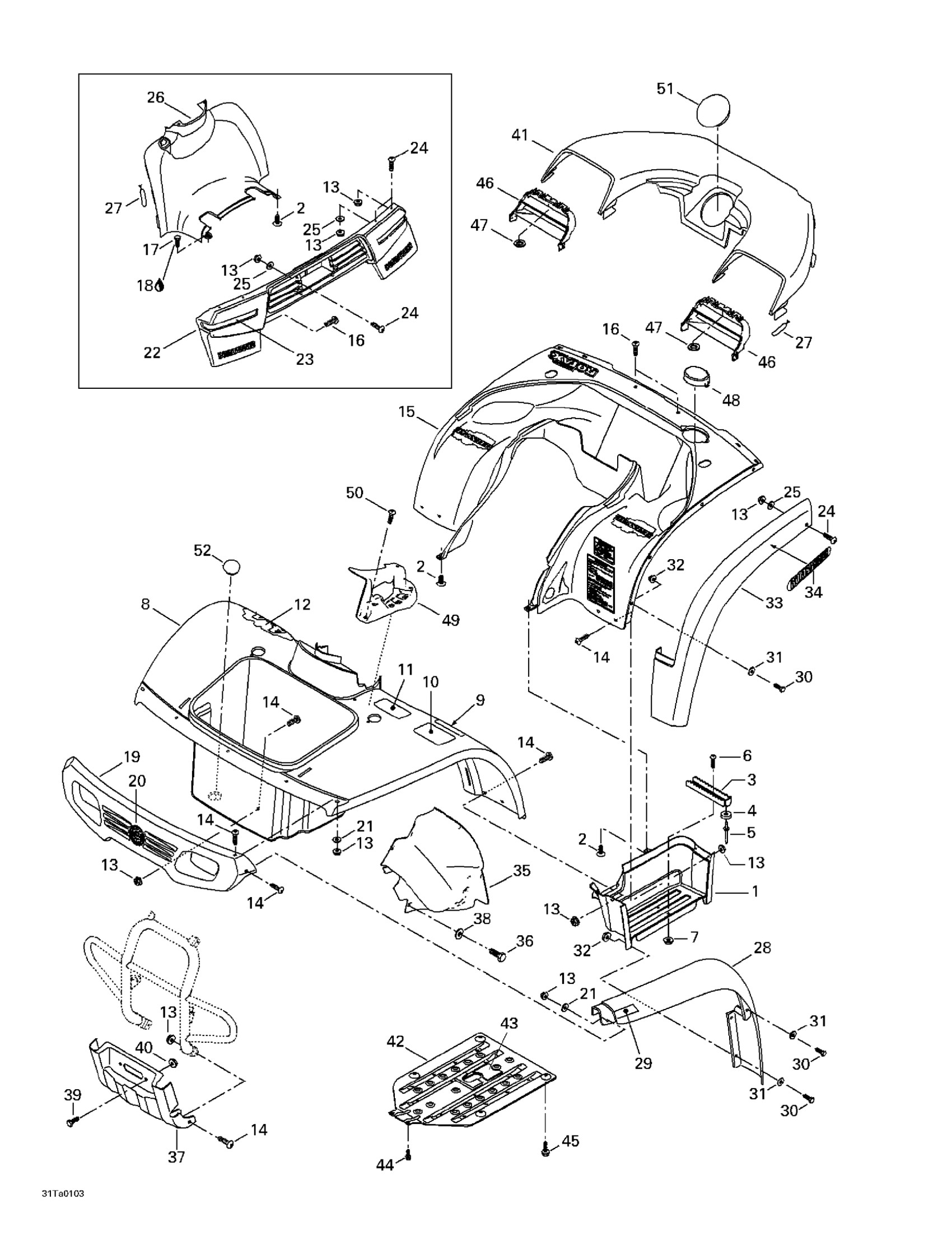

Can-Am Traxter Autoshift, 2001 09- Body And Accessories Diagram

RH Footboard, Black

705000017

Unavailable

LH FOOTBOARD, BLACK - Call your local BRP dealership

705000018

Unavailable

Black, Dart

293730011

$0.99

Foot Peg (7431 @ 7434)

705000228

Unavailable

Foot Pegs | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

705000279

Unavailable

Rubber Stopper

415018100

$2.49

Pop Rivet 1/8", Black

293150189

$0.27

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Front Fender Kit (Yellow)

703500119

Unavailable

Front Fender Kit (Red) | Includes 8 - 12. 7405/7406.

703500066

Unavailable

Front Fender Kit (Green) | 7407/7408.

703500067

Unavailable

Warning Label | Includes 9 - 10.

704900034

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

RH Rear Label (Red) | 7400/7401. 7413/7414. 7415/7416.

704900028

Unavailable

Front Label RH | 7417/7418.

704900068

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

Rear Fender Kit (Red) (English)

703500113

Unavailable

Rear Fender Kit (Green) (English)

703500114

Unavailable

Rear Fender, Yellow

703500112

Unavailable

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

Hex. Flange Screw M6 X 12

207661244

$2.11

Loctite 243, 10 ml

293800060

$21.49

Front Fascia Ass'y, black | Includes 21 To 22

703500011

Unavailable

BRP Logo 68mm

516008739

$16.99

Flat Washer

224060201

$1.26

REAR FASCIA ASS'Y, BLACK - Call your local BRP dealership | Includes 12 To 14

703500012

Unavailable

RH Rear Reflector

704900085

Unavailable

LH Rear Reflector

704900086

Unavailable

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

Flat Washer

224060201

$1.26

Tank Cover

705000010

Unavailable

Windshield Latch

570023800

$4.49

LH Front Mudguard Kit | Includes 35 - 36.

703500014

Unavailable

RH Front Mudguard Kit

703500015

Unavailable

LH FRONT REFLECTOR - Call your local BRP dealership

705000083

Unavailable

RH FRONT REFLECTOR - Call your local BRP dealership

705000026

Unavailable

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

Flat Washer

224060201

$1.26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

LH Rear Mudguard | Includes 40 - 41.

703500016

Unavailable

RH Rear Mudguard

703500017

Unavailable

Bombardier label | 7400/7401. 7413/7414.

704900026

Unavailable

LH TANK PROTECTOR - Call your local BRP dealership

705000133

Unavailable

RH TANK PROTECTOR - Call your local BRP dealership

705000134

Unavailable

Screw Hex. M6.3 x 19

210661940

Unavailable

Front Protection Plate, black

705000135

Unavailable

Flat Washer

224060201

$1.26

Hex. Flange Screw M10 X 25

207602544

$1.69

Hex. Flange Elastic Nut M10

233201414

$1.58

Fender Cover (Red) | 7405/7406.

705000192

Unavailable

Fender cover | 7407/7408.

705000193

Unavailable

Fender Cover, Yellow | Yellow

705000179

Unavailable

Plate Ass'y | Includes 48 - 49.

705000196

Unavailable

Rubber Protector

293830084

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

LH Grill, Black

705000180

Unavailable

RH Grill, Black

705000181

Unavailable

PUSH NUT - Call your local BRP dealership

250100000

Unavailable

COVER, BLACK - Call your local BRP dealership

705000132

Unavailable

Lever Indicator

705000081

Unavailable

Tuflock Phillips Plastic Screw

414745900

$1.69

CAP - Call your local BRP dealership

705000207

Unavailable

Rubber Cover

570041600

Unavailable
