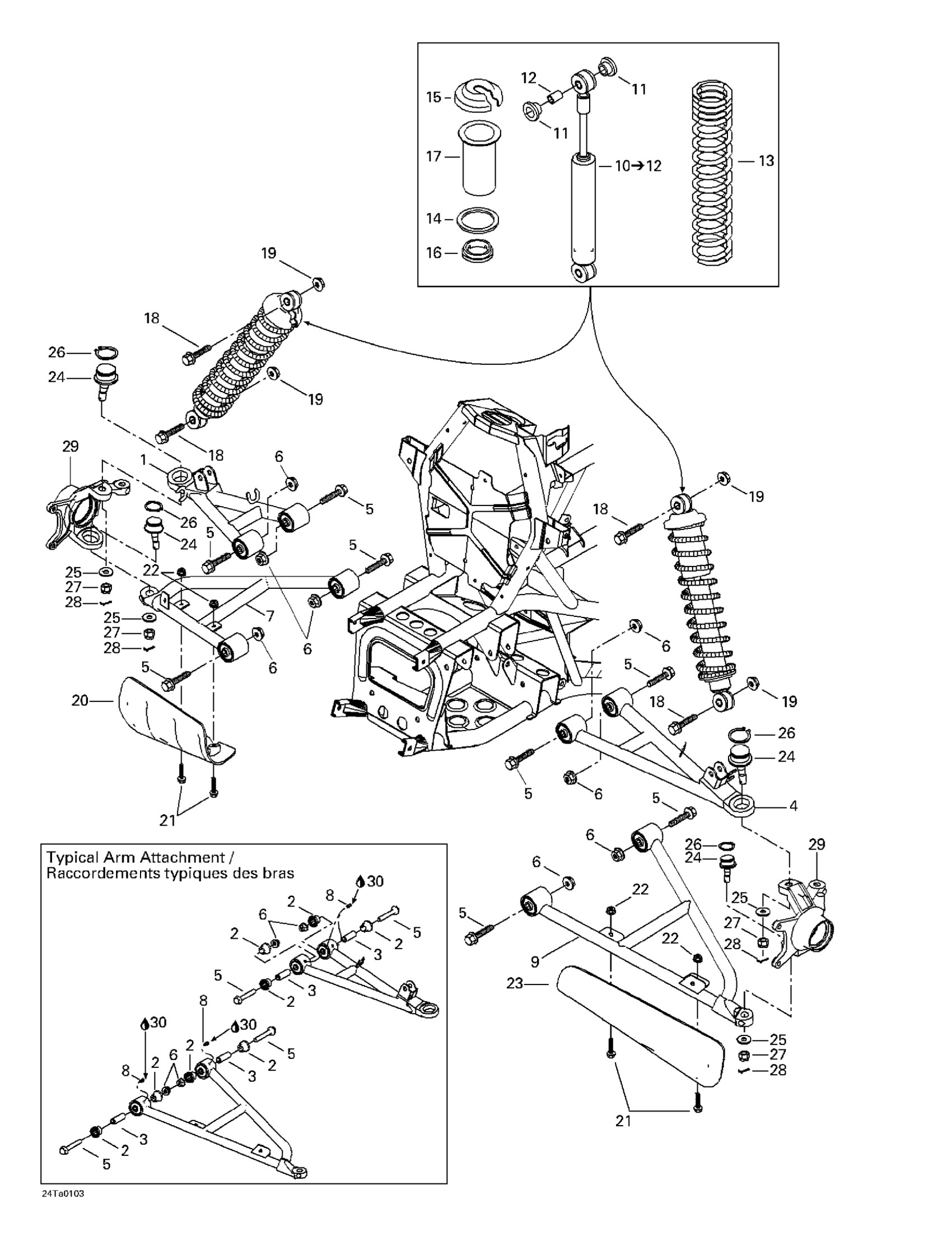

Can-Am Traxter Autoshift, 2001 07- Front Suspension Diagram

#

Description
Price

1

RH Upper Arm

706200152

Unavailable

2

Bushing

706200181

$3.14

3

Sleeve

706201587

$3.79

4

LH Upper Arm

706200155

Unavailable

5

Hex. Flange Screw M10 X 70

207607046

$2.96

6

Hex. Flange Elastic Nut M10

233201436

$2.11

7

RH Lower Arm (7431 @ 7434)

706200159

Unavailable

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200196

Unavailable

8

Grease Fitting

408200700

$3.49

9

LH Lower Arm (7431 @ 7434)

706200161

Unavailable

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200200

Unavailable

10

Front Shock | Includes 10 - 12.

706200137

Unavailable

11

CUSHION - Call your local BRP dealership

706200185

Unavailable

12

BUSHING - Call your local BRP dealership

706200186

Unavailable

13

FRONT SPRING - Call your local BRP dealership

706200006

Unavailable

14

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

15

Spring Stopper

706200881

$12.99

16

Spring seat

706000007

Unavailable

17

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

18

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

19

Hex. Flange Elastic Nut M10

233201414

$1.58

20

Arm Protector R.H

706200007

Unavailable

21

Hex. Flange Screw M6 X 16

207661644

$0.74

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Arm Protector L.H

706200009

Unavailable

24

Ball Joint

706200653

$44.99

25

Hardened Washer

503175400

Unavailable

26

Circlip 32 mm

293370009

$1.39

27

Hex. Castellated Nut M12

232221414

$3.17

28

Cotter Pin

211400017

$0.33

29

Knuckle Kit RH (7431 @ 7434) | Includes 63 - 73.

703500063

Unavailable

Knuckle Kit LH(7431 @ 7434)

703500064

Unavailable

RH Knuckle

709400095

Unavailable

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

30

Synthetic Grease, 400 G

293550010

Unavailable
