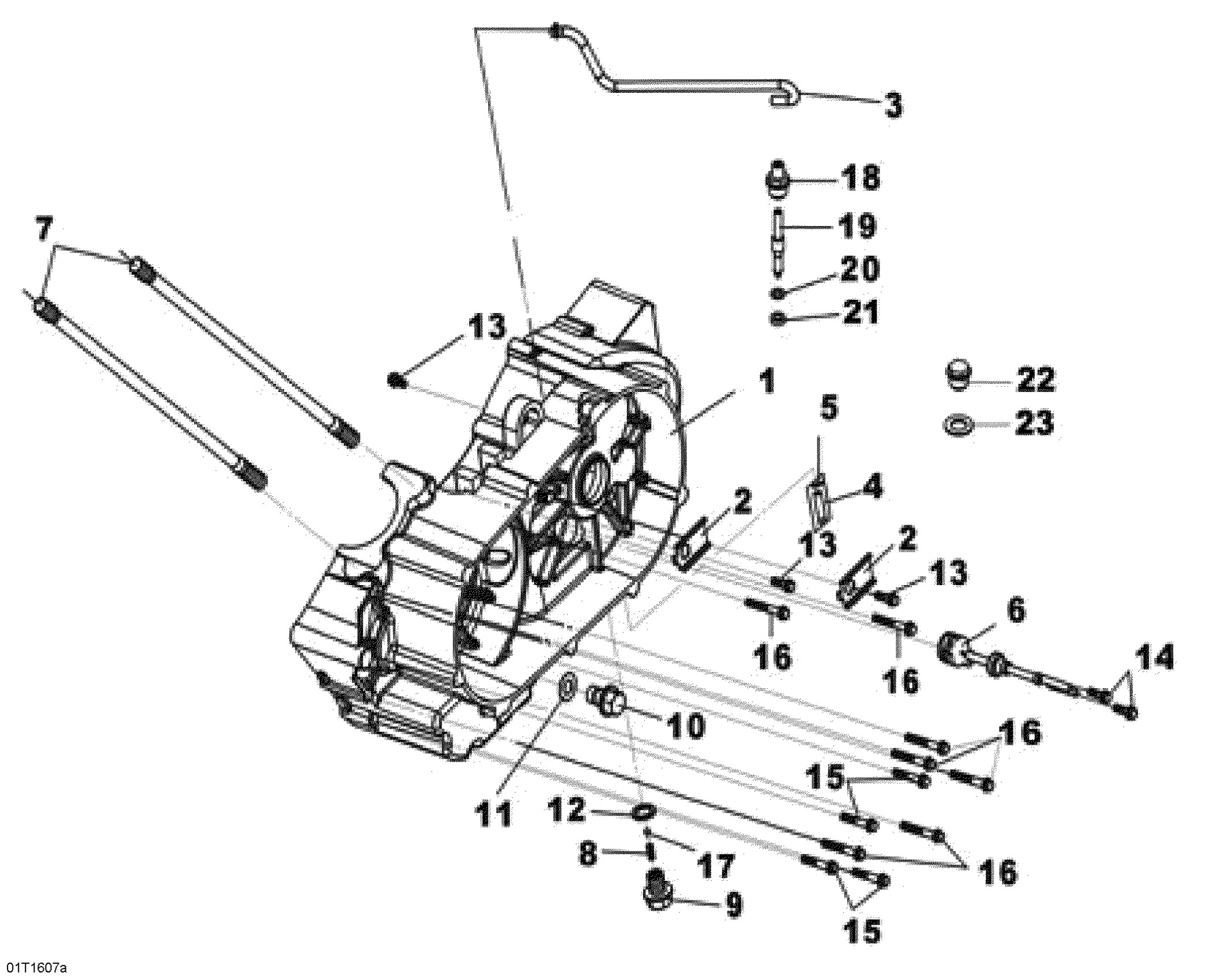

Can-Am DS 250, 2016 01- Left Crankcase Half Diagram

#

Description
Price

1

LH Crankcase Ass'y

S11200RB1000

$404.49

2

Setting Plate

S11205RB1000

$4.14

3

Breather Hose

S11221RB1000

$14.31

4

Drain Tube Ass'y

S11230RA1000

$4.39

5

Not Available As Spare Parts

NASP/NDPR

Unavailable

6

Change Sw

S3575ARB1020

$35.99

7

Cylinder Stud

S90032HMA000

$12.12

8

Spring Fixed Catch

S90051RB1000

$1.15

9

Drain Plug Screw

S90052RB1000

$2.19

10

Drain Plug Screw

S9280012000

$0.77

11

Washer 12 mm

S9410912000

$0.53

12

Drain Plug Screw Washer 14 mm

S9410914000

$0.53

13

Hex. Flange Screw M6 X 12

S960010601200

$0.72

14

Hex. Flange Screw M6 X 18

S960010601800

$0.42

15

Hex. Flange Screw M6 X 50

S960010605000

$0.77

16

Hex. Flange Screw M6 X 70

S960010607000

$1.04

17

Steel Ball

S9621112000

$6.67

18

Gear Fixing Bolt

S23434RCA000

Unavailable

19

METER GEAR - Call your local BRP dealership

S23433RCA000

Unavailable

20

Thrust Washer

S23435RCA000

Unavailable

21

OIL SEAL - Call your local BRP dealership

S91201RCA000

Unavailable

22

Sealing Bolt

S11206RB1000

$7.90

23

Sealing Washer

S90403RB1000

$1.15
