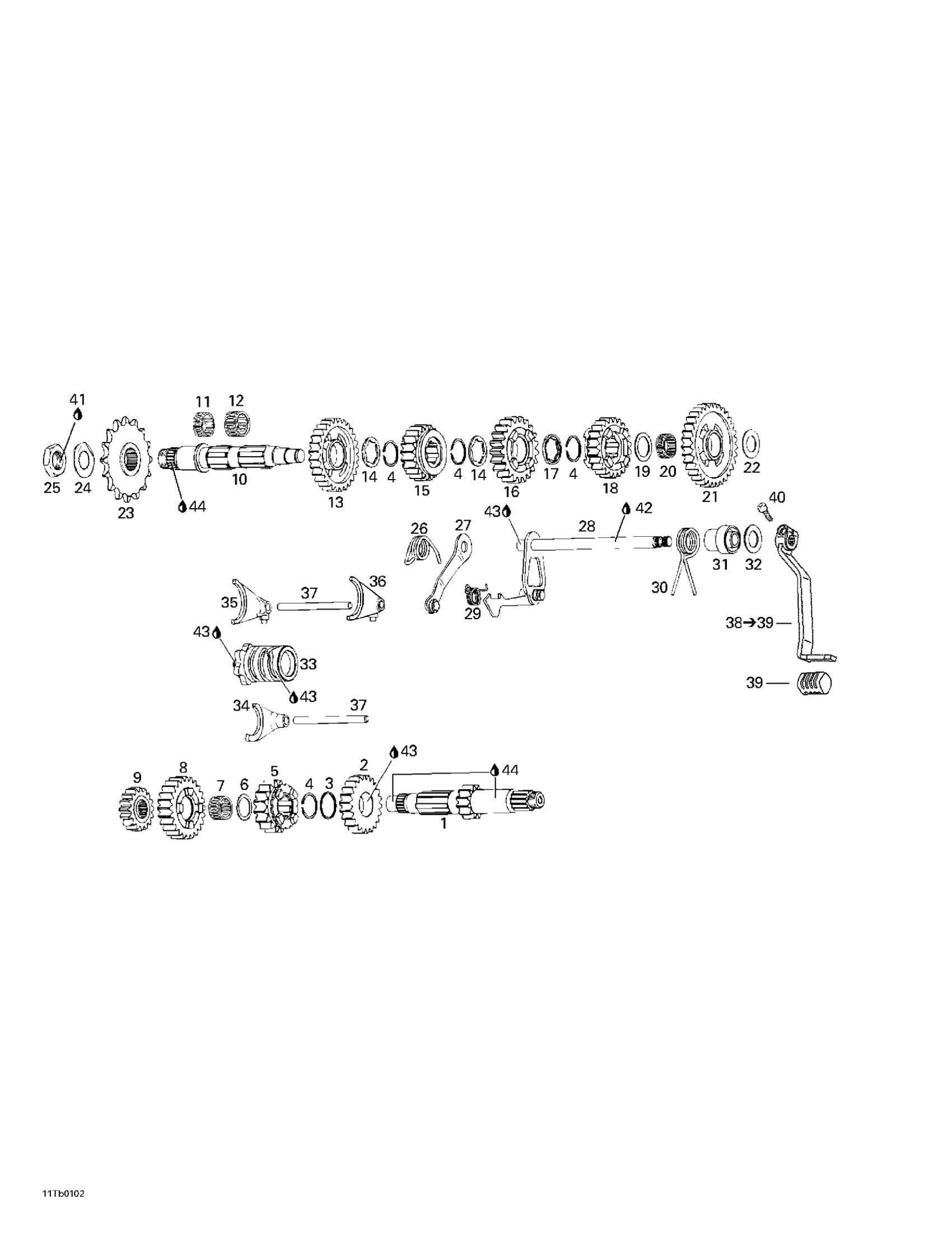

Can-Am DS 650, 7449, 2001 05- Transmission Diagram
#
1
Clutch Shaft (12 Teeth)
711220230
Unavailable
2
Intermediate Gear (21 Teeth)
711234715
Unavailable
3
Thrust Washer
711227825
Unavailable
5
Pinion Gear (18 Teeth)
711634333
Unavailable
6
Thrust Washer
711227445
Unavailable
7
Needle Bearing
711232805
Unavailable
8
Intermediate Gear (23 Teeth)
711234725
Unavailable
9
Pinion Gear (15 Teeth)
711234675
Unavailable
10
Main Shaft
711220730
Unavailable
11
NEEDLE BEARING - Call your local BRP dealership
420232520
Unavailable
13
Intermediate Gear (29 Teeth)
711634305
Unavailable
14
Thrust Ring
711627051
Unavailable
15
Pinion Gear (22 Teeth)
711634345
Unavailable
16
Intermediate Gear (26 Teeth)
711234705
Unavailable
17
Angular Ring
711627061
Unavailable
18
Pinion Gear (24 Teeth)
711634355
Unavailable
19
Thrust Washer
711244100
Unavailable
21
Gear (33 Teeth)
711634290
Unavailable
22
THRUST WASHER - Call your local BRP dealership
420227430
Unavailable
23
Chain Wheel
711236470
Unavailable
26
Index Spring
711239095
Unavailable
27
Index Lever
711248346
Unavailable
28
Shift-Shaft
711237929
Unavailable
29
Spring
711239075
Unavailable
30
Spring
711239082
Unavailable
31
Spacer
711247900
Unavailable
32
THRUST WASHER - Call your local BRP dealership
420227430
Unavailable
33
Drum-Shift
711258275
Unavailable
34
Fork-Shift
711258037
Unavailable
35
Fork-Shift
711258027
Unavailable
36
Fork-Shift
711258017
Unavailable
37
Fork Spindle
711258782
Unavailable
38
SHIFTER PEDAL - Call your local BRP dealership
711248317
Unavailable
39
Rubber Sleeve
711260205
Unavailable
43
Not Available As Spare Part - Friction Washer
Unavailable
