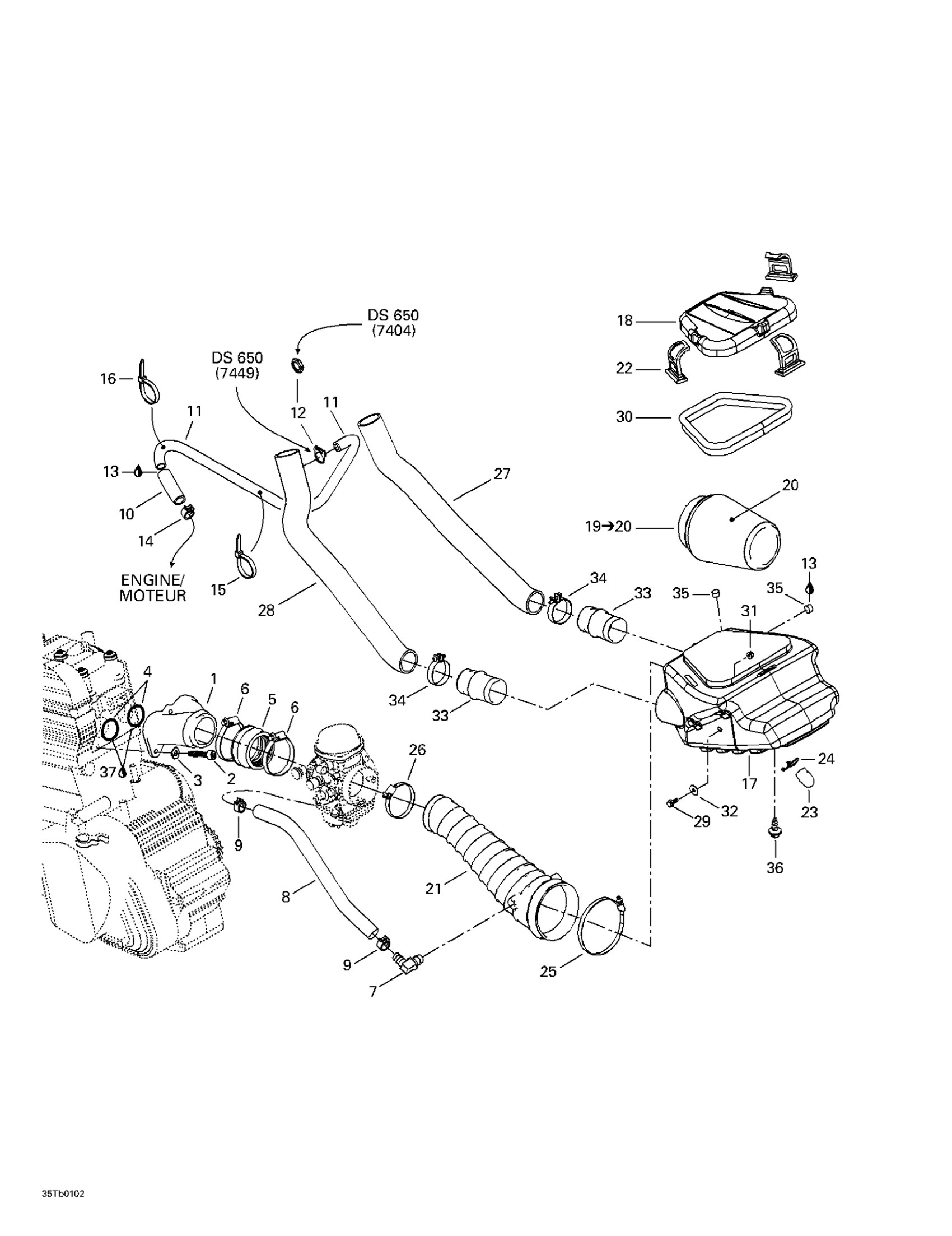

Can-Am DS 650, 7449, 2001 02- Air Intake System Diagram

Intake Adaptor

711267230

Unavailable

Socket Head Screw M6 X 25

205062544

$1.15

Flat Washer 6 mm

234061410

$1.36

O-Ring

293300059

$7.51

Carburator Flange 52 mm

420267240

$46.49

Norma Gear Clamp

293650090

$4.54

Elbow Fitting

414523600

$4.86

OIL LINE - Call your local BRP dealership

414644800

Unavailable

Spring Clamp

414655700

$0.72

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

Was 276000001 Hose 12.5 mm

219704394

$51.99

Lock Nut

250100019

Unavailable

HOSE CLAMP - Call your local BRP dealership

293650119

Unavailable

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

Crimp Clamp, 15.3-706R

293650047

$3.29

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Air Silencer

707800021

Unavailable

Air Silencer Cover

707800022

Unavailable

Air Filter | Includes 3 To 4

707800023

Unavailable

Foam

707800074

Unavailable

Intake Adaptor

707800142

$62.99

COVER LATCH - Call your local BRP dealership

708200003

Unavailable

Drain Tube

707800006

Unavailable

Clip Retainer

707800005

Unavailable

Norma Gear Clamp

514052983

$15.89

Norma Gear Clamp

293650118

$13.16

Hose Vent

291000693

Unavailable

Vent Hose

707800093

Unavailable

Vent Hose

707000131

Unavailable

Vent Hose

707800094

Unavailable

Hex. Flange Screw M6 X 20

207662044

$2.00

Neoprene Seal 3000Mm Long

219704371

$51.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer

224060201

$1.26

DEFLECTOR - Call your local BRP dealership

707800038

Unavailable

GEMI CLAMP - Call your local BRP dealership

293650160

Unavailable

Cap

572051500

$5.89

Mount Dart

293730040

$1.04

Grease, Super Lube

293550030

$28.99
