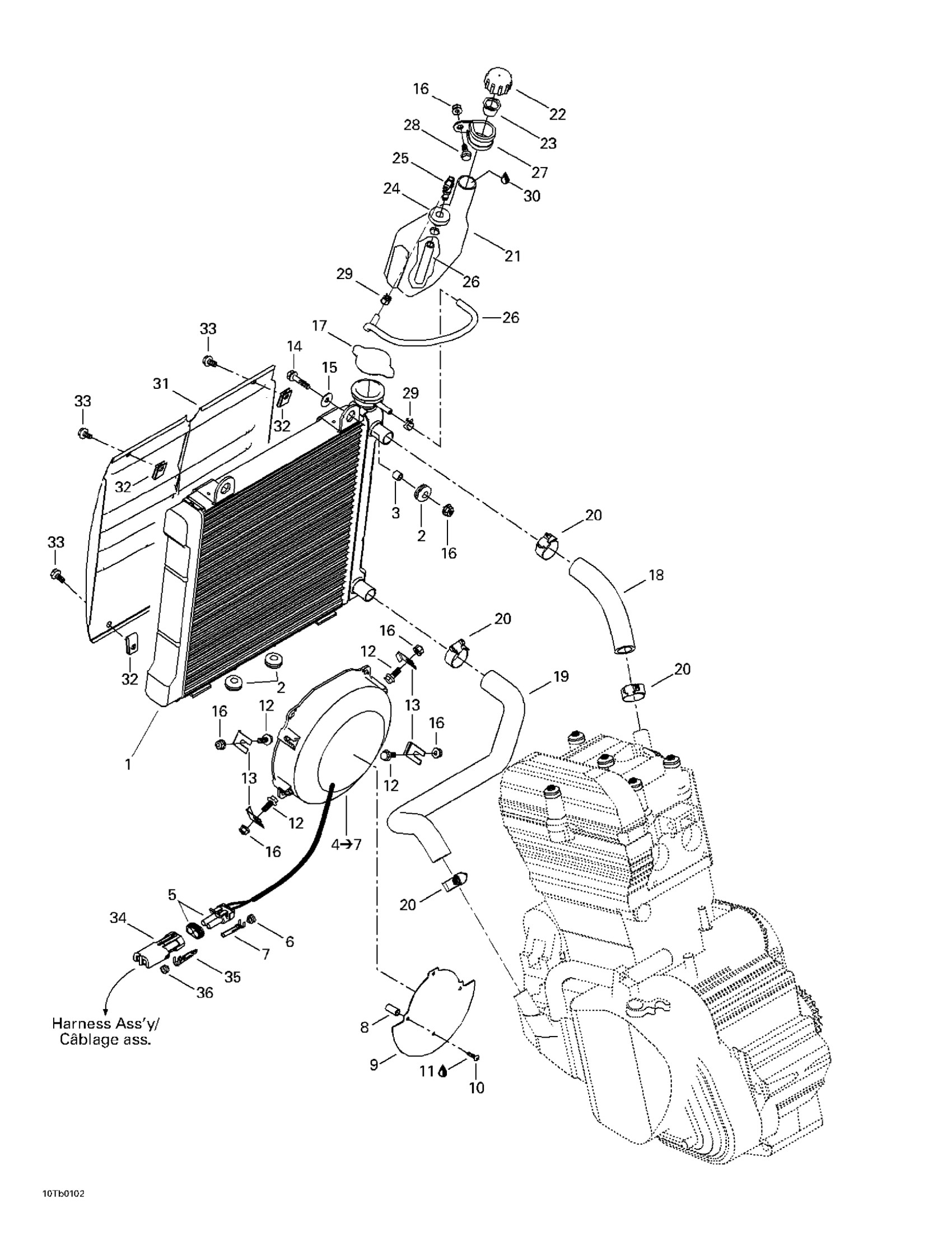

Can-Am DS 650, 7449, 2001 01- Cooling System Diagram

#

Description
Price

1

Radiator

709200019

Unavailable

2

Grommet

709000582

$4.69

3

Bushing

293900105

$7.65

4

Fan Ass'y

709200020

Unavailable

5

Male Connector, 2 Circuits

278000220

$15.49

6

Wire Seal

710000048

$7.69

7

Female Terminal

409007300

$0.45

8

Spacer

707000058

$13.49

9

Heat Shield

709200041

Unavailable

10

Tapping Screw M4.2 X 25

209642590

Unavailable

11

Loctite 271, 10 ml

293800005

$26.99

12

Hex. Screw M6 X 16

207161644

$0.74

13

Shim

709200046

Unavailable

14

Hex. Flange Screw M6 X 25

207662544

$0.64

15

Flat Washer

224060201

$1.26

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Radiator Pressure Cap

709200207

$25.49

18

Radiator Inlet Hose

709200021

Unavailable

19

Radiator Outlet Hose

709200022

Unavailable

20

Tridon Gear Clamp

293650051

$4.19

21

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

22

TANK CAP - Call your local BRP dealership

709200009

Unavailable

23

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

24

Grommet

709200285

$9.69

25

Elbow Male Connector

414580600

$4.23

26

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

27

Hose Anchor

709200036

$11.12

28

Hex. Flange Screw M6 X 16

207661644

$0.74

29

Spring Clamp

414554800

$0.88

30

ANTIFREEZE BOTTLE12X1 - Call your local BRP dealership

219700362

Unavailable

31

Radiator Protector

709200037

Unavailable

32

Panel Nut M6 X 1.0

250100198

$2.11

33

Hex. Flange Screw M6 X 12

207661244

$2.11

34

Female Housing, 2 Circuits

278000217

$9.59

35

Male Terminal

409004300

$5.61

36

Wire Seal

278000218

$4.39
