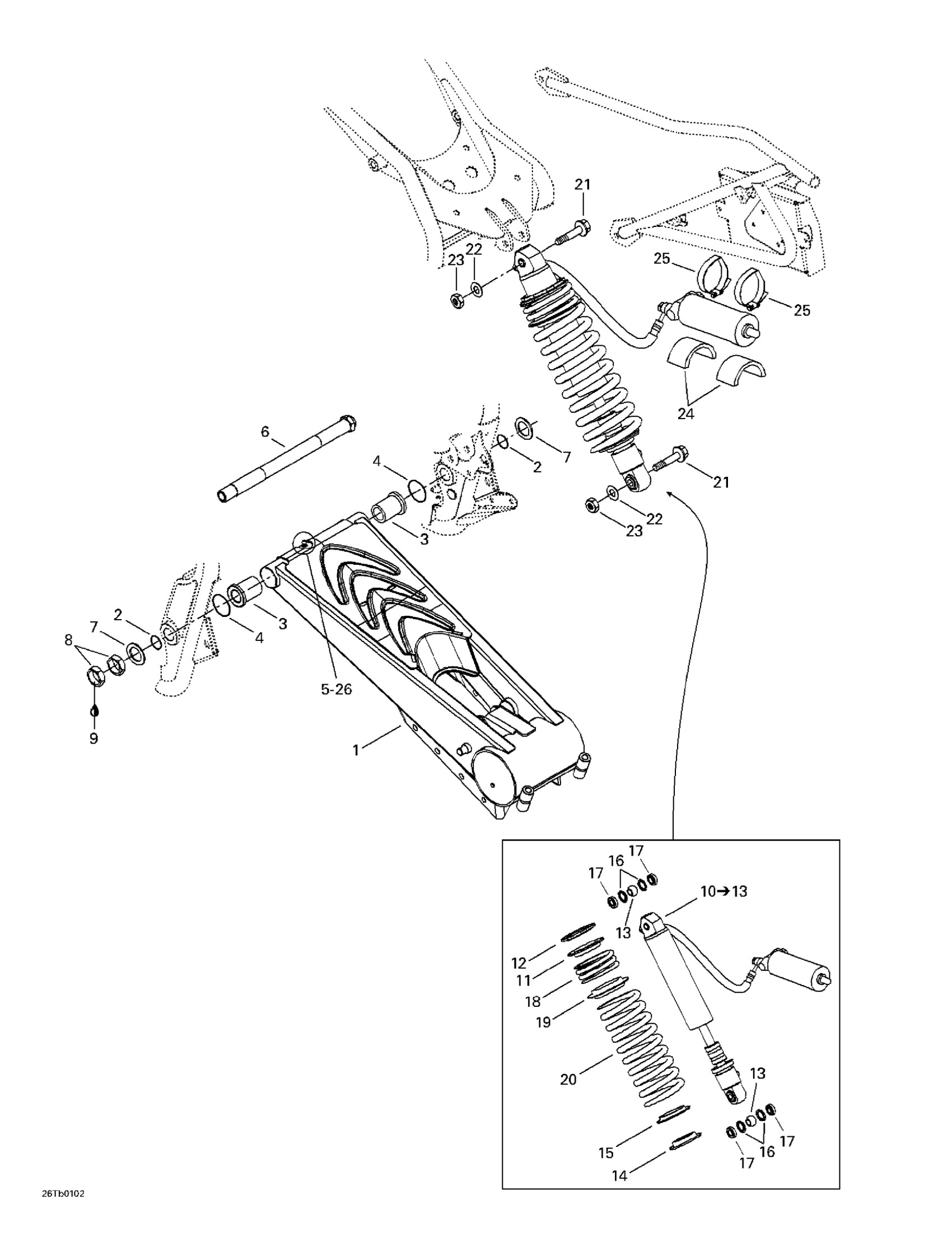

Can-Am DS 650, 7404, 2001 08- Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000080

Unavailable

2

O-RING - Call your local BRP dealership

293300074

Unavailable

3

Cushion

706000089

Unavailable

4

O-Ring

293300068

$7.65

5

Grease Fitting

408200700

$3.49

6

PIVOT BOLT - Call your local BRP dealership

706000102

Unavailable

7

WASHER - Call your local BRP dealership

293050003

Unavailable

8

JAM NUT M20 - Call your local BRP dealership

250100009

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Rear Shock | Includes 7 - 10.

706000058

Unavailable

11

SHOCK SPRING STOPPER - Call your local BRP dealership

706000062

Unavailable

12

STOPPER RING - Call your local BRP dealership

706000082

Unavailable

13

Ball Joint

706000105

Unavailable

14

SPRING STOPPER - Call your local BRP dealership

706000061

Unavailable

15

SPRING GUIDE - Call your local BRP dealership

706000060

Unavailable

16

SEAL - Call your local BRP dealership

293250111

Unavailable

17

CUSHION - Call your local BRP dealership

706000103

Unavailable

18

Rear Spring (Short)

706000059

Unavailable

19

Spring Spacer

706000079

Unavailable

20

Rear Spring (Long)

706000077

Unavailable

21

Hex. Flange Screw M12 X 60

207626046

$7.41

22

Washer

732900048

Unavailable

23

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

24

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

25

Norma Gear Clamp

293650118

$13.16

26

Synthetic Grease, 400 G

293550010

Unavailable
