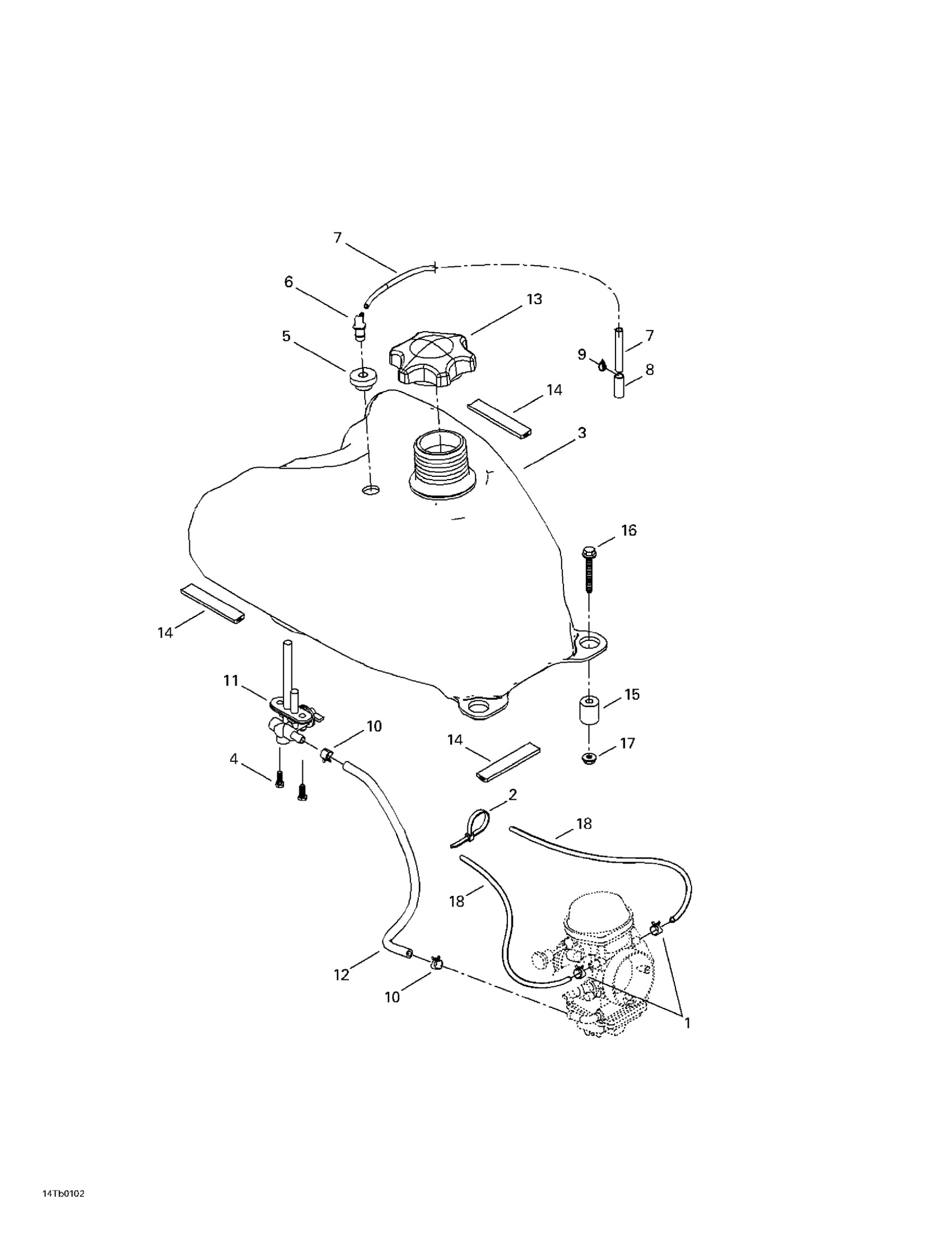

Can-Am DS 650, 7404, 2001 02- Fuel System Diagram

#

Description
Price

1

Spring Clamp

414420700

$0.72

2

Tie-Rap 180 mm

414115200

$0.11

3

FUEL TANK - Call your local BRP dealership

709000010

Unavailable

4

Hex. Screw M5 X 14

207151444

$0.87

5

Grommet

570045500

$6.69

6

Male Connector

414814100

$2.22

7

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

8

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

9

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

10

Spring Clamp

414655700

$0.72

11

FUEL VALVE - Call your local BRP dealership

709000011

Unavailable

12

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

13

Fuel Tank Cap 91 Octane

513033722

$22.49

14

Neoprene Seal (1PAC=3M)

219704364

$27.49

15

SPACER - Call your local BRP dealership

705000114

Unavailable

16

Hex. Flange Screw M8 x 60

207686044

$3.07

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Hose

707200131

Unavailable
