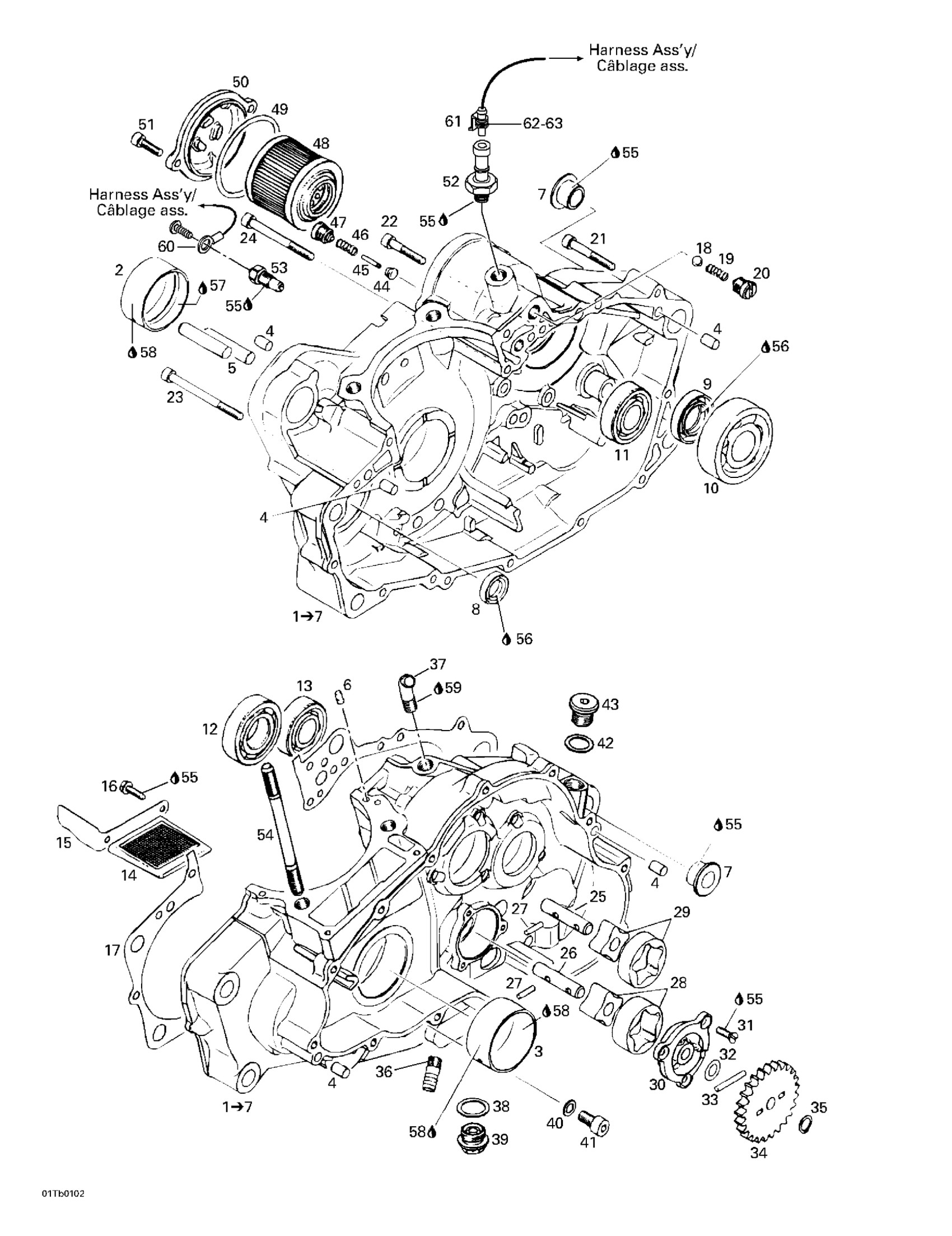

Can-Am DS 650, 7404, 2001 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711296346

Unavailable

2

Bushing

711233680

Unavailable

3

Bushing

711233675

Unavailable

4

Center Pin 8 X 12

420632010

$4.01

5

Location Pin 10 M6x50

420229302

$3.17

6

Drive Pin 5 X 10

420929650

$1.68

7

Sleeve

711247320

Unavailable

8

Oil Seal

711430550

Unavailable

9

OIL SEAL - Call your local BRP dealership

420230395

Unavailable

10

Ball Bearing

420932822

$30.49

11

Ball Bearing 6303

711232501

Unavailable

12

Ball Bearing 6205

420232764

$25.99

13

Ball Bearing

420932816

$42.49

14

Oil Sieve

420256322

$28.49

15

Oil Sieve Guide

711256430

Unavailable

16

Taptite Screw M5 X 16

420941928

Unavailable

17

Gasket

711250910

Unavailable

18

BALL 8 MM - Call your local BRP dealership

420932830

Unavailable

19

Spring (Compression)

711239810

Unavailable

20

Valve Pin Screw

711256170

Unavailable

21

Socket Head Screw M6 x 45

711241822

Unavailable

22

Socket Head Screw M6 x 35

711241810

Unavailable

23

Socket Head Screw M6 x 75

711240531

Unavailable

24

Socket Head Screw M6 x 65

711241262

Unavailable

25

Oil Pump Shaft

711220762

Unavailable

26

Oil Pump Shaft

711220760

Unavailable

27

Needle Pin

420232731

$4.01

28

Oil Pump Rotor, Suction

420256681

$35.99

29

Oil Pump Rotor, Pressure

420256671

$33.99

30

Oil Pump Cover

711210642

Unavailable

31

Torx Head Screw M5 X 16

420640823

$1.90

32

Thrust Washer

420827590

$4.01

33

Needle Pin

420232431

$4.39

34

Oil Pump Gear (25 Teeth)

711234560

Unavailable

35

Snap Ring

420245330

$1.79

36

Hose Nipple

711256330

Unavailable

37

Angle Tube

711924245

Unavailable

38

Crush Washer

420552280

$3.70

39

Drain Plug M18 X 1.5

420840278

$23.99

40

Sealing Ring

420950141

$2.00

41

Socket Head Screw M8 X 16

205081660

Unavailable

42

O-Ring

420430622

$4.44

43

Plug Screw M16 x 1,5

711240232

Unavailable

44

Retaining Valve

711260570

Unavailable

45

Valve Pin

711256150

Unavailable

46

Compression Spring

711239280

Unavailable

47

Valve Pin Screw

711256170

Unavailable

48

Oil Filter

711256186

Unavailable

Oil Filter

420256188

$13.77

49

O-Ring

420230923

$3.17

50

Oil Filter Cover

711210411

Unavailable

Oil Filter Cover | 7449.

711610230

Unavailable

51

Socket Head Screw M6 X 20

205062044

$1.26

Socket Head Screw M6 X 30

205063044

$1.69

52

Inter.Press.Hui*Switch-Oil Pressure

420856539

$43.99

53

Position Switch

420241856

$35.99

54

Stud M10 x 223

711640470

Unavailable

55

Loctite 243, 10 ml

293800060

$21.49

56

Grease, Super Lube

293550030

$28.99

57

Not Available As Spare Part - Friction Washer

Unavailable

58

Was 420297616 Klueber Grease, 60g

219704464

$23.99

59

Loctite 277, 10 ml

293800073

Unavailable

60

OPEN BARREL - Call your local BRP dealership

710000112

Unavailable

61

Male Housing, 1 Circuit

278001012

$16.86

62

Female Terminal

278001014

$3.28

63

Wire Seal

278001013

$3.28
