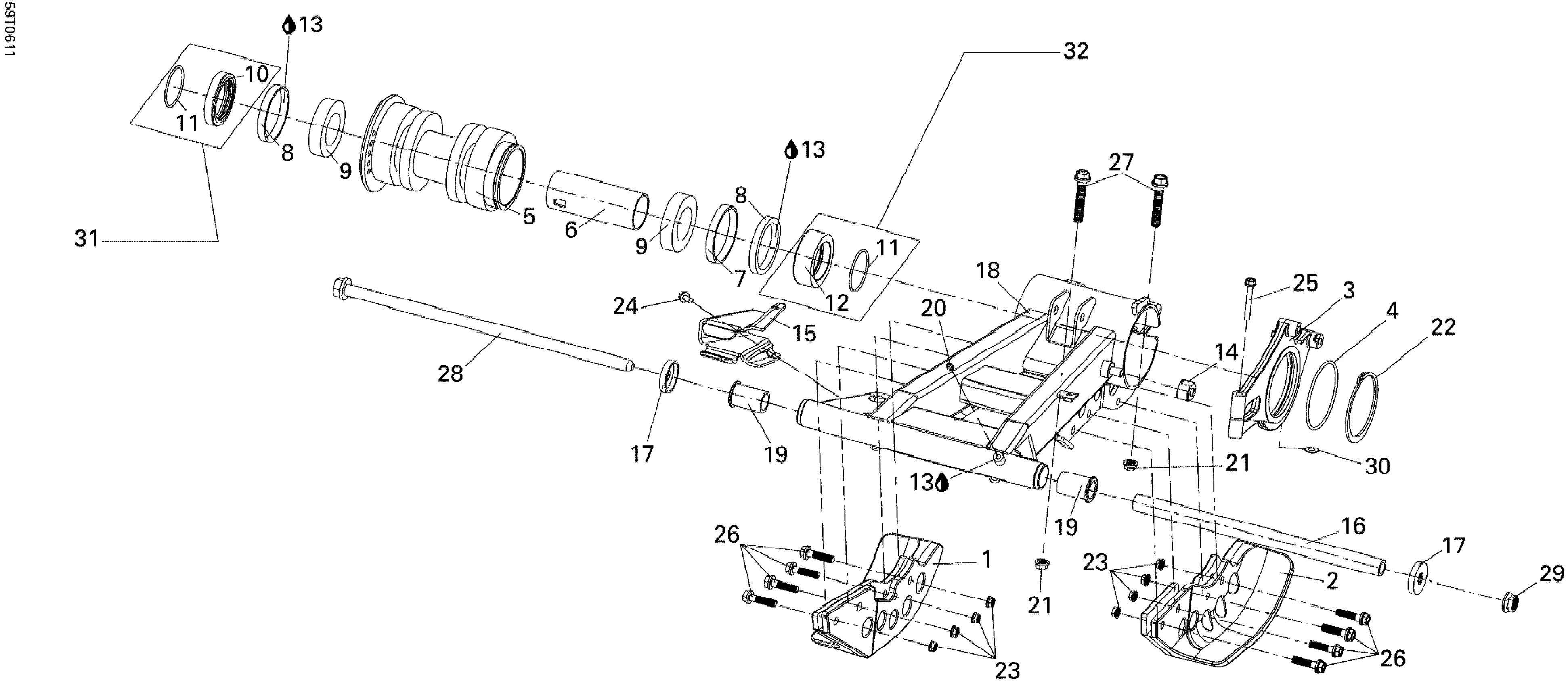

Can-Am DS 250 NA / Inter, 2006 08- Rear Swing Arm Diagram

#

Description
Price

1

RH Skid Plate

S40150RCA000

$25.99

2

LH Skid Plate

S40160RCA000

$25.99

3

Rear Brake Caliper Bracket

S42318RCA000

$45.49

4

O Ring

S42319RCA000

$5.72

5

Rear Axle Housing Ass'y

S4231ARCA000

$254.99

6

AXLE HOUSING SPACER - Call your local BRP dealership

S42311RCA000

Unavailable

7

Steel Collar

S42312RCA000

$16.88

8

Oil Seal

S91206RCA000

$7.90

9

Ball Bearing

S961506008310

$77.49

10

Not Available As Spare Parts

NASP/NDPR

Unavailable

11

Not Available As Spare Parts

NASP/NDPR

Unavailable

12

Not Available As Spare Parts

NASP/NDPR

Unavailable

13

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

14

Locking Collar

S52201RCA000

$10.28

15

Chain Guide

S52205RCA000

$14.74

16

Pivot Spacer

S52208RCA000

$19.49

17

Pivot Dust Seal

S52209RCA000

$8.64

18

Swing Arm

S52200RCA000

$227.99

19

Pivot

S52210RCA000

$17.58

20

Grease Fitting

408200700

$3.49

21

Flanged Nylon Nut 10 mm

S90304RCA000

$5.66

22

Circlip

S91301RCA000

$11.12

23

Flanged Nut 10 mm

S9405008070

$0.46

24

Flanged Bolt M6 X 12

S958010601207

$0.42

25

Hex. Flange Screw M6 X 45

207664544

$1.46

26

Flanged Bolt M8 X 30

S958010803007

$0.77

27

Flanged Bolt M10 X 65

S964001006508

$1.08

28

Pivot Bolt

S90103RCA000

$33.99

29

Self Lock Nut

S90305GW090A

Unavailable

30

Washer

S9410206000

Unavailable

31

RH Axle Collar Ass'y

S4011ARCA000

$17.58

32

LH Axle Collar Ass'y

S4011BRCA000

$17.58
