Description

Price

1

Hex. Flange Screw M10 X 55

207605546

$2.11

2

Hex. Flange Screw M10 X 6

207606046

$4.12

3

Hex. Flange Screw M10 X 65

207606536

$4.44

4

Hex. Flange Elastic Nut M10

233201414

$1.58

5

Hex. Flange Elastic Nut M10

233201436

$2.11

6

Hex. Flange Elastic Nut M16

233211466

$1.99

7

Hex. Flange Elastic Nut M6

233261494

$1.58

8

Hex. Flange Elastic Nut M8

233281434

$2.11

9

Flat Washer M8

234081430

$2.11

10

Torx Screw M6 X 20

250000722

$1.68

11

Grease Fitting

250000315

$5.82

12

Flat Washer M17

250200112

$7.99

13

Seal

293200144

$5.09

15

Grease Fitting 90°

293550056

$1.15

16

Ball Bearing

293350145

$13.75

17

Spacer

706002259

$28.99

18

Rear Shock | Includes 40 to 42

706001904

$349.99

19

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Package XXC Black

706002035

Unavailable

19

GREEN SPRING - Call your local BRP dealership | Package XXC Digital Camo

706001836

Unavailable

20

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | STD

706000955

Unavailable

21

Swaybar

706000988

$126.99

22

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

23

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

24

Sway Bar Linkage

706001020

$13.99

25

Stabilizer Bar Bushing

706004640

$8.89

26

Bushing Holder

706001099

$33.99

27

Axial Pivot M16

706001664

$72.99

28

Black LH Swing Arm

706001860

$296.99

28

YELLOW LH SWING ARM - Call your local BRP dealership | XXC

706001868

Unavailable

29

Black RH Swing Arm

706001861

$296.99

29

Yellow RH Swing Arm | XXC

706001869

$296.99

30

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

31

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

32

Spacer

706001282

$12.99

33

Rear Shock | Package-XXC, Includes 33a to 33d, 41, 42, 44

706001908

$719.99

33a

O-Ring Bushing

715900209

$14.75

33b

Bushing | XTP

706201648

$15.49

33c

Spherical Bearing

715900251

$82.99

33d

Retaining Ring

715900252

$12.49

34

Hex. Screw M8 X 85

250001035

$1.89

40

Bushing | Renegade STD

706201584

$14.82

41

Bushing Sleeve | XTP

706201586

$33.99

42

Bushing Sleeve | XTP

706201585

$33.99

44

Interior Bushing | XTP

715900210

$15.82

100

Not Available As Spare Parts

XXX

Unavailable

101

Not Available As Spare Parts

XXX

Unavailable

103

Not Available As Spare Parts

XXX

Unavailable

104

Not Available As Spare Parts

XXX

Unavailable

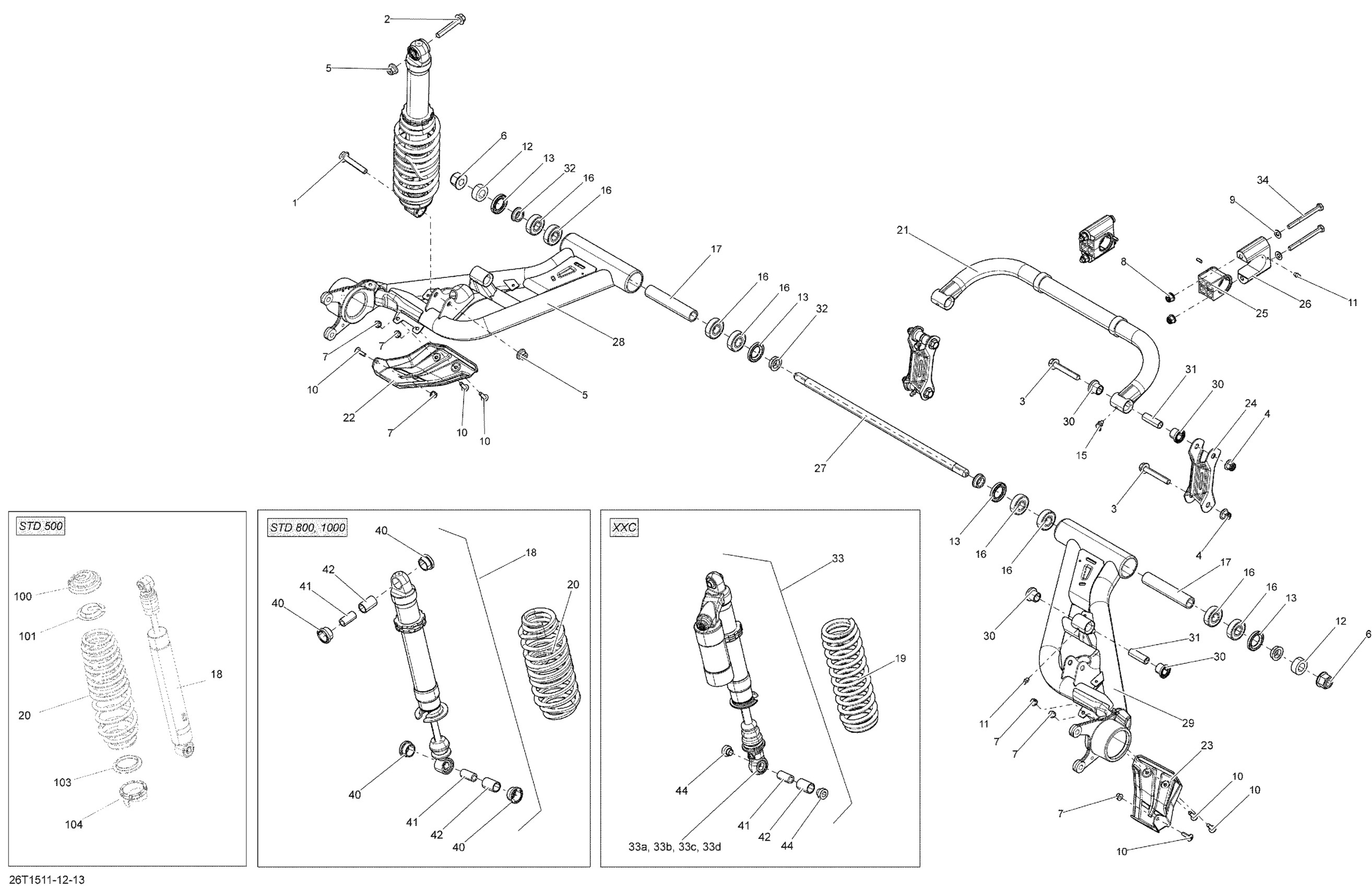

Can-Am Renegade 1000 EFI, 2015 08- Rear Suspension _26T1513 Diagram

Hex. Flange Screw M10 X 55

Hex. Flange Screw M10 X 6

Hex. Flange Screw M10 X 65

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M16

Hex. Flange Elastic Nut M6

Hex. Flange Elastic Nut M8

Flat Washer M8

Torx Screw M6 X 20

Grease Fitting

Flat Washer M17

Seal

Grease Fitting 90°

Ball Bearing

Spacer

Rear Shock | Includes 40 to 42

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | Package XXC Black

GREEN SPRING - Call your local BRP dealership | Package XXC Digital Camo

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | STD

Swaybar

LH PROTECTOR - Call your local BRP dealership

RH PROTECTOR - Call your local BRP dealership

Sway Bar Linkage

Stabilizer Bar Bushing

Bushing Holder

Axial Pivot M16

Black LH Swing Arm

YELLOW LH SWING ARM - Call your local BRP dealership | XXC

Black RH Swing Arm

Yellow RH Swing Arm | XXC

Suspension Arm Bushing Kit | Includes 4

Suspension Arm Bushing Kit | Includes 4

Spacer

Rear Shock | Package-XXC, Includes 33a to 33d, 41, 42, 44

O-Ring Bushing

Bushing | XTP

Spherical Bearing

Retaining Ring

Hex. Screw M8 X 85

Bushing | Renegade STD

Bushing Sleeve | XTP

Bushing Sleeve | XTP

Interior Bushing | XTP

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
