Description

Price

1

CVT Air Guide

420612304

$194.99

2

O-Ring

420430408

$5.29

3

O-Ring

420631089

$5.29

4

Hex.Screw M6 X 20

420441311

$5.18

5

Flat Washer

224061121

$0.53

6

Elastic Stop Nut M6

232561434

$1.99

7

Gasket

420430126

$41.49

8

Governor Cup Ass'y | Includes 6 to 9

420280522

$439.99

9

Slider Shoe Set

420281296

$65.49

10

Roller Axle

417223257

$6.99

11

Roller

417223767

$11.59

12

Outer Haft

420280467

$329.99

13a

Centrifugal Lever Kit (Set Of 6) | Includes 13a to 16

420248606

$142.99

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring, Drive Pulley

420238617

$29.49

18

Seat Spring

420627578

$35.99

19

Drive Pulley Clutch

420257195

$114.99

20

Ball Bearing

420632377

$49.99

21

Retaining Ring

420245951

$5.31

22

Inner Half

420280374

$339.99

23

Spring Sleeve

420229577

$18.49

24

Spring

420239134

$3.06

25

Thrust Washer

420627920

$7.51

26

Spring Washer

420627768

$21.99

27

Hex. Screw M12 X 140

420641859

$24.99

28

Cam

420280473

$137.99

29

Driven Pulley Shaft

420220914

$129.99

30

Compression Spring

420638040

$61.99

31

Inner Half Ass'y | Includes 33a to 35

420280499

$309.99

32

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$359.99

33

Ball Bearing

420932421

$28.49

34

Torque Gear

420660124

$23.49

35

Retaining Ring

420245911

$5.31

36

V-Belt

422280366

$179.99

37

Thrust Washer

420627590

$16.99

38

Hex. Screw M10 X 110

420441485

$12.18

39

Variator Cover

420611397

$219.99

40

Hex Screw M6 X 30

420440568

$8.58

41

Drain Plug Kit

707001179

$9.63

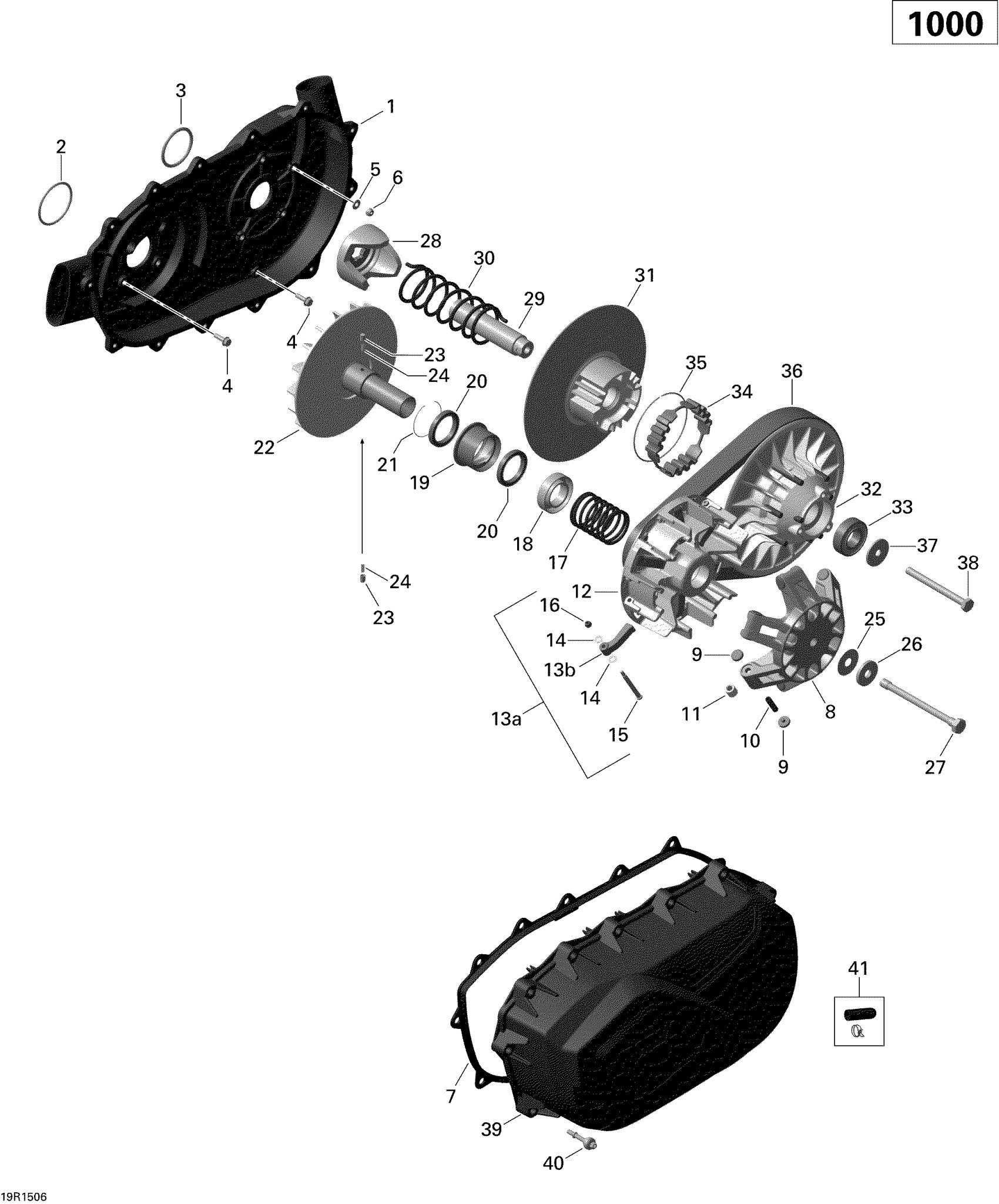

Can-Am Renegade 1000 EFI, 2015 05- Transmission _19R1506 Diagram

CVT Air Guide

O-Ring

O-Ring

Hex.Screw M6 X 20

Flat Washer

Elastic Stop Nut M6

Gasket

Governor Cup Ass'y | Includes 6 to 9

Slider Shoe Set

Roller Axle

Roller

Outer Haft

Centrifugal Lever Kit (Set Of 6) | Includes 13a to 16

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Compression Spring, Drive Pulley

Seat Spring

Drive Pulley Clutch

Ball Bearing

Retaining Ring

Inner Half

Spring Sleeve

Spring

Thrust Washer

Spring Washer

Hex. Screw M12 X 140

Cam

Driven Pulley Shaft

Compression Spring

Inner Half Ass'y | Includes 33a to 35

Outer Half Pulley Ass'y | Includes 27 to 32

Ball Bearing

Torque Gear

Retaining Ring

V-Belt

Thrust Washer

Hex. Screw M10 X 110

Variator Cover

Hex Screw M6 X 30

Drain Plug Kit
