Description

Price

1

Front Propeller Shaft Kit

703500001

Unavailable

2

Wear Ring | 4X4

705400036

$26.49

3

PROTECTOR - Call your local BRP dealership

705400051

Unavailable

4

Ens. Croix*U-Joint Cross Kit

715900325

$70.99

5

Front Differential Ass'y | Includes 5 - 5.

705400003

Unavailable

6

Oil Seal | 4X4

705401481

$19.49

7

DIFFERENTIAL - Call your local BRP dealership

705400404

Unavailable

8

OIL SEAL - Call your local BRP dealership

705400019

Unavailable

9

Gasket | 4X4

705401618

$18.49

10

Drain Plug

705500093

Unavailable

11

Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.

705500143

Unavailable

12

Differential Carrier

705400026

Unavailable

13

Differential Cap

705400025

Unavailable

14

Ball Bearing | 4X4

705401606

$51.99

15

Ball Bearing

705500074

Unavailable

16

Needle Bearing

705500077

Unavailable

17

Vent Valve

705500124

Unavailable

18

SCREW - Call your local BRP dealership

705500088

Unavailable

19

Seal

705500091

Unavailable

20

RING GEAR SCREW - Call your local BRP dealership

705500090

Unavailable

21

Nut | 4X4

705401603

$35.99

22

Gear (36 Teeth)

705500087

Unavailable

23

O-Ring

705500073

Unavailable

24

GEAR (10 TEETH) - Call your local BRP dealership

705500076

Unavailable

25

Retaining Ring

705500102

Unavailable

26

Knuckle Kit R.H | Includes 26 - 34.

703500040

Unavailable

Knuckle Kit L.H

703500041

Unavailable

26

Ball Joint

706200653

$44.99

27

ANGLE BEARING (7431 _ 7434) - Call your local BRP dealership

705400006

Unavailable

28

Oil Seal | 4X4

293250090

$24.49

29

CIRCLIP (7431 _ 7434) - Call your local BRP dealership

293370003

Unavailable

30

Brake Disk (Front) (7431 @ 7434)

705600003

Unavailable

31

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

32

Front Wheel Hub(7431 @ 7434)

705400011

Unavailable

33

Oil Seal (7431 @ 7434)

293250098

Unavailable

34

Circlip 32 mm

293370009

$1.39

35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

36

Hex. Flange Nut M10

233101414

$4.97

37

RH Diffential Front Bracket

705400069

Unavailable

38

Hex. Flange Screw M8 X 20

207682044

$1.15

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

O-Ring

293300052

Unavailable

41

Washer

211200049

Unavailable

42

Hex. Flange Castellated Nut M18

232291413

$7.98

43

Cotter Pin

250400036

$2.11

44

Vent Hose (Meter)

417110000

Unavailable

45

Tie Wrap 142 mm

293750002

$1.25

46

Spring Clamp

414554800

$0.88

47

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

48

Tire 205 X 80 R12

705402890

$153.49

49

Front Rim

705400010

Unavailable

50

Rim Valve With Cap

705400193

$8.69

51

HEX. NUT - Call your local BRP dealership

705400013

Unavailable

52

Washer

211200041

$3.17

53

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

54

Flat Washer M10 | 4X4

250200014

$1.49

55

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

56

Tie Wrap 142 mm

293750002

$1.25

57

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$16.99

58

Synthetic Grease, 400 G

293550010

Unavailable

59

Flat Washer

250200003

Unavailable

60

Bracket (Differential)

705400068

Unavailable

61

Flange Screw M10 X 200, Scotch Grip

250000024

Unavailable

62

RH CV Joint (7431 @ 7434) | Includes 62 - 67.

703500021

Unavailable

LH CV Joint(7431 @ 7434)

703500022

Unavailable

62

WHEEL BOOT KIT - Call your local BRP dealership

705400038

Unavailable

63

DIFFERENTIAL BOOT KIT - Call your local BRP dealership

705400039

Unavailable

64

RH Plunging Joint

705400040

Unavailable

LH Plunging Joint

705400041

Unavailable

65

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

66

Wear Ring

705400016

Unavailable

67

CV JOINT (7431 _ 7434) - Call your local BRP dealership

705400037

Unavailable

68

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.

207506044

Unavailable

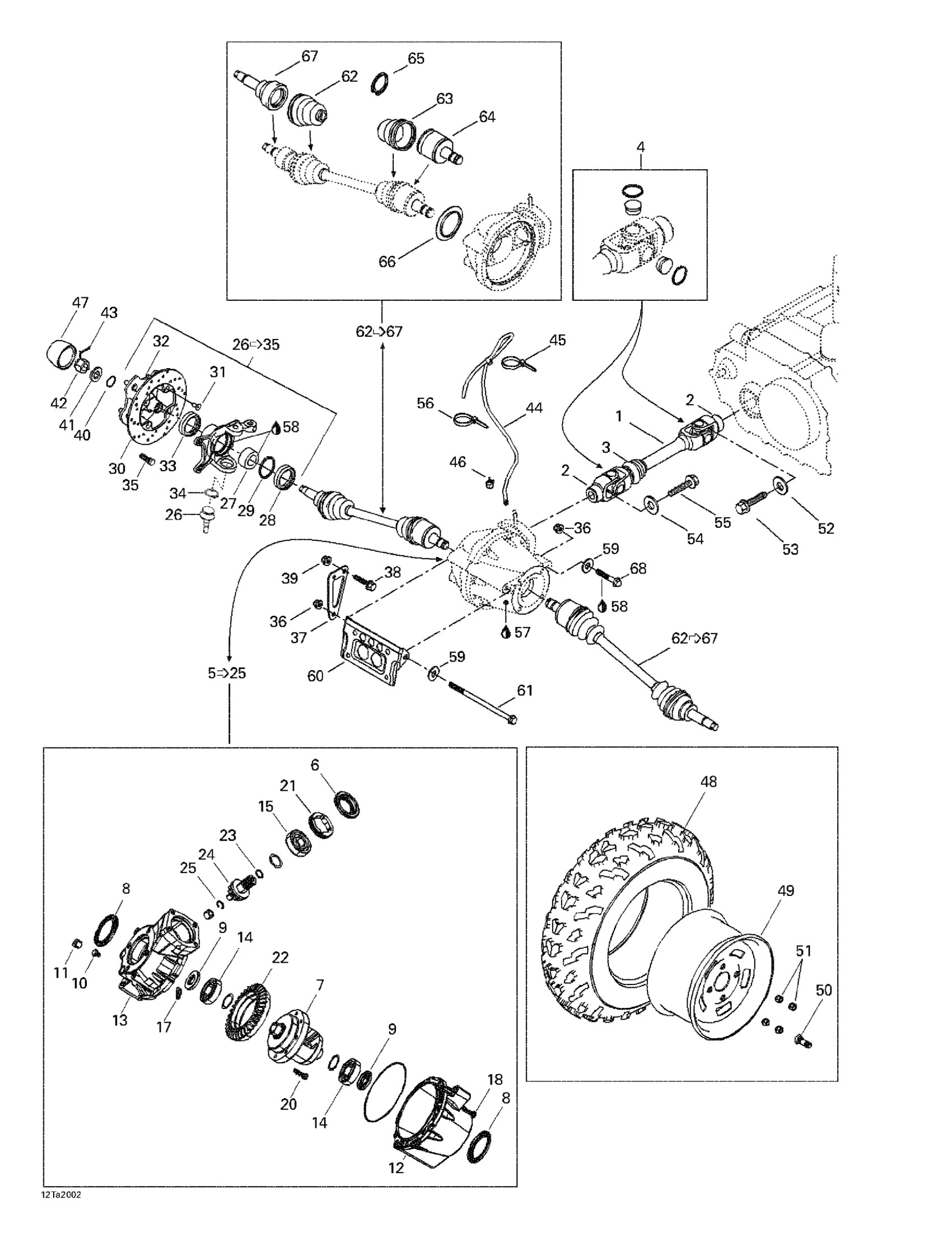

Can-Am Traxter, 7407/7408, 2000 05- Drive System, Front Diagram

Front Propeller Shaft Kit

Wear Ring | 4X4

PROTECTOR - Call your local BRP dealership

Ens. Croix*U-Joint Cross Kit

Front Differential Ass'y | Includes 5 - 5.

Oil Seal | 4X4

DIFFERENTIAL - Call your local BRP dealership

OIL SEAL - Call your local BRP dealership

Gasket | 4X4

Drain Plug

Filler/Level Plug | 7413/7414. 7415/7416. 7417/7418.

Differential Carrier

Differential Cap

Ball Bearing | 4X4

Ball Bearing

Needle Bearing

Vent Valve

SCREW - Call your local BRP dealership

Seal

RING GEAR SCREW - Call your local BRP dealership

Nut | 4X4

Gear (36 Teeth)

O-Ring

GEAR (10 TEETH) - Call your local BRP dealership

Retaining Ring

Knuckle Kit R.H | Includes 26 - 34.

Knuckle Kit L.H

Ball Joint

ANGLE BEARING (7431 _ 7434) - Call your local BRP dealership

Oil Seal | 4X4

CIRCLIP (7431 _ 7434) - Call your local BRP dealership

Brake Disk (Front) (7431 @ 7434)

Torx Screw M8 X 16, Scotch Grip

Front Wheel Hub(7431 @ 7434)

Oil Seal (7431 @ 7434)

Circlip 32 mm

Wheel Stud M10 X 1.25 | 2X4

Hex. Flange Nut M10

RH Diffential Front Bracket

Hex. Flange Screw M8 X 20

Hex. Flange Elastic Nut M8

O-Ring

Washer

Hex. Flange Castellated Nut M18

Cotter Pin

Vent Hose (Meter)

Tie Wrap 142 mm

Spring Clamp

WHEEL CAP - Call your local BRP dealership

Tire 205 X 80 R12

Front Rim

Rim Valve With Cap

HEX. NUT - Call your local BRP dealership

Washer

Hex. Flange Screw M8 X 16, Scotch Grip

Flat Washer M10 | 4X4

Flange Screw M10 X 16, Scotch Grip | 4X4

Tie Wrap 142 mm

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

Synthetic Grease, 400 G

Flat Washer

Bracket (Differential)

Flange Screw M10 X 200, Scotch Grip

RH CV Joint (7431 @ 7434) | Includes 62 - 67.

LH CV Joint(7431 @ 7434)

WHEEL BOOT KIT - Call your local BRP dealership

DIFFERENTIAL BOOT KIT - Call your local BRP dealership

RH Plunging Joint

LH Plunging Joint

CIRCLIP - Call your local BRP dealership | 4X4

Wear Ring

CV JOINT (7431 _ 7434) - Call your local BRP dealership

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership | 7413/7414. 7415/7416. 7417/7418.
