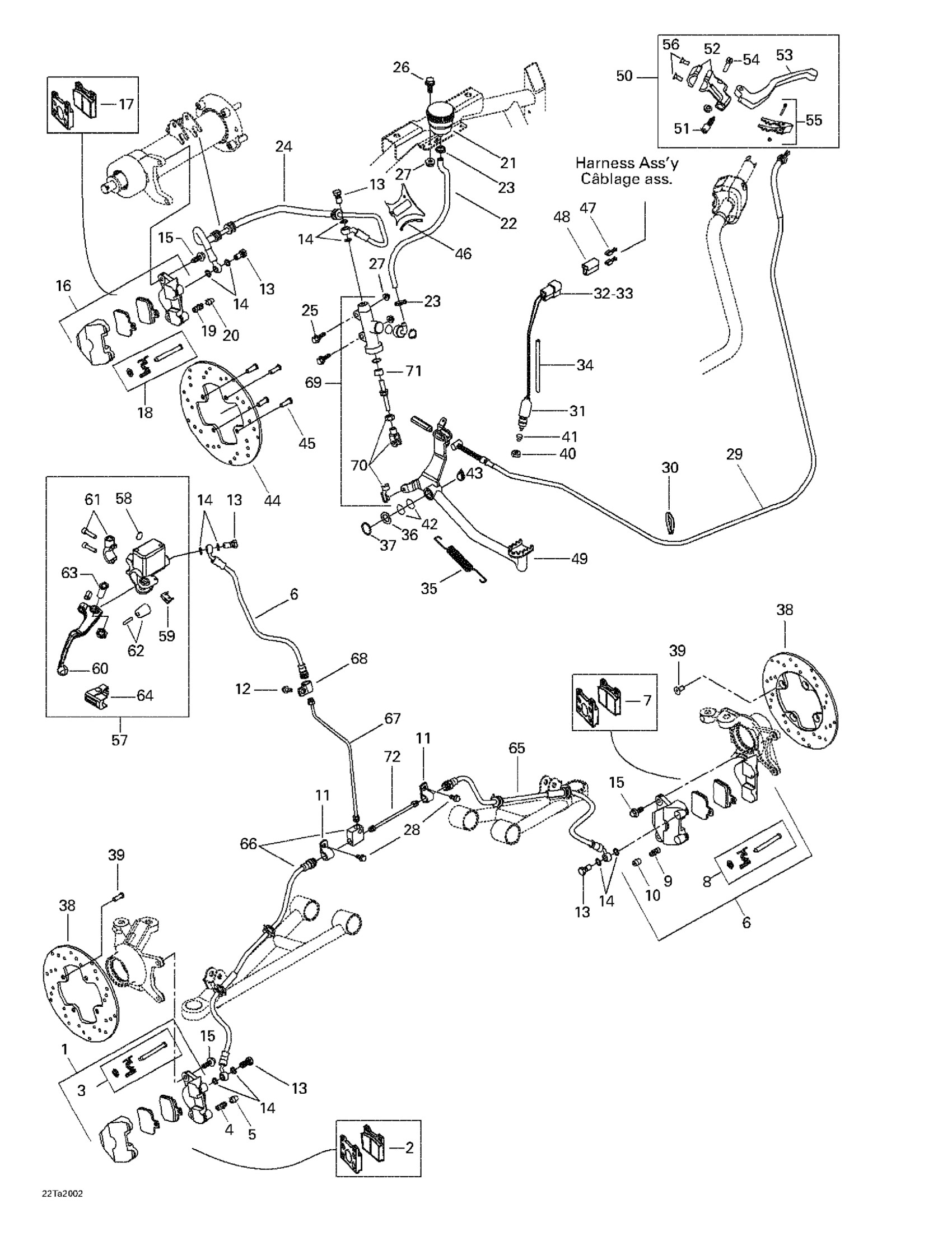

Can-Am Traxter, 7405/7406, 2000 06- Hydraulic Brake Diagram

#

Description
Price

1

RH CALIPER ASS'Y - Call your local BRP dealership

705600028

Unavailable

2

PAD_BRAKE KIT - Call your local BRP dealership

705600041

Unavailable

3

Retainer Kit

705600110

Unavailable

4

Bleeder Screw

705600111

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

LH Caliper Ass'y

705600029

Unavailable

7

PAD_BRAKE KIT - Call your local BRP dealership

705600041

Unavailable

8

Retainer Kit

705600110

Unavailable

9

Bleeder Screw

705600111

Unavailable

10

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

11

Open Clamp

705600040

$13.24

12

Hex. Flange Screw M6 X 16

210261650

$1.67

13

Banjo Bolt

414920500

$8.68

14

Washer

414920600

$1.90

15

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

16

RH Rear Caliper | Includes 16 - 17.

705600031

Unavailable

17

PAD_BRAKE KIT - Call your local BRP dealership

705600041

Unavailable

18

Retainer Kit

705600110

Unavailable

19

Bleeder Screw

705600111

Unavailable

20

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

21

OIL HOUSING - Call your local BRP dealership

705600009

Unavailable

22

Oil Housing Hose | 7415/7416. 7417/7418.

705600102

Unavailable

23

Oetiker Clamp

293650042

$3.09

24

BRAKE LINE - Call your local BRP dealership

705601393

Unavailable

25

Hex. Flange Screw M6 X 25

207662544

$0.64

26

Hex. Flange Screw M6 X 16

207661644

$0.74

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28

Screw Hex. M6.3 x 19

210661940

Unavailable

29

REAR BRAKE CABLE - Call your local BRP dealership

705600099

Unavailable

30

Tie Wrap 368 mm

293750008

$1.04

31

Brake Switch

515175653

$19.49

32

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

33

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

34

Tubing 6 Mm 3000Mm Long

219704425

$13.75

35

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

36

WASHER - Call your local BRP dealership

503107800

Unavailable

37

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

38

Brake Disk (Front) (7431 @ 7434)

705600003

Unavailable

39

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

40

Switch Nut

250100002

Unavailable

41

Plunger Cap

570151100

$9.85

42

O-RING - Call your local BRP dealership

293300053

Unavailable

43

Synthetic Grease, 400 G

293550010

Unavailable

44

Brake Disk 220 mm (Rear)

705600033

Unavailable

45

Socket Screw M8 x 16 (S. Grip)

205881646

Unavailable

46

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

47

Female Terminal

561503100

$2.41

48

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

49

Brake Pedal

705600106

Unavailable

50

Brake Handle | Includes 61 To 66

705600011

Unavailable

51

Cable Screw

250000030

Unavailable

52

CLAMP KIT - Call your local BRP dealership

705600184

Unavailable

53

LEVER - Call your local BRP dealership

705600186

Unavailable

54

Pivot Kit

705600187

Unavailable

55

Lever Lock Kit

705600188

Unavailable

56

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

57

Master Cylinder Ass'y

705600005

Unavailable

58

WINDOW - Call your local BRP dealership

414990600

Unavailable

59

Microswitch

705600112

Unavailable

60

ARM LEVER - Call your local BRP dealership

705600113

Unavailable

61

Clamp

414990400

Unavailable

62

Cap

414990300

Unavailable

63

Pin Lever

414990200

Unavailable

64

BOOT RUBBER - Call your local BRP dealership

705600114

Unavailable

65

Flexible Hose L.H

705600059

Unavailable

66

Flexible Hose R.H

705600020

Unavailable

67

Vertical tube

705600036

Unavailable

68

Brake Handle Hose

705600007

Unavailable

69

Master Cylinder | Includes 18 - 0.

705600006

Unavailable

70

Pusher

705600021

Unavailable

71

Boot Bellow

705600075

Unavailable

72

Horizontal tube

705600038

Unavailable
