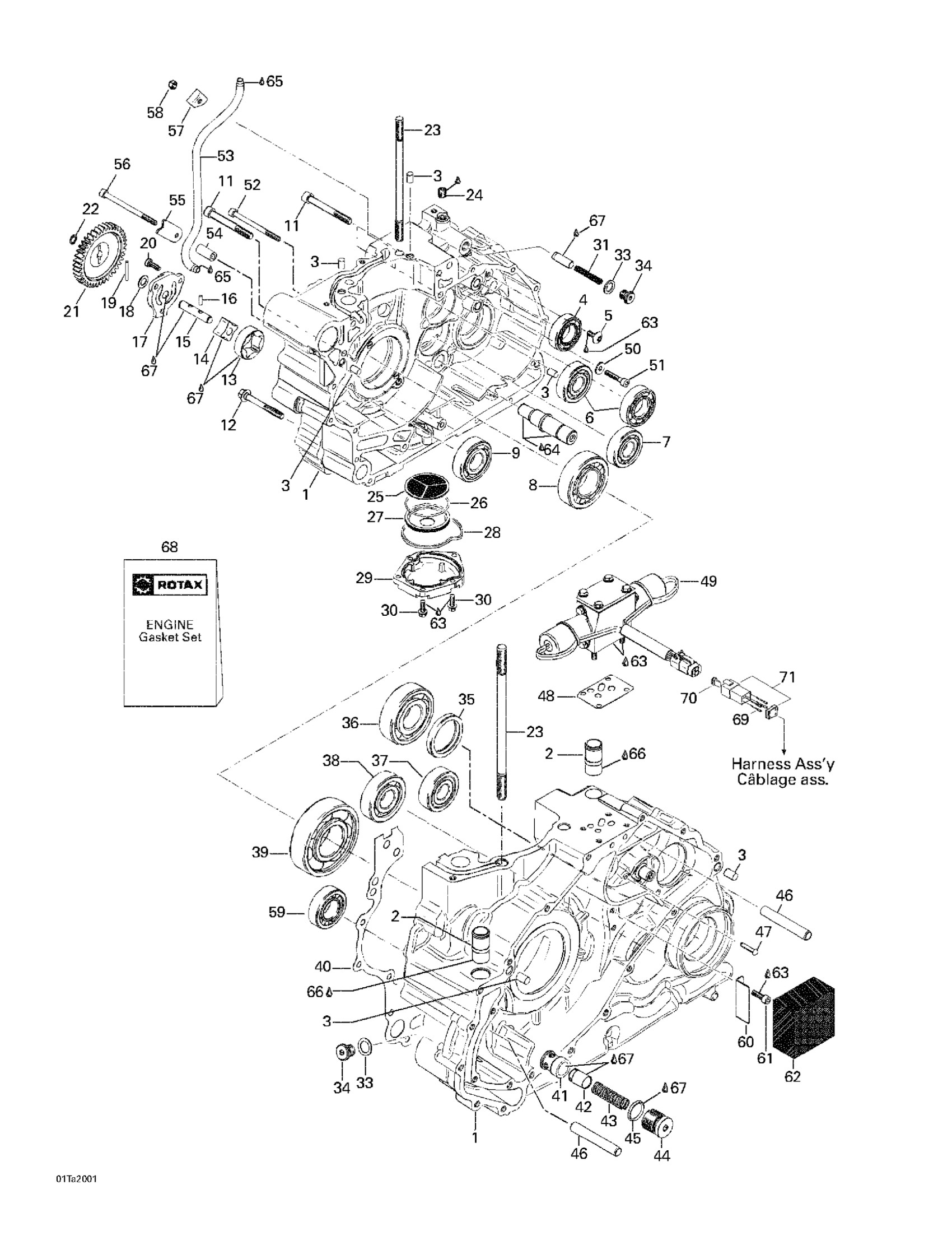

Can-Am Traxter, 7400/7401, 2000 01- Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y

711295880

Unavailable

2

Tube

711224260

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Bearing_Ball - Call your local BRP dealership

420932650

Unavailable

5

Flat Head Screw M6 x 16

711241521

Unavailable

6

Ball Bearing 6205

420232764

$25.99

7

Ball Bearing 6304E

290932095

Unavailable

8

Roller Bearing

711232490

Unavailable

9

Ball Bearing

711632200

Unavailable

10

Intermediate Gear Shaft

711220570

Unavailable

11

SOCKET HEAD SCREW M8 X 70 - Call your local BRP dealership

420841991

Unavailable

12

Hex. Flange Screw M6 x 65

711640351

Unavailable

13

Oil Pump Rotor Ass'y | Includes 13 - 4.

711956275

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Oil Pump Shaft

711220590

Unavailable

16

Needle Pin

420232731

$4.01

17

Oil Pump Cover

711211850

Unavailable

18

Thrust Washer

420827590

$4.01

19

NEEDLE PIN - Call your local BRP dealership

420232971

$4.29

20

Socket Screw M6 x 16

711241231

Unavailable

21

Oil Pump Gear (40 Teeth)

711635030

Unavailable

22

Snap Ring

420245330

$1.79

23

Stud M10 x 190

711241670

Unavailable

24

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

25

OIL SIEVE - Call your local BRP dealership

420256570

Unavailable

26

O-Ring

420650697

$11.05

27

Oil Collector

420256650

$50.99

28

Rubber Ring

420650560

$16.86

29

OIL SIEVE COVER - Call your local BRP dealership

420211940

Unavailable

30

Hex. Flange Screw M6 x 20

711241861

Unavailable

31

Piston

711256590

Unavailable

32

Compression Spring

711238020

Unavailable

33

Aluminum Sealing Ring

420250016

$5.39

34

Plug Screw M12 x 1,5

420241701

$12.63

35

Oil Seal

711650700

Unavailable

36

Ball Bearing

420932822

$30.49

37

Ball Bearing

420932816

$42.49

38

Ball Bearing 6304E

290932095

Unavailable

39

BALL BEARING - Call your local BRP dealership

420432120

Unavailable

40

Gasket, Crankcase

711650420

Unavailable

41

Valve Seat Sleeve

711256600

Unavailable

42

Pressure Regulator Kit | Includes 42 - 43. 7400/7401.

703500046

Unavailable

42

Piston Valve

420256638

$22.99

43

Compression Spring | 7413/7414. 7415/7416. 7417/7418.

711938785

Unavailable

44

Plug Screw M22

711241715

Unavailable

45

O-Ring

420250050

$10.43

46

Needle Pin

420229475

$14.83

47

Groove Pin M4 x 20

711229170

Unavailable

48

SOLENOID VALVE GASKET - Call your local BRP dealership

420650630

$11.49

49

Soleno‹d Valve

711256540

Unavailable

50

Washer

420627400

$4.44

51

Socket Head Screw M6 X 30

205063044

$1.69

52

ALLEN SCREW, M6 X 80 - Call your local BRP dealership

420241503

Unavailable

53

Oil Pipe

711224620

Unavailable

54

Distance Sleeve

711847052

Unavailable

55

Holding Strip

711627435

Unavailable

56

Socket Screw M6 x 90

711241481

Unavailable

57

Holding Strip

711627430

Unavailable

58

Elastic Stop Nut M6

232561414

$0.55

59

Roller Bearing

711232280

Unavailable

60

Support Bracket

711224640

Unavailable

61

Allen Screw M5 x 16

711840510

Unavailable

62

Oil Separating Foam

711256720

Unavailable

63

Loctite 243, 10 ml

293800060

$21.49

64

Molykote G-N, 50 g

420297433

$26.99

65

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

66

Sealant Loctite 648

219703000

$45.99

67

Not Available As Spare Part - Friction Washer

Unavailable

68

Gasket Set Engine

711296370

Unavailable

69

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

70

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

71

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable
