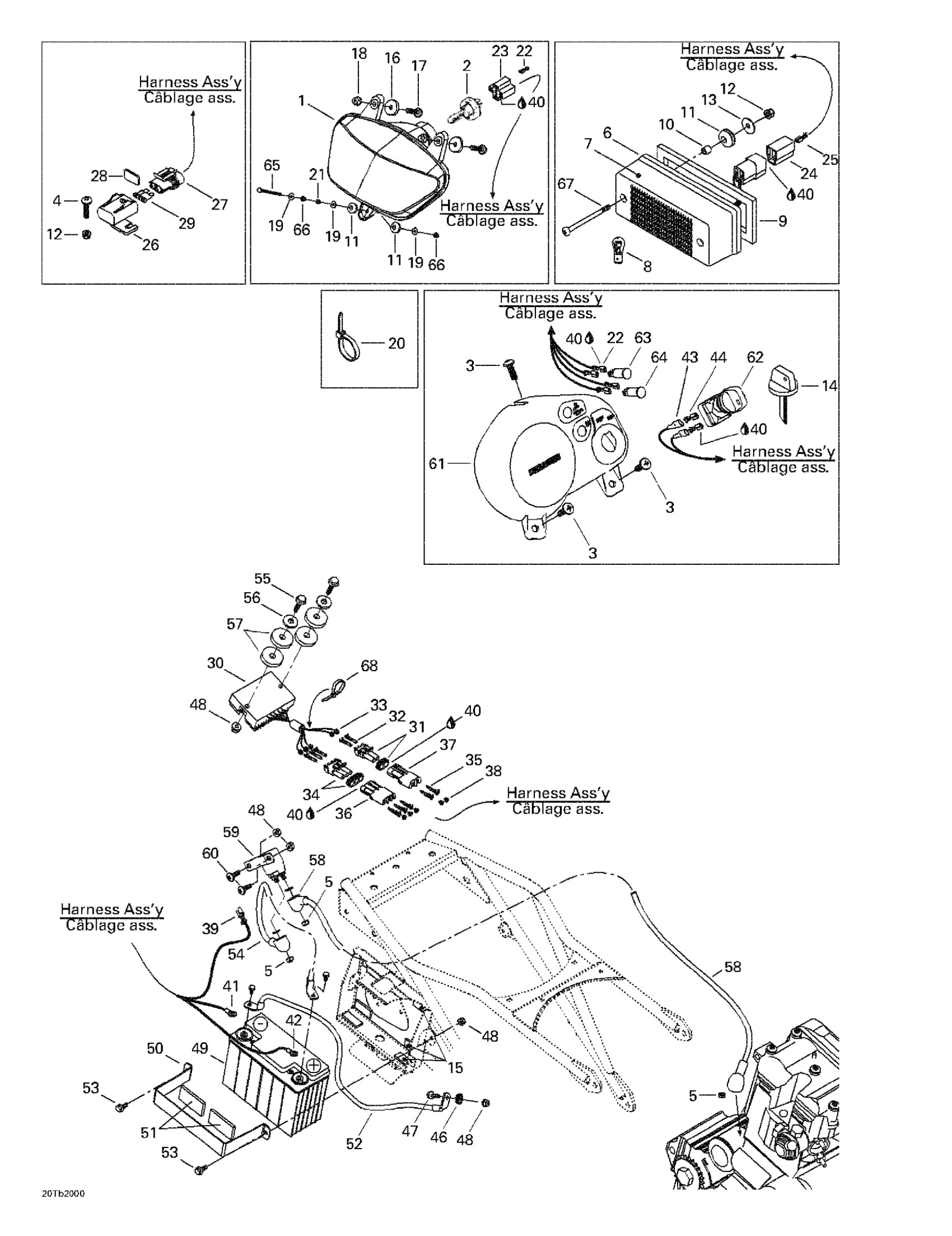

Can-Am DS 650, 7404, 2000 10- Electrical System Diagram

#

Description
Price

1

HEADLAMP - Call your local BRP dealership

710000053

Unavailable

2

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

3

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

4

Forming Screw M5 x 16

250000676

$1.01

5

Elastic Stop Nut M6

232561414

$0.55

6

Tail Light Housing

710000102

Unavailable

7

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

8

Bulb

520000758

$9.10

9

GASKET - Call your local BRP dealership

710000129

Unavailable

10

Bushing

293900112

$10.06

11

Grommet

414036300

$2.79

12

Hex. Flange Elastic Nut M5

233251414

$1.04

13

Flat Washer

224060201

$1.26

14

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

14

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

15

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

16

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

17

Hex. Flange Screw M8 X 35

207683544

$1.69

18

Hex. Flange Elastic Nut M8

233281414

$1.47

19

Washer

517124300

$0.19

20

Tie-Rap 180 mm

414115200

$0.11

20

Tie Wrap 368 mm

293750008

$1.04

21

Nut

414806900

Unavailable

22

FEMALE TERMINAL - Call your local BRP dealership

515175321

Unavailable

23

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

24

Female Housing

409204300

Unavailable

25

Female Terminal

561503100

$2.41

26

Fuse Holder Cap

278001326

$7.69

27

Fuse Holder

278001325

$8.79

28

Cushion

278000805

$3.28

29

Fuse, 15 Amperes

278000343

$3.28

29

Fuse, 25 Amperes

278001443

$3.28

30

Rectifier Ass’Y | Includes 30 - 34.

278001554

$209.99

31

Male Connector, 2 Circuits

278000220

$15.49

32

Female Terminal

409007300

$0.45

33

Wire Seal

278000218

$4.39

34

Male Housing, 3 Circuits

278000273

$9.59

35

Male Terminal

409004300

$5.61

36

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

37

Female Housing, 2 Circuits

278000217

$9.59

38

Wire Seal

710000048

$7.69

39

Female Terminal

409010700

$5.39

40

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

41

Open Barrel

278000992

$2.21

42

Open Barrel Terminal

278001392

$4.79

43

Insulated Sheath

278001007

$3.58

44

Female Terminal | DS 650 X

278001009

$3.19

45

Harness Ass'y(Not Shown)

710000071

Unavailable

46

Lock Washer Serrated M6

250200041

$1.15

47

Hex. Flange Screw M6 X 20

207662044

$2.00

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

49

Battery, 13 Amperes | Includes 7 to 8

710000283

$154.99

50

RUBBER STRAP, BLACK - Call your local BRP dealership

710000087

Unavailable

51

Tie Wrap 94 mm | 4X4

293750001

$1.03

52

Ground Cable

710000086

Unavailable

53

Hex. Flange Screw M6 X 16

207661644

$0.74

54

Positive Cable

710000066

Unavailable

55

Hex. Flange Screw M6 X 35

207663544

$0.90

56

Washer

224060251

$0.58

57

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

58

POSITIVE CABLE - Call your local BRP dealership | Includes 35 to 40

710000069

Unavailable

59

Starter Relay

515176011

$62.49

60

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

61

DASHBOARD - Call your local BRP dealership | DS 650

710000060

Unavailable

62

IGNITION SWITCH - Call your local BRP dealership

710000075

Unavailable

63

Pilot Lamp, Red

710000062

Unavailable

64

Pilot Lamp

710000063

Unavailable

65

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

66

Hex. Flange Elastic Nut M5

233251414

$1.04

67

PHILLIPS SCREW M5 X 70 - Call your local BRP dealership

208657041

Unavailable
