Description

Price

1

Seat Ass'y | Includes 1 - 4.

708000030

Unavailable

2

Seat Cover

708000033

Unavailable

3

SCREW M6 X 30 - Call your local BRP dealership

250000046

Unavailable

4

SPACER - Call your local BRP dealership

708000049

Unavailable

5

Flat Washer

224061201

$1.37

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Seal Tray 1000Mm Long

219704368

$13.99

8

Latch Ass'y

269700109

$24.99

9

Latch Ass'y

269700109

$24.99

10

Latch Ass'y

269700109

$24.99

11

Latch Spring

269700017

$9.19

12

Hex. Flange Screw M6 X 25

207562544

$1.69

13

Seat Corner

708000035

Unavailable

14

LH Seat Corner

708000036

Unavailable

RH Seat Corner

708000037

Unavailable

15

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

16

Hex. Jam Nut M10

232100600

$2.22

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Rubber Stopper

708000758

$12.99

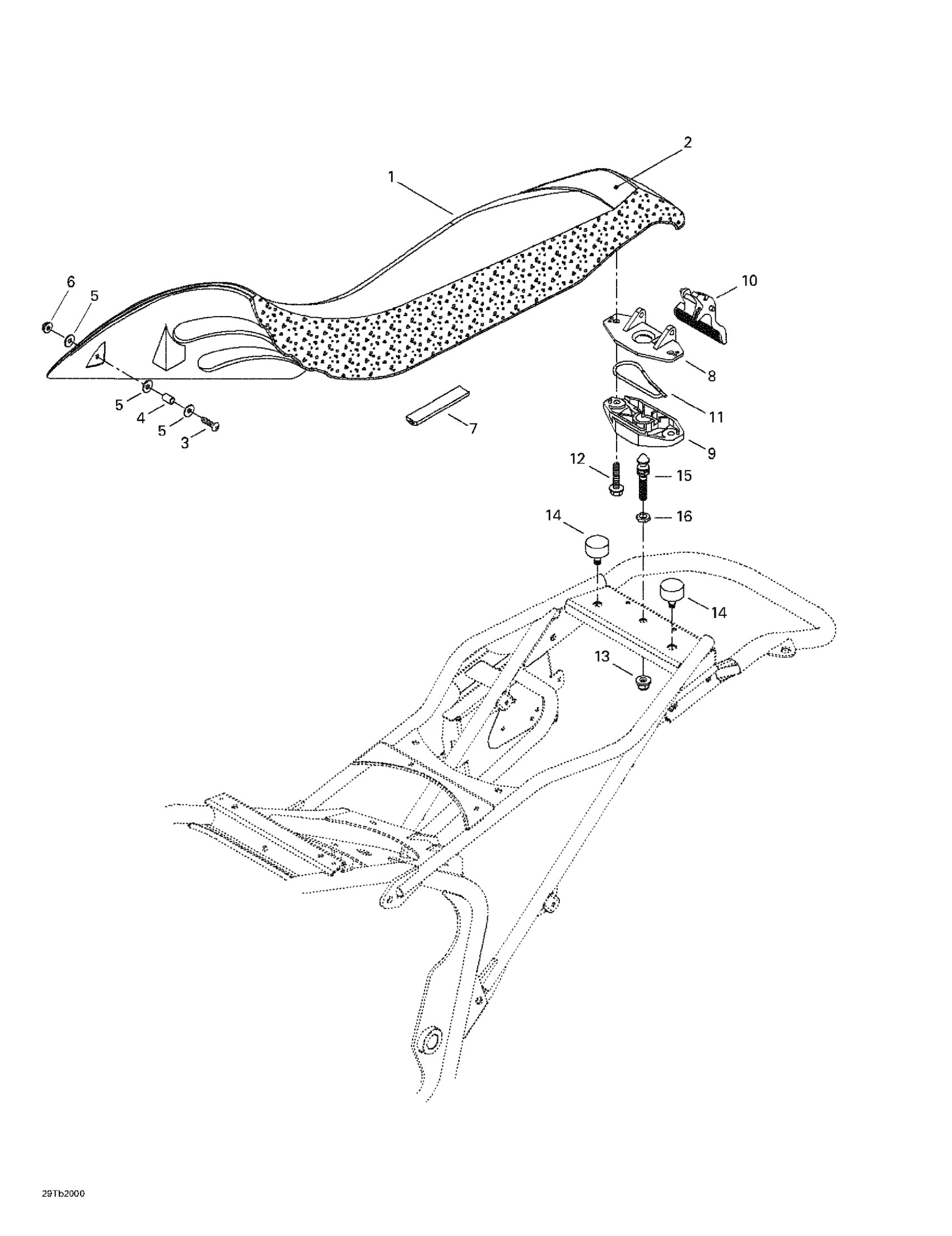

Can-Am DS 650, 7404, 2000 09- Seat Diagram

Seat Ass'y | Includes 1 - 4.

Seat Cover

SCREW M6 X 30 - Call your local BRP dealership

SPACER - Call your local BRP dealership

Flat Washer

Hex. Flange Elastic Nut M6 x 1.0

Seal Tray 1000Mm Long

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

Hex. Flange Screw M6 X 25

Seat Corner

LH Seat Corner

RH Seat Corner

LATCH STUD - Call your local BRP dealership

Hex. Jam Nut M10

Hex. Flange Elastic Nut M10

Rubber Stopper
