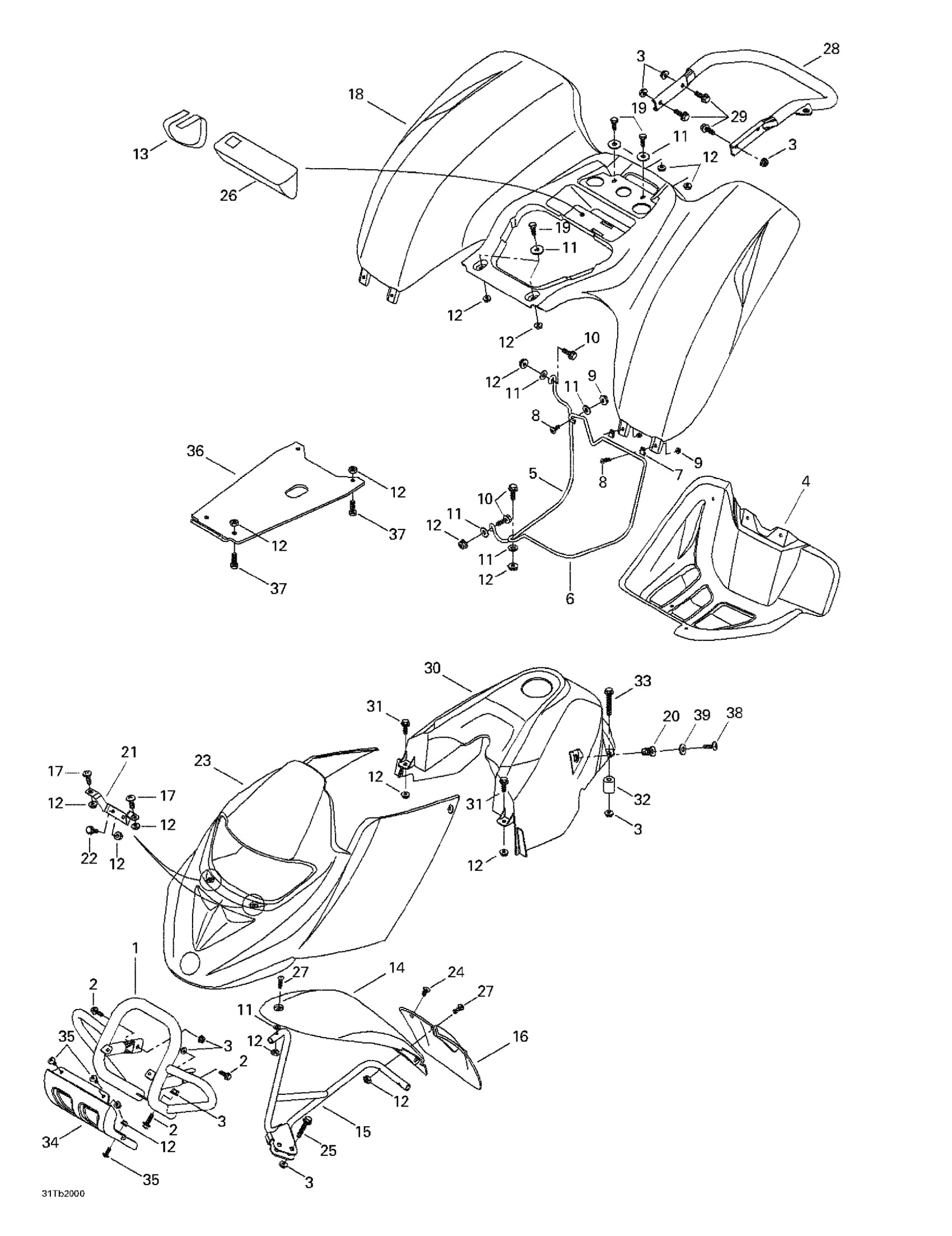

Can-Am DS 650, 7404, 2000 09- Châssis Diagram

#

Description
Price

1

BUMPER DS - Call your local BRP dealership | DS 650

715000172

Unavailable

2

Hex. Flange Screw M8 X 25

207682544

$1.35

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

RH Foot Protector | 7415/7416. 7417/7418.

705000086

Unavailable

LH Foot Protector

705000087

Unavailable

5

RH Support

705000116

Unavailable

LH Support

705000119

Unavailable

6

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

Unavailable

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

Unavailable

7

Gear Clamp

293650111

Unavailable

8

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

9

Elastic Stop Nut M6

232561414

$0.55

10

Hex. Flange Screw M6 X 25

207662544

$0.64

11

Flat Washer

224061201

$1.37

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

STRAP - Call your local BRP dealership

708200008

Unavailable

14

RH Front Fender (DS Yellow)

705000270

Unavailable

LH Front Fender

705000271

Unavailable

15

RH Fender Support

705000150

Unavailable

LH Fender Support

705000151

Unavailable

16

RH FRONT MUDGUARD - Call your local BRP dealership

705000095

Unavailable

LH FRONT MUDGUARD - Call your local BRP dealership

705000096

Unavailable

17

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

18

Rear Fender

705000272

Unavailable

19

Hex. Screw M6 X 18

207161844

$0.76

20

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

21

FASCIA BRACKET, BLACK - Call your local BRP dealership

705000146

Unavailable

22

Hex. Flange Screw M6 X 16

207661644

$0.74

23

Front Facia (DS Yellow)

705000273

Unavailable

24

Dart

414939500

$1.04

25

Hex. Flange Screw M8 X 35

207683544

$1.69

26

Tool Kit

295000178

Unavailable

27

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

28

Rear Bumper

705000143

Unavailable

29

Hex. Flange Screw M8 X 20

207682044

$1.15

30

Tank Cover Kit

705000276

Unavailable

31

Hex. Screw M6 X 30

207063044

$1.26

32

SPACER - Call your local BRP dealership

705000114

Unavailable

33

Hex. Flange Screw M8 x 60

207686044

$3.07

34

Protector Plate

705000148

Unavailable

35

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

36

Skid Plate

705000149

Unavailable

37

Hex. Flange Screw M6 X 20

207662044

$2.00

38

Phillips Screw M6 X 20, Scotch Grip

250000043

Unavailable

39

BUSHING - Call your local BRP dealership

506117300

Unavailable
