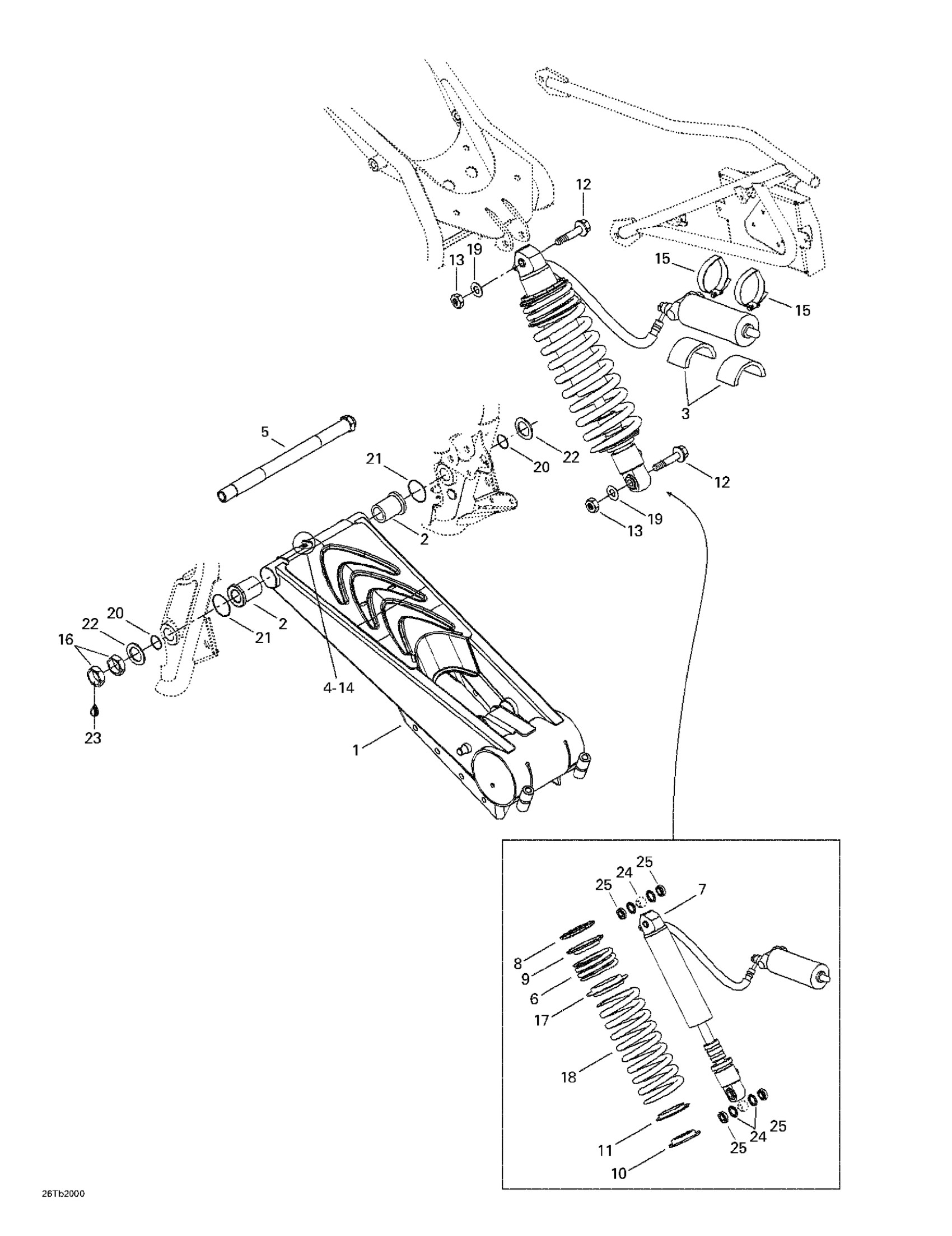

Can-Am DS 650, 7404, 2000 08- Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000080

Unavailable

2

Cushion

706000089

Unavailable

3

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

4

Grease Fitting

408200700

$3.49

5

PIVOT BOLT - Call your local BRP dealership

706000102

Unavailable

6

Rear Spring (Short)

706000059

Unavailable

7

Rear Shock | Includes 7 - 10.

706000058

Unavailable

8

STOPPER RING - Call your local BRP dealership

706000082

Unavailable

9

SHOCK SPRING STOPPER - Call your local BRP dealership

706000062

Unavailable

10

Ball Joint

706000105

Unavailable

11

SPRING GUIDE - Call your local BRP dealership

706000060

Unavailable

12

Hex. Flange Screw M12 X 60

207626046

$7.41

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Synthetic Grease, 400 G

293550010

Unavailable

15

Norma Gear Clamp

293650118

$13.16

16

JAM NUT M20 - Call your local BRP dealership

250100009

Unavailable

17

Spring Spacer

706000079

Unavailable

18

Rear Spring (Long)

706000077

Unavailable

19

Washer

732900048

Unavailable

20

O-RING - Call your local BRP dealership

293300074

Unavailable

21

O-Ring

293300068

$7.65

22

WASHER - Call your local BRP dealership

293050003

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

SEAL - Call your local BRP dealership

293250111

Unavailable

25

CUSHION - Call your local BRP dealership

706000103

Unavailable

26

SPRING STOPPER - Call your local BRP dealership

706000061

Unavailable
