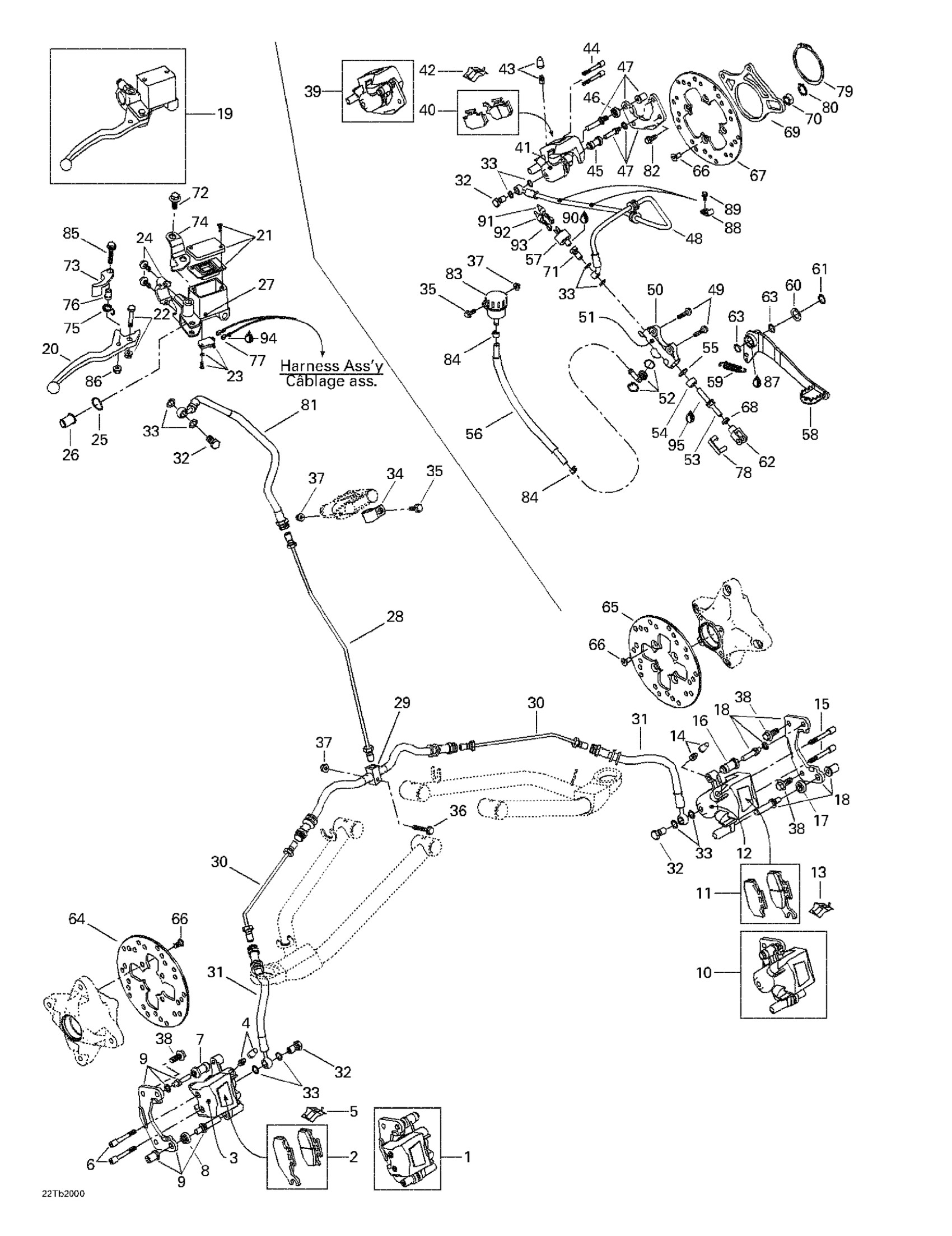

Can-Am DS 650, 7404, 2000 06- Hydraulic Brake Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 To 9

705600043

Unavailable

2

Brake Pad Kit

705600004

$51.99

3

Piston Set

705600078

$38.99

4

Bleeding Screw

705600080

$16.87

5

Spring

705600079

$15.81

6

Pin Set (2)

705600081

$20.49

7

Compression Boot

705600082

$10.06

8

Compression Boot

705600083

$10.06

9

RH BRAKE SUPPORT - Call your local BRP dealership

705600062

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 To 18

705600044

Unavailable

11

Brake Pad Kit

705600014

$51.99

12

Piston Set

705600078

$38.99

13

Spring

705600079

$15.81

14

Bleeding Screw

705600080

$16.87

15

Pin Set (2)

705600081

$20.49

16

Compression Boot

705600082

$10.06

17

Compression Boot

705600083

$10.06

18

LH BRAKE SUPPORT - Call your local BRP dealership

705600061

Unavailable

19

MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600045

Unavailable

20

ARM LEVER - Call your local BRP dealership

705600057

Unavailable

21

Cap Set

705600084

$24.99

22

BOLT KIT - Call your local BRP dealership

705600085

Unavailable

23

SWITCH KIT - Call your local BRP dealership

705600086

Unavailable

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

Piston Kit

705600058

Unavailable

28

Vertical Hose

705600047

Unavailable

29

Flexible Hose

705600048

Unavailable

30

Horizontal Tube

705600070

Unavailable

31

Brake Hose

705600071

Unavailable

32

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

33

Washer

414920600

$1.90

34

Open Clamp

705600040

$13.24

35

Hex. Flange Screw M6 X 20

207662044

$2.00

36

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

38

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

39

Rear Caliper | Includes 39 To 47

705600599

$301.99

40

Brake Pad Kit

705600014

$51.99

41

Piston Set

705600078

$38.99

42

Spring

705600079

$15.81

43

Bleeding Screw

705600080

$16.87

44

Pin Set (2)

705600081

$20.49

45

Compression Boot

705600082

$10.06

46

Compression Boot

705600083

$10.06

47

BRAKE SUPPORT ASS'Y - Call your local BRP dealership

705600017

Unavailable

48

BRAKE LINE - Call your local BRP dealership

705601393

Unavailable

49

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

50

Master Cylinder Ass'y

705600050

Unavailable

51

Piston Set

705600063

Unavailable

52

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

53

Rod Ass'y

705600065

Unavailable

54

Compression Boot

705600090

Unavailable

55

Master Cylinder

705600117

Unavailable

56

Hose

705600108

Unavailable

57

Interrupteur *Brake Switch

710001345

$36.99

58

Brake Pedal

705600094

Unavailable

59

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

60

WASHER - Call your local BRP dealership

503107800

Unavailable

61

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

62

Yoke

705600100

Unavailable

63

O-RING - Call your local BRP dealership

293300053

Unavailable

64

RH BRAKE DISC - Call your local BRP dealership

705600042

Unavailable

65

LH BRAKE DISC - Call your local BRP dealership

705600093

Unavailable

66

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

67

Brake Disc

705500059

Unavailable

68

Hex. Jam Nut M8

232180600

$0.67

69

Caliper Support

705500066

Unavailable

70

Caliper Guide

705500068

Unavailable

71

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

72

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

73

LEVER ARM - Call your local BRP dealership

705600095

Unavailable

74

Lever Stopper

705600096

Unavailable

75

SPRING - Call your local BRP dealership

705600055

Unavailable

76

SNAP RING - Call your local BRP dealership

705600097

Unavailable

77

Female Terminal

710000082

$7.69

78

Pin Kit

219702305

$34.99

79

CIRCLIP - Call your local BRP dealership

293370014

Unavailable

80

CIRCLIP - Call your local BRP dealership

293370015

Unavailable

81

Brake Handle Hose

705600007

Unavailable

82

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

83

Oil Tank, Brake Fluid Reservoir

705600182

$38.99

84

Spring Clamp

414415200

$0.88

85

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

86

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

87

Synthetic Grease, 400 G

293550010

Unavailable

88

CLIP - Call your local BRP dealership

414351600

Unavailable

89

Hex. Flange Screw M6 X 16

210261650

$1.67

90

Was 293800013 Loctite 56765

219704454

$65.99

91

Insulated Sheath

278001007

$3.58

92

Insulated Sheath

278000770

$7.90

93

Female Terminal | DS 650 X

278001009

$3.19

94

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

95

Not Available As Spare Part - Friction Washer

Unavailable

96

Circlip

705600068

Unavailable

97

Tie-Rap 180 mm

414115200

$0.11

98

Grommet

293720046

Unavailable
