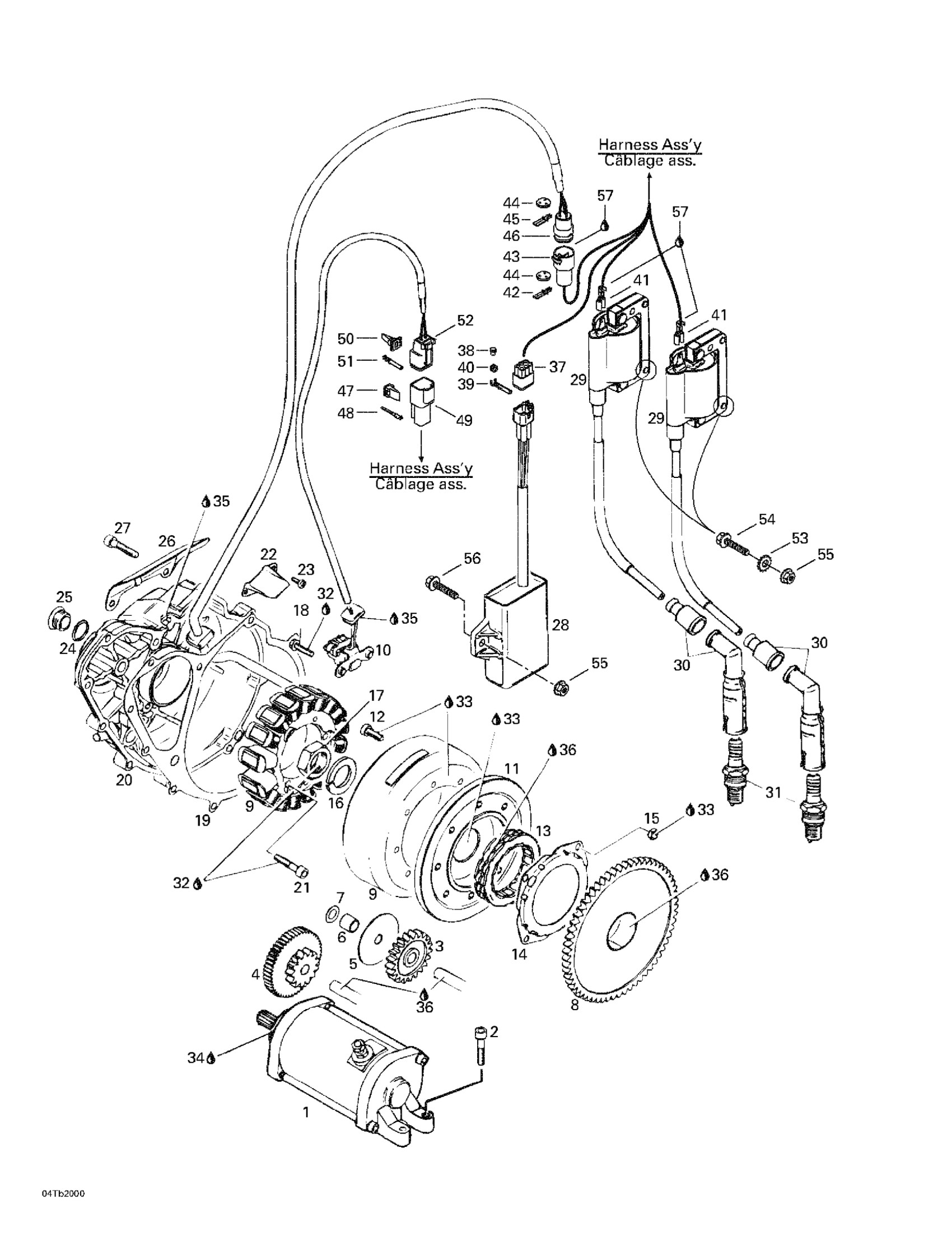

Can-Am DS 650, 7404, 2000 03- Ignition Diagram

#

Description
Price

1

Electric Starter

711294351

Unavailable

1

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

1

Starter O-ring (Not shown)

29330103

Unavailable

2

Socket Head Screw M6 X 30

205063044

$1.69

3

Intermediate Gear (24 Teeth)

711234655

Unavailable

4

Intermediate Gear, 11/52 Teeth

420234756

$179.99

5

Thrust Washer

711627080

Unavailable

6

Spacer

711247785

Unavailable

7

Thrust Washer

420827590

$4.01

8

Starting Gear (61 Teeth)

711634317

Unavailable

9

Magneto Ass'y 12V/280W

711295172

Unavailable

10

PICKUP ASS'Y - Call your local BRP dealership

711265153

Unavailable

11

FLYWHEEL ROTOR HUB - Call your local BRP dealership

420264577

Unavailable

12

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

$5.99

13

Sprag Clutch

420958857

$339.99

14

Housing-Clutch Sprag

711259192

Unavailable

15

Nut BM6

711242031

Unavailable

16

Lock Washer, 22 mm

420945759

$1.90

17

Hex. Nut, M22 X 1.5

420842239

$17.53

18

Taptite Screw M5 X 16

420941928

Unavailable

19

Gasket

711250920

Unavailable

20

Ignition Cover

711211291

Unavailable

21

Socket Head Screw M6 x 35

711241810

Unavailable

22

Interior Cable Support Ass'y

420251889

$14.30

23

Phillips Screw M4 X 8

420240196

$2.32

24

O-Ring

420250890

$3.06

25

Drain Plug

420241801

$7.41

26

Cable External Cover

711251990

Unavailable

27

Socket Head Screw M6 X 30

205063044

$1.69

28

Amplifier Box

711265368

Unavailable

29

Ignition Coil

711265357

Unavailable

30

SPARK PLUG CAP - Call your local BRP dealership

420665010

$24.99

31

Spark Plug, NGK/DR8EA

707000008

$4.23

32

Loctite 243, 10 ml

293800060

$21.49

33

Sealant Loctite 648

219703000

$45.99

34

Was 420297616 Klueber Grease, 60g

219704464

$23.99

35

Sealing Compound Loctite 5366 310Ml

420297907

$54.99

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Female Housing, 6 Circuits

710000081

$8.79

38

Cap

710000080

$8.29

39

Female Terminal

409012100

$4.55

40

Seal

409012300

$4.54

41

Not Available As Spare Part - Friction Washer

Unavailable

42

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

43

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

44

SEAL - Call your local BRP dealership

409208500

Unavailable

45

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

46

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

47

Male Lock, 2 Circuits

409207500

$3.19

48

Male Terminal

278000631

$4.39

49

Male Housing, 2 Circuits

409206900

$9.59

50

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

51

Female Terminal

278000632

$2.09

52

Female Connector, 2 Circuits

409207300

$9.85

53

Lock Washer Serrated M6

250200041

$1.15

54

Hex. Flange Screw M6 X 25

207662544

$0.64

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

56

Hex. Flange Screw M6 X 20

207662044

$2.00

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99
