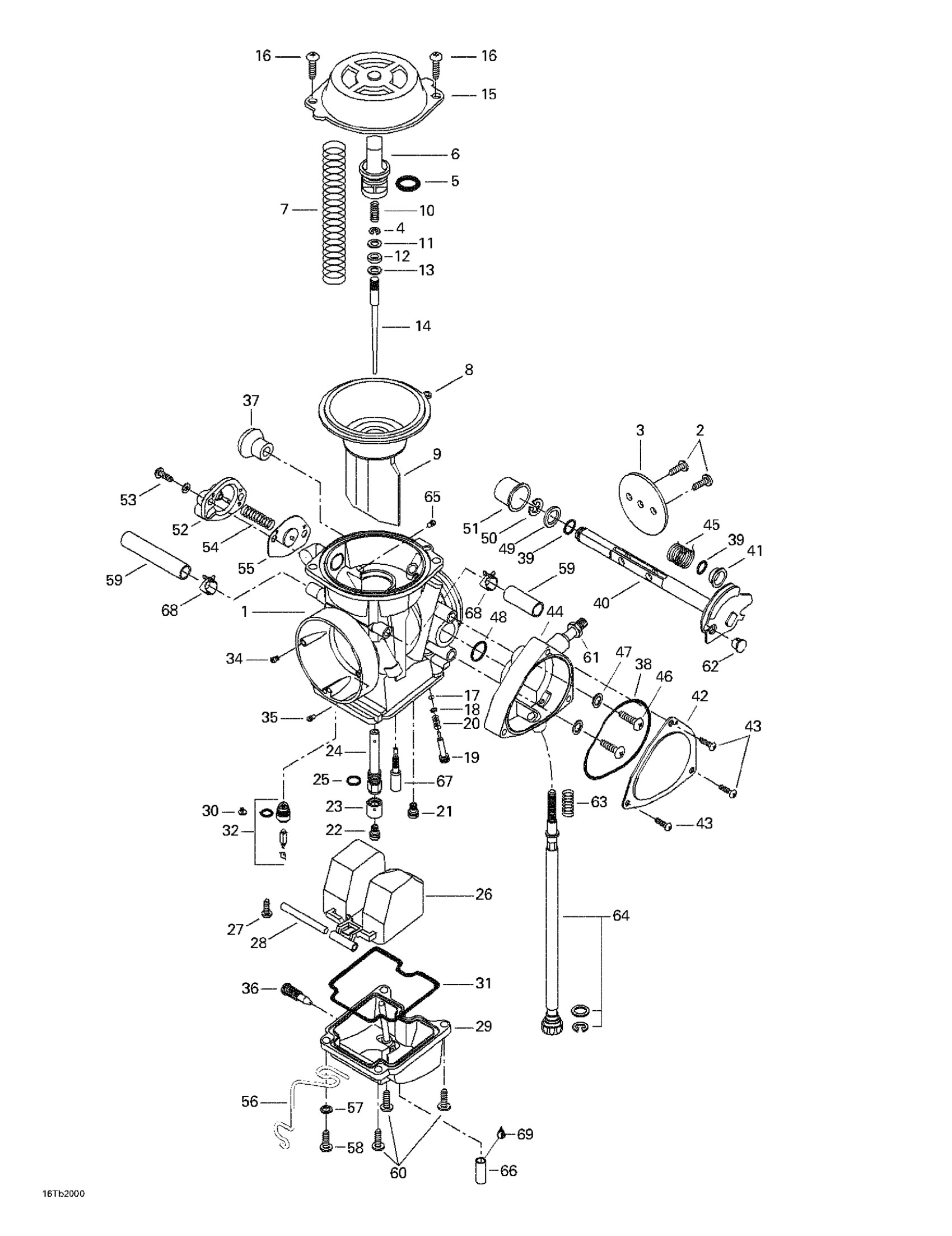

Can-Am DS 650, 7404, 2000 02- Carburetor Diagram

#

Description
Price

-

Carburator Bsr42-4

707200142

Unavailable

1

Mixing Body

707200111

Unavailable

2

Screw

707200062

Unavailable

3

Throttle Valve

707200112

Unavailable

4

E-Ring

404152200

$4.14

5

O-RING - Call your local BRP dealership

270500144

Unavailable

6

HOLDER - Call your local BRP dealership

707200067

Unavailable

7

Spring

707200066

Unavailable

8

DIAPHRAGM - Call your local BRP dealership

707200113

Unavailable

9

Piston Valve

707200114

Unavailable

10

SPRING - Call your local BRP dealership

707200071

Unavailable

11

WASHER - Call your local BRP dealership

707200072

Unavailable

12

RING - Call your local BRP dealership

707200065

Unavailable

13

WASHER - Call your local BRP dealership

707200064

Unavailable

14

NEEDLE J8-6BCY22-60 - Call your local BRP dealership

707200137

Unavailable

15

DIAPHRAGM COVER - Call your local BRP dealership

707200116

Unavailable

16

Screw

404161903

$3.08

17

O-RING - Call your local BRP dealership

404139900

Unavailable

18

WASHER - Call your local BRP dealership

707200018

Unavailable

19

ADJUSTER - Call your local BRP dealership

707200117

Unavailable

20

Spring

707200078

Unavailable

21

Starter Jet 32.5

707200118

Unavailable

22

MAIN JET 165 - Call your local BRP dealership

270500411

Unavailable

23

RING - Call your local BRP dealership

707200079

Unavailable

24

Jet Holder

707200080

Unavailable

25

O-RING - Call your local BRP dealership

270500119

Unavailable

26

FLOAT ASS?Y - Call your local BRP dealership

707200103

Unavailable

27

SCREW - Call your local BRP dealership

404138600

Unavailable

28

Pin

404123400

Unavailable

29

FLOAT BODY ASS?Y - Call your local BRP dealership

707200119

Unavailable

30

SCREW - Call your local BRP dealership

404161861

$3.89

31

O-Ring

707200083

$17.57

32

VALVE-NEEDLE 3.0 - Call your local BRP dealership

707200139

Unavailable

33

Jet-needle

707200121

Unavailable

34

PILOT JET 110 - Call your local BRP dealership

707200122

Unavailable

35

JET 120 - Call your local BRP dealership

707200123

Unavailable

36

SCREW - Call your local BRP dealership

707200024

Unavailable

37

PLUNGER ASS'Y - Call your local BRP dealership

707200124

Unavailable

38

O-RING - Call your local BRP dealership

707200092

Unavailable

39

Sealing Ring

270500065

Unavailable

40

Throttle Shaft

707200125

Unavailable

41

Ring

707200095

Unavailable

42

COVER - Call your local BRP dealership

707200126

Unavailable

43

SCREW - Call your local BRP dealership

707200091

Unavailable

44

Case

707200127

Unavailable

45

Spring

707200128

Unavailable

46

SCREW - Call your local BRP dealership

404161848

$3.89

47

Washer

707200090

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Packing

707200028

Unavailable

50

E-Ring

707200027

$5.21

51

Cap

707200026

Unavailable

52

Cover Ass’y

707200105

Unavailable

53

Screw

404118500

Unavailable

54

SPRING - Call your local BRP dealership

707200129

Unavailable

55

DIAPHRAGM ASS?Y - Call your local BRP dealership

707200106

Unavailable

56

CLIP - Call your local BRP dealership

707200130

Unavailable

57

Washer

707200101

Unavailable

58

Screw

404138700

$4.14

59

Hose

707200131

Unavailable

60

SCREW - Call your local BRP dealership

404159300

Unavailable

61

NUT - Call your local BRP dealership

707200132

Unavailable

62

CABLE GUIDE - Call your local BRP dealership

707200058

Unavailable

63

Spring

404101700

$4.14

64

Cable-Adjuster

707200133

Unavailable

65

AIR JET 1.3 - Call your local BRP dealership

707200134

Unavailable

66

Hose

707200135

Unavailable

67

Jet-Pilot 40

707200136

Unavailable

68

Spring Clamp

414420700

$0.72

69

Glue Tube, Loctite 454, 20 G

413708300

$60.99
