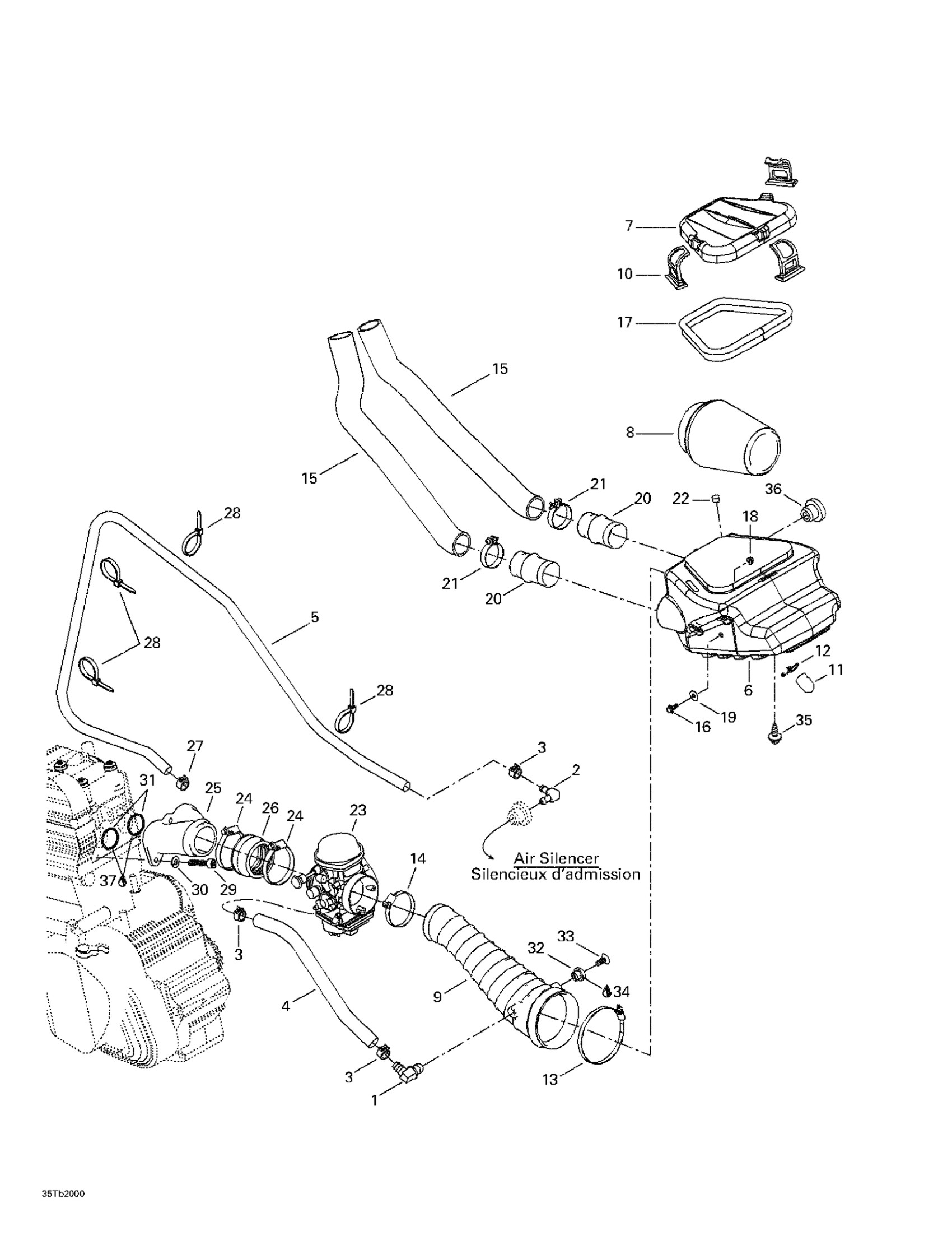

Can-Am DS 650, 7404, 2000 02- Air Intake System Diagram

#

Description
Price

1

Elbow Fitting

414523600

$4.86

2

Lock Nut

250100019

Unavailable

3

Spring Clamp

414655700

$0.72

4

OIL LINE - Call your local BRP dealership

414644800

Unavailable

5

Was 276000001 Hose 12.5 mm

219704394

$51.99

6

Air Silencer

707800021

Unavailable

7

Air Silencer Cover

707800022

Unavailable

8

Air Filter | Includes 3 To 4

707800023

Unavailable

9

Intake Adaptor

707800142

$62.99

10

COVER LATCH - Call your local BRP dealership

708200003

Unavailable

11

Drain Tube

707800006

Unavailable

12

Clip Retainer

707800005

Unavailable

13

Norma Gear Clamp

514052983

$15.89

14

Norma Clamp

293650091

$11.12

15

Hose Vent

291000693

Unavailable

16

Hex. Flange Screw M6 X 20

207662044

$2.00

17

Neoprene Seal 3000Mm Long

219704371

$51.99

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Flat Washer

224060201

$1.26

20

DEFLECTOR - Call your local BRP dealership

707800038

Unavailable

21

GEMI CLAMP - Call your local BRP dealership

293650160

Unavailable

22

Cap

572051500

$5.89

23

Carburator Bsr42-4

707200142

Unavailable

24

Norma Gear Clamp

293650090

$4.54

25

Intake Adaptor

711267230

Unavailable

26

Carburator Flange 52 mm

420267240

$46.49

27

Crimp Clamp, 15.3-706R

293650047

$3.29

28

Tie-Rap 180 mm

414115200

$0.11

29

Socket Head Screw M6 X 25

205062544

$1.15

30

Flat Washer 6 mm

234061410

$1.36

31

O-Ring

293300059

$7.51

32

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

33

Vent Hose

707000131

Unavailable

34

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

35

Mount Dart

293730040

$1.04

36

Tie Wrap 368 mm

293750008

$1.04

37

Grease, Super Lube

293550030

$28.99

38

Intake Adaptor

707800142

$62.99
