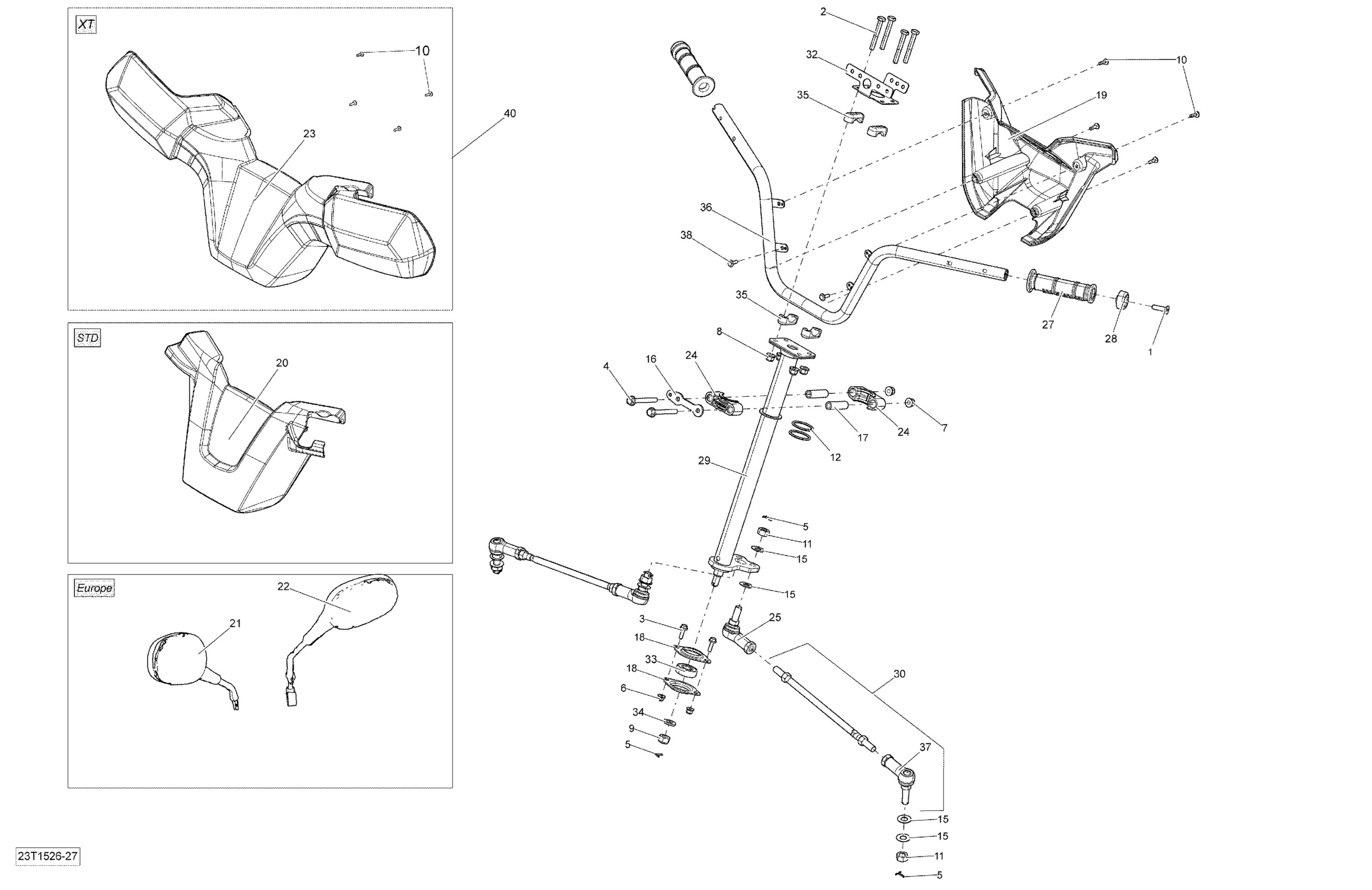

Can-Am Outlander Max 400 EFI, STD, XT (International only), 2015 07- Steering _23T1527 Diagram

SOCKET HEAD SCREW, M8 - Call your local BRP dealership

205883046

Unavailable

Hex. Screw M8 X 60

207086046

$2.85

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Screw M8 X 70

207687044

$7.41

Cotter Pin

211400013

$0.37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Elastic Nut M12

250000047

$1.90

Torx Screw K50 X 16

250000720

$1.69

Nut M12

250100099

$2.09

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

BUSHING - Call your local BRP dealership

709400072

Unavailable

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

$24.49

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Half Bushing

709400471

$14.30

Ball Joint, RH Threads

709400487

$52.99

Handle Grip

709400493

$14.83

END PIECE - Call your local BRP dealership

709400868

Unavailable

Main Tube

709401056

$129.99

Tie Rod Ass'y

709401059

$68.99

Connector Bracket

709400586

Unavailable

Ball Bearing

709400439

$19.49

Flat Washer 12 mm

234021410

$0.72

Steering Support

709400919

$22.49

Steering | STD

709401237

$63.49

LH Ball Joint

709402303

$36.99

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT

703100217

Unavailable
