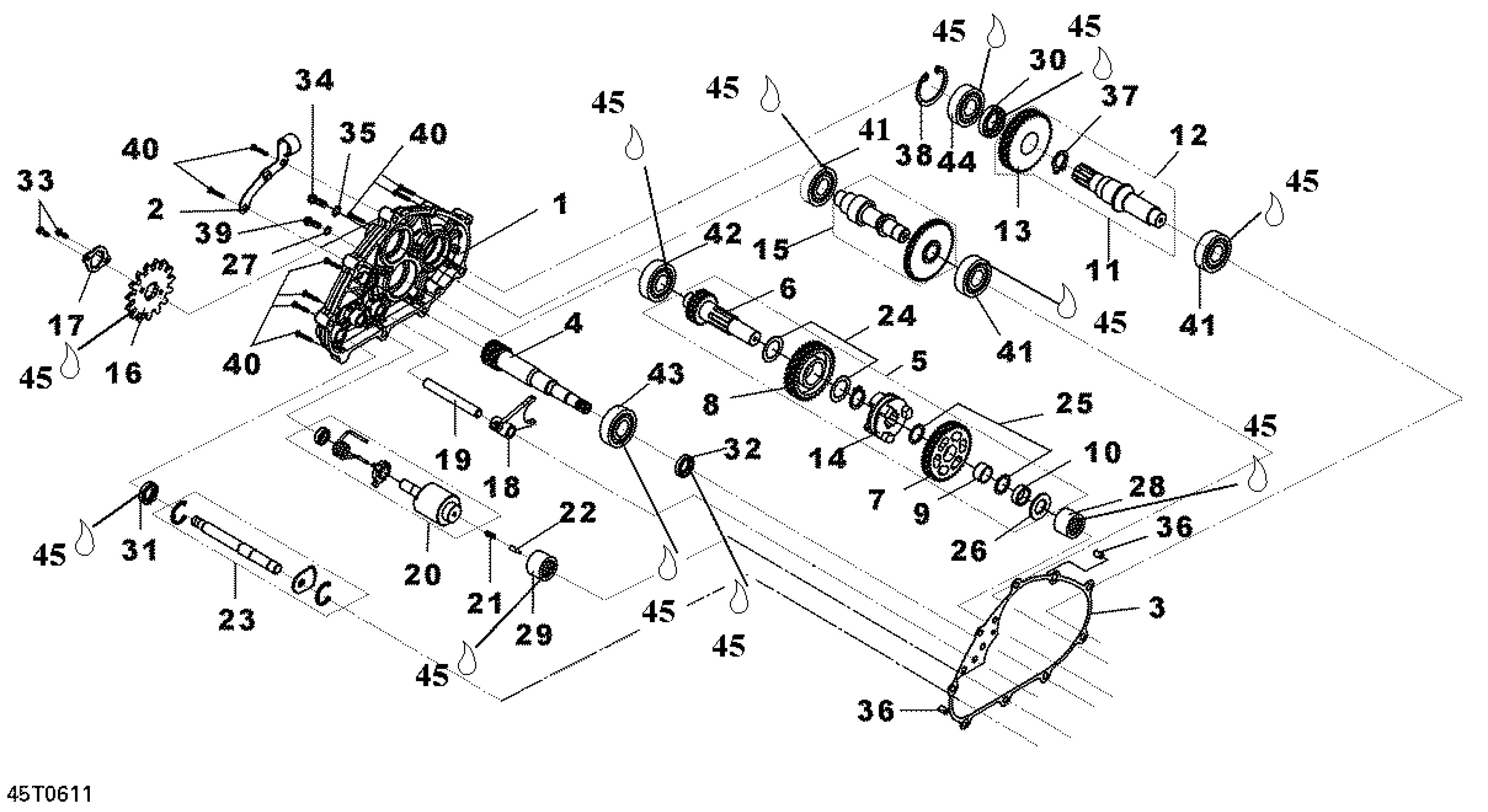

Can-Am DS 250 NA / Inter, 2006 01- Gear Box Diagram

#

Description
Price

1

TRANSMISSION CASE - Call your local BRP dealership

S21200RB1000

Unavailable

2

Inner Cover Stay

S21201RB1000

$13.99

3

Cover Transmission Gasket

S21395RB1000

$8.96

4

Drive Shaft

S23411RB1000

$195.99

5

Counter Shaft Ass'y

S23420RB1000

$409.99

6

Not Available As Spare Parts

NASP/NDPR

Unavailable

7

Not Available As Spare Parts

NASP/NDPR

Unavailable

8

Not Available As Spare Parts

NASP/NDPR

Unavailable

9

Not Available As Spare Parts

NASP/NDPR

Unavailable

10

Not Available As Spare Parts

NASP/NDPR

Unavailable

11

FINAL SHAFT - Call your local BRP dealership

S23430RCA000

Unavailable

12

Not Available As Spare Parts

NASP/NDPR

Unavailable

13

Not Available As Spare Parts

NASP/NDPR

Unavailable

14

Not Available As Spare Parts

NASP/NDPR

Unavailable

15

Reverse Shaft Ass'y

S23500RB1000

$158.99

16

Drive Sprocket

S23800RB1000

$37.99

17

Drive Sprocket Fixing Plate

S23801RB1000

$7.55

18

Shift Fork

S24211RB1000

$36.99

19

Shift Fork Shaft

S24241RB1000

$10.49

20

Shift Drum Ass'y

S24300RB1000

$104.99

21

Gear Indication Spg

S24319R02000

$4.14

22

Gear Indication

S24323R02000

$4.14

23

Gear Shift Spindle Ass'y

S24610RB1000

$37.99

24

Not Available As Spare Parts

NASP/NDPR

Unavailable

25

Not Available As Spare Parts

NASP/NDPR

Unavailable

26

Not Available As Spare Parts

NASP/NDPR

Unavailable

27

Washer

S90474M9Q000

$0.53

28

Needle Bearing

S91003RB1000

$26.49

29

Needle Bearing

S91103X17000

$15.87

30

OIL SEAL - Call your local BRP dealership

S91201RB1000

Unavailable

31

Oil Seal

S91202RB1000

$6.14

32

Oil Seal

S91204HMA000

$13.69

33

Hex. Bolt

S92101060100H

$0.42

34

Drain Plug Screw

S9280012000

$0.77

35

Washer 12 mm

S9410912000

$0.53

36

Dowel Pin

S90703M8Q000

$0.93

37

Not Available As Spare Parts

NASP/NDPR

Unavailable

38

Circlip

S9452052000

$5.50

39

Flanged Bolt M8 X 12

S957010801200

$0.77

40

Flanged Bolt M8 X 40

S957010804000

$0.77

41

Ball Bearing

S961006204010

$14.81

42

Ball Bearing

S961006304010

$19.49

43

Ball Bearing

S961006305300

$20.99

44

Ball Bearing

293350115

$12.11

45

Not Available As Spare Part - Friction Washer

Unavailable
