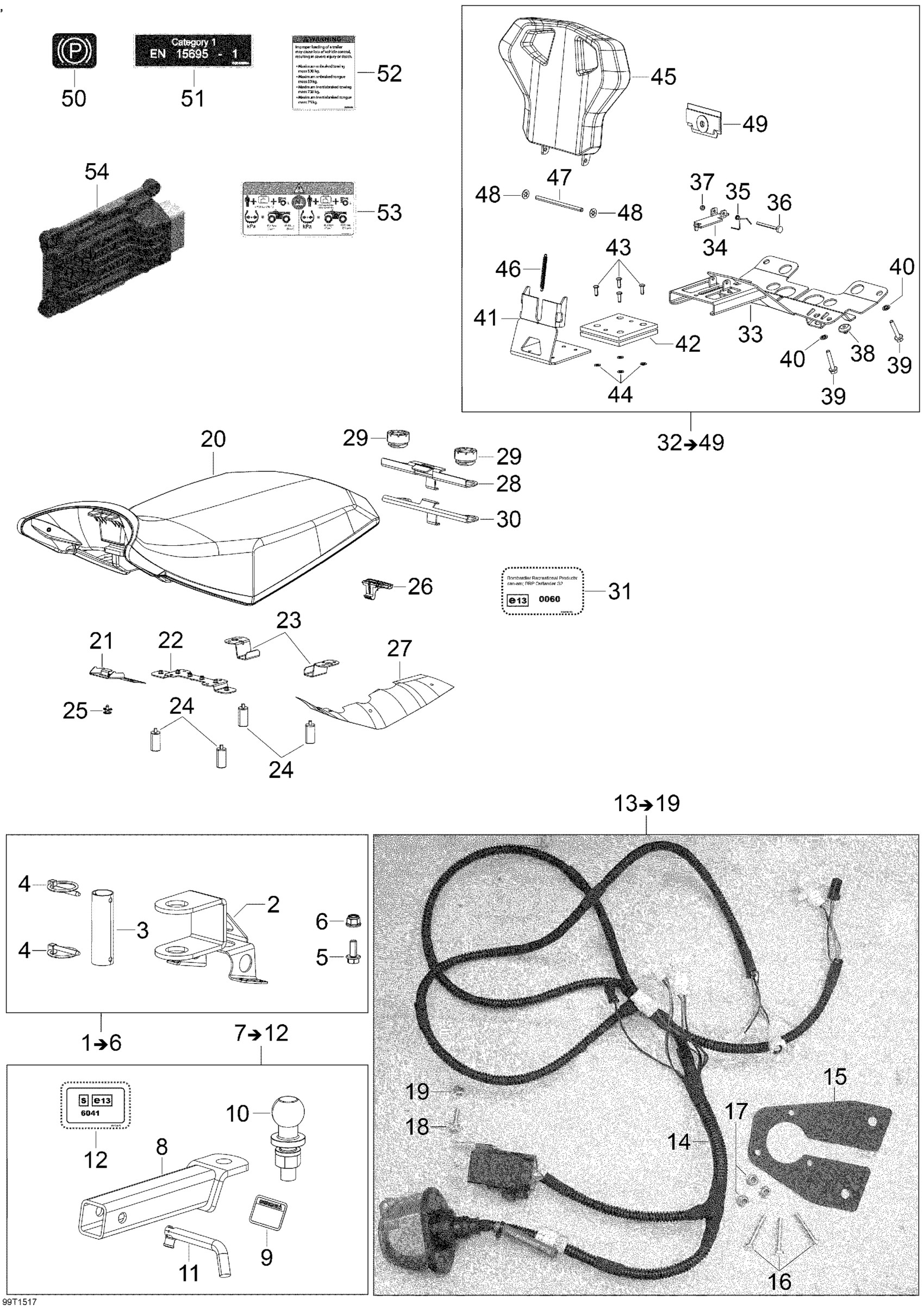

Can-Am Outlander MAX 1000 EFI, 2015 11- T3 Parts _99T1517 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Coupling Device

705205025

Unavailable

3

Pin

605456511

Unavailable

4

Pin

605456518

Unavailable

5

Hex. Flange Screw M8 X 20

207682044

$1.15

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Coupling Ball Ass'y | Includes 7 To 12

605256548

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Hitch Pin

705204490

$52.99

12

Hitch Decal

605456545

Unavailable

13

Trailer Plug Ass'y | Includes 13 To 19

860200927

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Plug Support Plate

605356523

Unavailable

16

Socket Head Screw M5 X 35

205053588

$1.90

17

Hex. Flange Elastic Nut M5

233251414

$1.04

18

Hex. Flange Screw M6 X 16

207661644

$0.74

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

20

Seat Ass'y | Model-T3

708002208

Unavailable

21

Front Bottom Support | Model-T3

605456520

Unavailable

22

Support Central Cushion

510005986

Unavailable

23

Support Rear Cushion

510005988

Unavailable

24

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

25

Rivet | Model-T3

293150067

$2.89

26

Latch

708000909

$6.29

27

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

28

Support Rear Seat

705204621

Unavailable

29

Bumper Rubber

708000760

$10.49

30

Seat Rear Raiser

705204655

Unavailable

31

Decal

605456593

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Passenger Seat Bracket

708001850

Unavailable

34

Backrest Lever Plate

605456510

Unavailable

35

Spring

605456536

Unavailable

36

Screw M4x50 DIN 933 8.8 Zn(1=50pcs)

40203

Unavailable

37

Locknut M4 DIN985 m8 Zne(1=10pcs)

33008

Unavailable

38

Plug

605452114

$9.19

39

HEX. FLANGED SCREW M6 X 35 - Call your local BRP dealership

207663534

Unavailable

40

Push Nut

732610072

$2.19

41

Backrest Hinge Plate

605456503

Unavailable

42

Slider Plate

605456533

Unavailable

43

Rivet

36005

$2.11

44

Flat Washer M5

234051410

$0.53

45

Backrest | Model-T3

708001794

Unavailable

46

Spring

605456539

Unavailable

47

Pin

605456662

Unavailable

48

Safety Washer

36084

$1.70

49

Backrest Pad

605356612

Unavailable

50

P-Decal, T3 | Package-XTT3

605356244

Unavailable

51

Cabin Decal, T3 | Package-XTT3

605456594

Unavailable

52

Warning Decal

605356505

Unavailable

53

Warning Decal, Tire Pressure

704905992

Unavailable

54

ECU Module | T3

420464030

$1,289.99
