Description

Price

100a

LH Upper Frame

705208901

$144.99

100b

Dart Clip

293730080

$1.15

100c

Panel Nut M6 X 1.0

250100208

$1.46

100d

LH Holder (support)

705013415

$4.19

100f

Torx Truss PT K40 x 12

250001131

$2.11

100g

Low Beam Support Ass'y

705207855

$20.99

100h

Torx Screw M6 X 20

250000722

$1.68

100j

LH Upper Front Acoustic Foam

705013944

$4.39

100k

LH Upper Rear Acoustic Foam

705013946

$19.49

100m

RH Upper Frame

705208902

$144.99

100n

Dart Clip

293730080

$1.15

100p

Panel Nut M6 X 1.0

250100208

$1.46

100q

RH Holder (support)

705013416

$4.19

100r

Torx Truss PT K40 x 12

250001131

$2.11

100s

Low Beam Support Ass'y

705207855

$20.99

100t

Torx Screw M6 X 20

250000722

$1.68

100u

RH Upper Front Acoustic Foam

705013945

$5.49

100v

RH Upper Rear Acoustic Foam

705013947

$19.49

100w

Hex. Flange Screw M6 X 20

207662054

$1.01

100x

Hex. Flange Elastic Nut M6

233261466

$2.00

100y

Tank Trim

705016524

$214.99

100z

Tuflok Plastic Rivet

293150230

$1.47

100aa

Connector Support

515179692

$2.09

100ab

Storage Compartment Front

705205819

$109.99

100ac

Neoprene Seal Joint

708200794

$15.99

100ad

Latch Lid Ass'y

705015497

$154.99

100af

Torx Truss PT K40 x 12

250001131

$2.11

100ag

Acoustic Foam, Storage Compartment

705013943

$4.39

100ah

Center Front Fairing

705013110

$20.99

100aj

Driver Seat

708003354

$244.99

100ak1

Upper Rear Fender

705013197

$204.99

100ak2

LH Cover

705013619

$6.99

100ak3

RH Cover

705013620

$6.99

100ak4

Passenger Chassis Module Kit

219401169

$405.99

100ak4b

Warning Decal, Passenger

704907499

Unavailable

100ak5

Torx Truss M8 X 25

250000874

$2.11

100ak6

Torx-truss M/s M6 X 10

250000995

$4.44

100ak7

Rivet, Plastic

293730084

$4.39

100am

Large Shoulder Nut M6

705014119

$6.14

100an

Torx Truss Hex. Screw M6X35, Nylon Patch

250000867

$2.11

100ap

Torx Truss Screw M6 X 25

250000807

$2.11

100aq

Stainless Steel Flat Washer

234062670

$2.11

100ar

Torx Truss Screw M6 X 16

250000721

$1.69

100as

Deep Black, Front Cover | Includes 100at to 100at2

705015113

$80.99

100as2

Decal Aesthetic Notice

704907056

Unavailable

100at

Fuel Door Filler Ass'y | Includes 100au to 100au3

705017593

$51.99

100at2

Fuel Door Filler

705017575

$51.99

100at3

Torx-Truss Screw K40 X 10

250001034

$0.98

100au

Upper Fairing

705017574

$38.99

710

Tuflok Plastic Rivet

293150230

$1.47

720

Torx-Truss Screw K40 X 10

250001034

$0.98

740

Pivot

705013475

$1.49

750

Torx Truss PT K40 x 12

250001131

$2.11

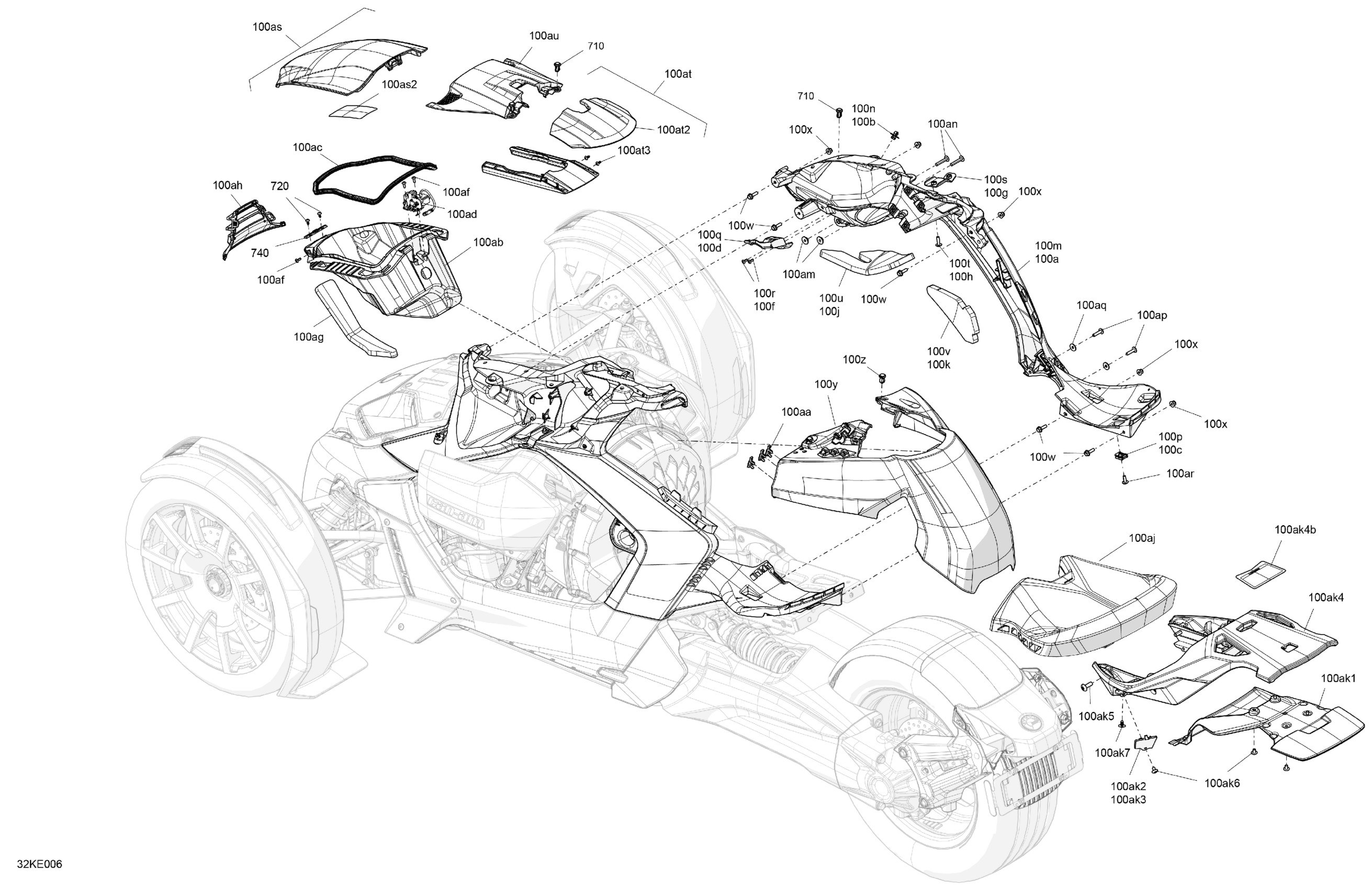

Can-Am International - RYKER - SPORT - 900 ACE - F5SB - Deep Black, 2025 07- Body - Upper Section Diagram

LH Upper Frame

Dart Clip

Panel Nut M6 X 1.0

LH Holder (support)

Torx Truss PT K40 x 12

Low Beam Support Ass'y

Torx Screw M6 X 20

LH Upper Front Acoustic Foam

LH Upper Rear Acoustic Foam

RH Upper Frame

Dart Clip

Panel Nut M6 X 1.0

RH Holder (support)

Torx Truss PT K40 x 12

Low Beam Support Ass'y

Torx Screw M6 X 20

RH Upper Front Acoustic Foam

RH Upper Rear Acoustic Foam

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6

Tank Trim

Tuflok Plastic Rivet

Connector Support

Storage Compartment Front

Neoprene Seal Joint

Latch Lid Ass'y

Torx Truss PT K40 x 12

Acoustic Foam, Storage Compartment

Center Front Fairing

Driver Seat

Upper Rear Fender

LH Cover

RH Cover

Passenger Chassis Module Kit

Warning Decal, Passenger

Torx Truss M8 X 25

Torx-truss M/s M6 X 10

Rivet, Plastic

Large Shoulder Nut M6

Torx Truss Hex. Screw M6X35, Nylon Patch

Torx Truss Screw M6 X 25

Stainless Steel Flat Washer

Torx Truss Screw M6 X 16

Deep Black, Front Cover | Includes 100at to 100at2

Decal Aesthetic Notice

Fuel Door Filler Ass'y | Includes 100au to 100au3

Fuel Door Filler

Torx-Truss Screw K40 X 10

Upper Fairing

Tuflok Plastic Rivet

Torx-Truss Screw K40 X 10

Pivot

Torx Truss PT K40 x 12
