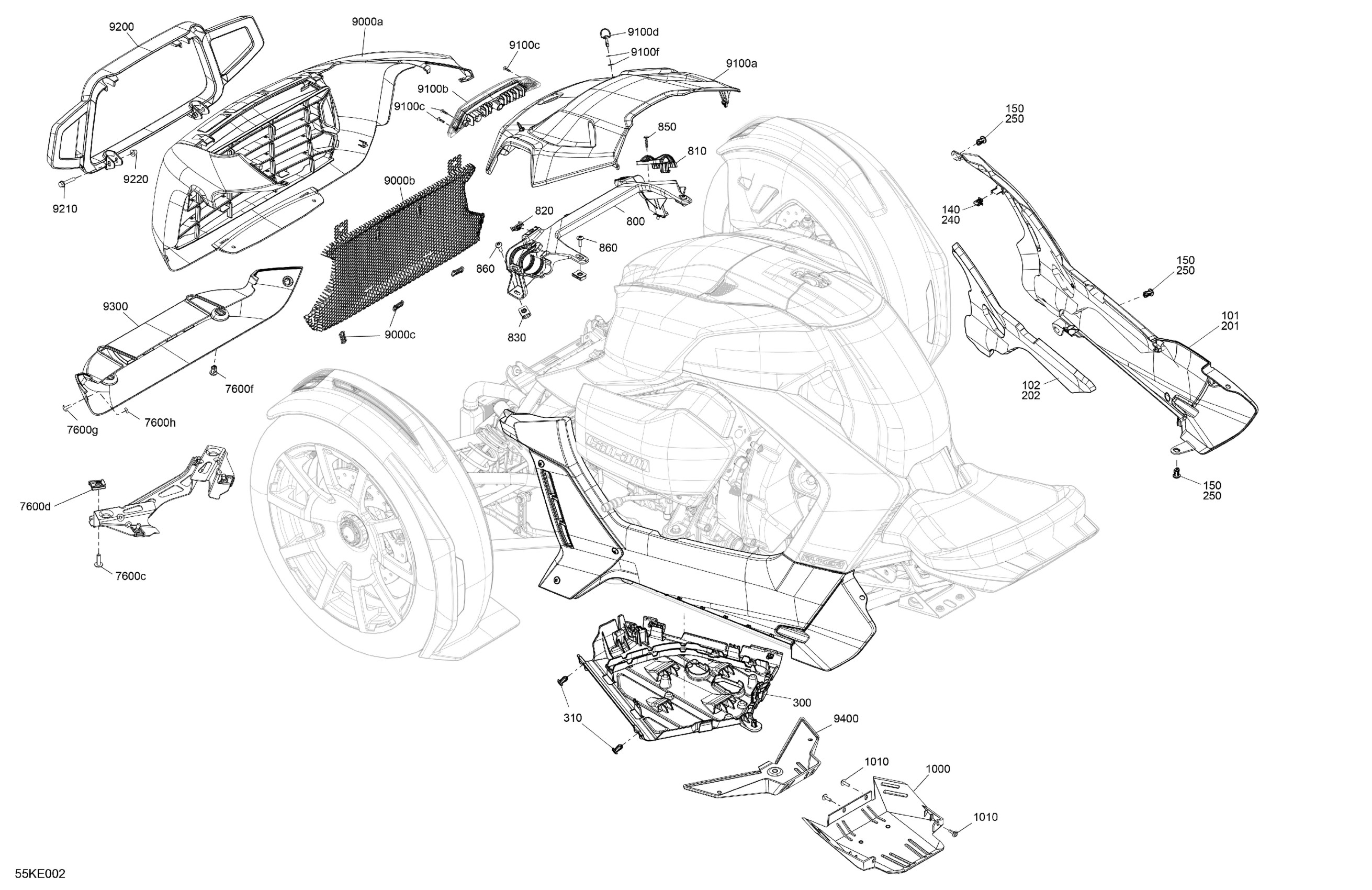

Can-Am North America - RYKER - RALLY - 900 ACE - F3SC - CARB - Deep Black, 2025 07- Body - Lower Section Diagram

Description

Price

7600c

Torx Screw M6 X 20

250000722

$1.68

7600d

Panel Nut M6 X 1.0

250100208

$1.46

7600f

Tuflok Plastic Rivet

293150230

$1.47

7600g

Torx Truss Head Screw W Nylon M5X14

250001059

$2.11

7600h

Square Nut M5 X 0.8

232852411

$1.47

101

LH Rocker Panel Kit

219800524

$73.99

102

Acoustic Foam, LH rocker

705013940

$19.49

140

Edge Clip

517302785

$0.88

150

Tuflok Plastic Rivet

293150230

$1.47

201

RH Rocker Panel Kit

219800525

$71.99

202

Acoustic Foam

705013941

$19.49

240

Edge Clip

517302785

$0.88

250

Tuflok Plastic Rivet

293150230

$1.47

300

Skid Plate

705012364

$51.99

310

Tuflok Plastic Rivet

293150230

$1.47

800

Front Tank Support Shock Absorber

705016204

$33.99

810

Ext Tank Support Shock Absorber

706004531

$4.19

820

Specialized Nut

705016560

$4.59

830

Panel Nut M6 X 1.0

250100208

$1.46

850

Torx Screw Truss Head K50X20 T20

250000760

$2.11

860

Torx Screw M6 X 20

250000722

$1.68

1000

Rear Molded Skid Plate

705212406

$29.99

1010

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

9000a

Deep Black, Front Fascia

705013345

$98.99

9000b

Protective Grille

705018411

$58.99

9000c

Flat Clip

705004838

$7.73

9100a

Hood

705016171

$80.99

9100b

Front Lower LED Light Ass'y

219400991

$329.99

9100c

Hex. Flange Screw K40 X 16

250001123

$2.11

9100d

Quarter Turn Fastener

705016561

$18.99

9100f

Washer

705016562

$0.58

9200

Central Bumper Trim

705016169

$159.99

9210

Hex. Flange Screw M6 X 35

207663554

$2.11

9220

Hex. Flange Elastic Nut M6

233261466

$2.00

9300

Lower Bumper Trim

705016170

$24.49

9400

Front Molded Skid Plate

705212405

$29.99
