Description

Price

136

Front Differential | Includes 8 to 31

703500907

$1,579.99

136

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

137

Drain Plug | After May 30, 2014

705501885

$14.22

137

Drain Plug | 4X4

705500894

$11.49

138

Screw | 4X4

705401601

$10.49

139

Screw | After May 30, 2014

705401602

$6.19

140

Nut | 4X4

705401603

$35.99

141

Shim | 4X4

705401604

$57.99

142

Ball Bearing | After May 30, 2014

705401605

$31.99

142

Ball Bearing | 4X4

705500260

$31.99

143

Ball Bearing | 4X4

705401606

$51.99

144

Ball Bearing | After May 30, 2014

705402848

$49.99

144

Needle Bearing | 4X4

705500261

$19.99

145

Ball Bearing | After May 30, 2014

705401608

$51.99

145

Ball Bearing | 4X4

293350044

$31.99

146

Front Pinion Cover | After May 30, 2014

705401792

$149.99

146

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

147

Front Cover | After May 30, 2014

705401610

$149.99

147

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

148

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

148

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

149

Gear 36 Teeth | After May 30, 2014

705401612

$409.99

150

Vent Valve | After May 30, 2014

705401613

$16.49

150

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

151a

Differential | Package-STD

705402184

$977.49

151a

Differential | Package-DPS, XT, XTP

705402182

$1,128.49

151b

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

151b

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

152

Oil Seal | After May 30, 2014

705401615

$19.49

152

Oil Seal | 4X4

705401481

$19.49

153

Seal | After May 30, 2014

705401616

$14.28

153

Seal | 4X4

705500265

$18.76

154

O'Ring | After May 30, 2014

705401617

$7.20

154

O-Ring | 4X4

705500267

$7.65

155

Gasket | 4X4

705401618

$18.49

156

Pinion Gear Shim 1.67 mm

705502061

$18.99

157

Pinion Gear Shim

705501162

$16.49

158

Shim | 4X4

705401604

$57.99

159

Shim | 4X4

705401604

$57.99

160

Flat Washer M10 | 4X4

250200014

$1.49

160

Flat Washer M12

250200102

$2.11

161

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

161

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

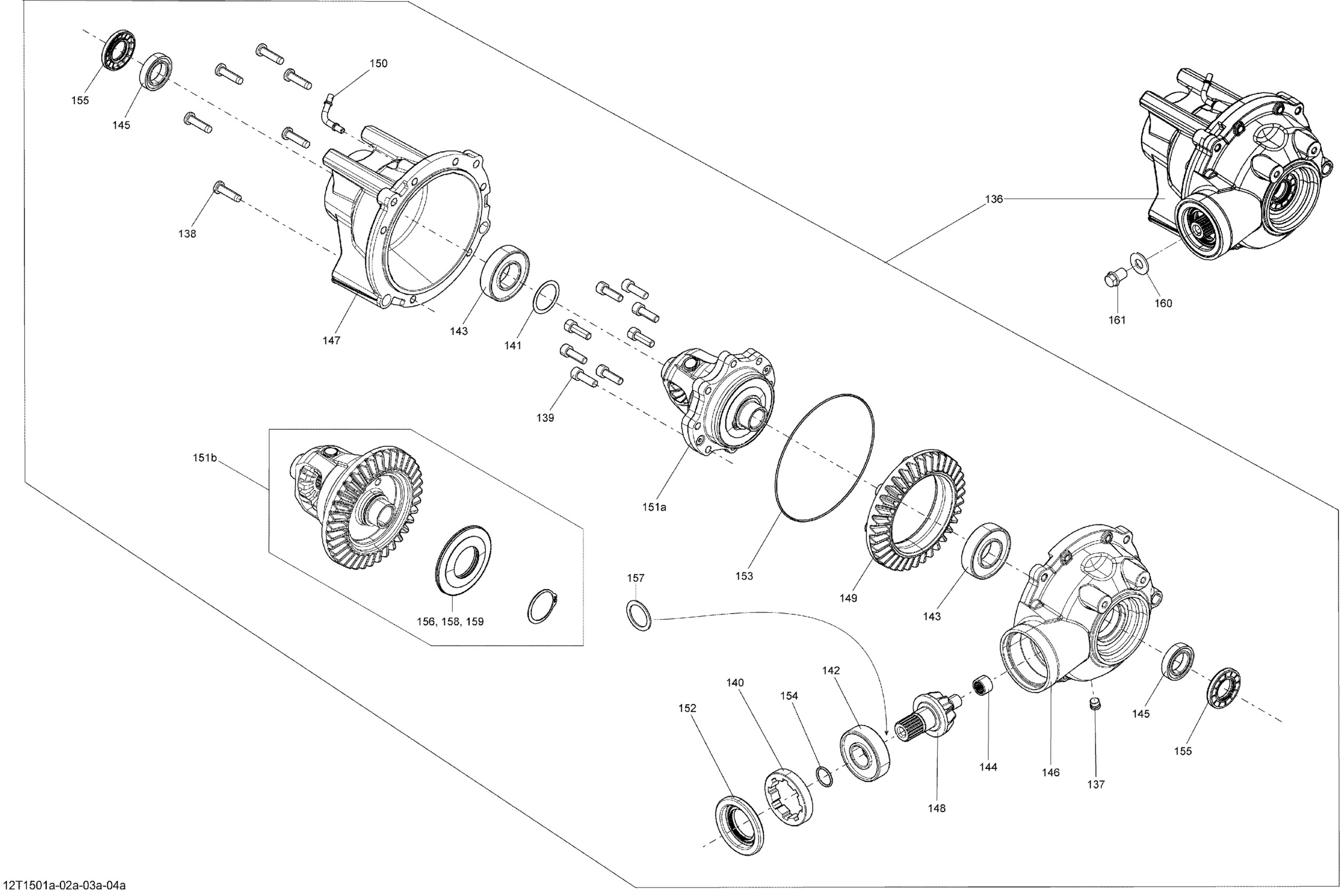

Can-Am Outlander L MAX 450 EFI, 2015 07- Drive System, Front _Differential_12T1502a Diagram

Front Differential | Includes 8 to 31

Front Differential | XT, XT-P, Includes 9 to 29

Drain Plug | After May 30, 2014

Drain Plug | 4X4

Screw | 4X4

Screw | After May 30, 2014

Nut | 4X4

Shim | 4X4

Ball Bearing | After May 30, 2014

Ball Bearing | 4X4

Ball Bearing | 4X4

Ball Bearing | After May 30, 2014

Needle Bearing | 4X4

Ball Bearing | After May 30, 2014

Ball Bearing | 4X4

Front Pinion Cover | After May 30, 2014

FRONT COVER - Call your local BRP dealership

Front Cover | After May 30, 2014

FRONT COVER - Call your local BRP dealership

Pinion 10 Teeth | After May 30, 2014

10 TEETH PINION - Call your local BRP dealership

Gear 36 Teeth | After May 30, 2014

Vent Valve | After May 30, 2014

VENT VALVE - Call your local BRP dealership | 4X4

Differential | Package-STD

Differential | Package-DPS, XT, XTP

Ens Differentiel*Differential Kit | 4X4

DIFFERENTIAL KIT - Call your local BRP dealership

Oil Seal | After May 30, 2014

Oil Seal | 4X4

Seal | After May 30, 2014

Seal | 4X4

O'Ring | After May 30, 2014

O-Ring | 4X4

Gasket | 4X4

Pinion Gear Shim 1.67 mm

Pinion Gear Shim

Shim | 4X4

Shim | 4X4

Flat Washer M10 | 4X4

Flat Washer M12

Hex. Flange Screw M10 X 16 S.GRIP

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
