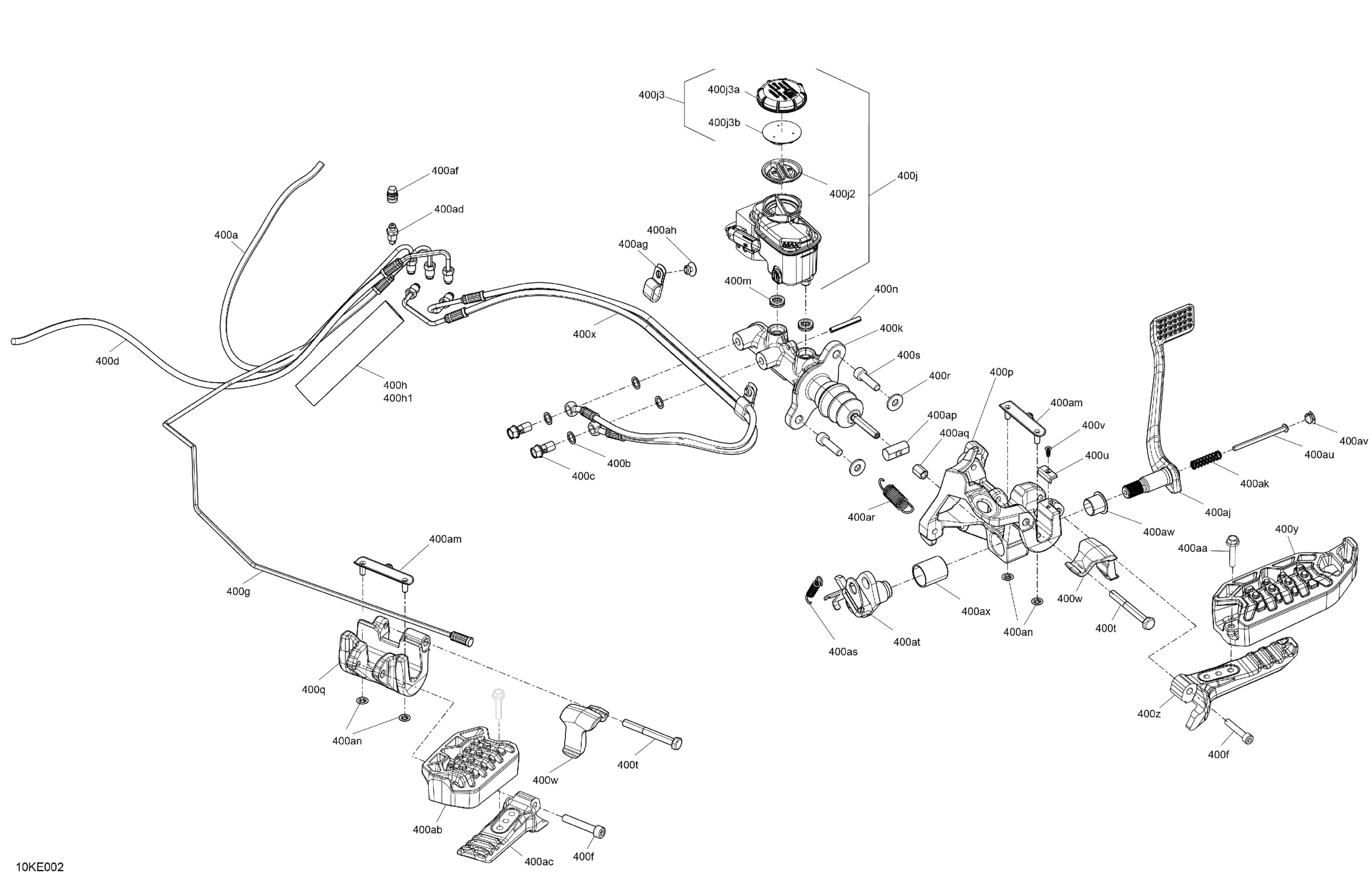

Can-Am North America - RYKER - RALLY - 900 ACE - F3SC - CARB - Deep Black, 2025 03- Mechanic - Brakes Diagram

Description

Price

400a

RH Front Caliper Hose

705601559

$78.49

400b

Copper Washer

705601628

$4.44

400c

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

400d

LH Front Caliper Hose

705601560

$78.49

400f

Socket Head Screw M8 x 45, Scotch Grip

250000988

$1.37

400g

Rear Caliper Hose

705601561

$78.49

400h

Tubing 25 MM 1000MM Long

219704402

$15.99

400h1

Tubing 25 MM 1000MM Long

219704402

$15.99

400j

Brake Fluid Reservoir Ass'y | Included 400j to 400j3

705601918

$70.99

400j2

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

400j3

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

400j3a

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

400j3b

Brake Fluid Cap | Included 400j3 to 400j3b

705601943

$2.00

400k

Master Cylinder Tandem Brake

705601580

$184.99

400m

Seal Master Cylinder

705601715

$0.95

400n

Spring Pin 5.3MM x 40MM

705601716

$1.16

400p

RH Caliper Slider

705013422

$70.99

400q

LH Caliper Slider

705013423

$70.99

400r

Washer

506151245

$0.93

400s

Screw-Socket Cap S.Grip M8 X 30

250001117

$1.90

400t

Hex. Screw M8 X 70

207087044

$2.19

400u

Sliding Block

705017928

$0.57

400v

Torx Cutting Screw, M4 X 10

250000453

$3.89

400w

Slider Clamp

705011404

$40.99

400x

Hose Master Cylinder

705601562

$99.49

400y

Deep Black, RH Footrest

705016550

$99.99

400z

RH Footrest Support

705016234

$51.99

400aa

Hex. Flange Screw M6 X 30

250001211

$3.91

400ab

Deep Black, LH Footrest

705016549

$99.99

400ac

LH Footrest Support

705016230

$51.99

400ad

Bleeder Screw

705600502

$11.11

400af

Bleeder Bolt Cap

705601190

$4.44

400ag

Open Clamp

515175507

$1.89

400ah

Pop Rivet 3/16"

390406500

$0.88

400aj

Deep Black, Brake Pedal

705602171

$104.99

400ak

Brake Pedal Spring

705601583

$2.09

400am

Footrest Pad Ass'y

705017927

$4.09

400an

Pressure Nut

250100163

$0.98

400ap

Socket Push Rod

705601585

$14.99

400aq

Jam Nut M8

705601586

$7.30

400ar

Spring

705006533

$18.49

400as

Compression Spring

705602243

$3.17

400at

Rocker Ass'y

705601600

$35.99

400au

Hex. Screw M5 X 70

205457044

$4.21

400av

Black, Dart 10 mm

293730060

$4.55

400aw

Plain Bearing DIA. 18 MM, Plastic

709402254

$2.11

400ax

Plain Bearing DIA. 24 MM, Plastic

709402253

$5.71
